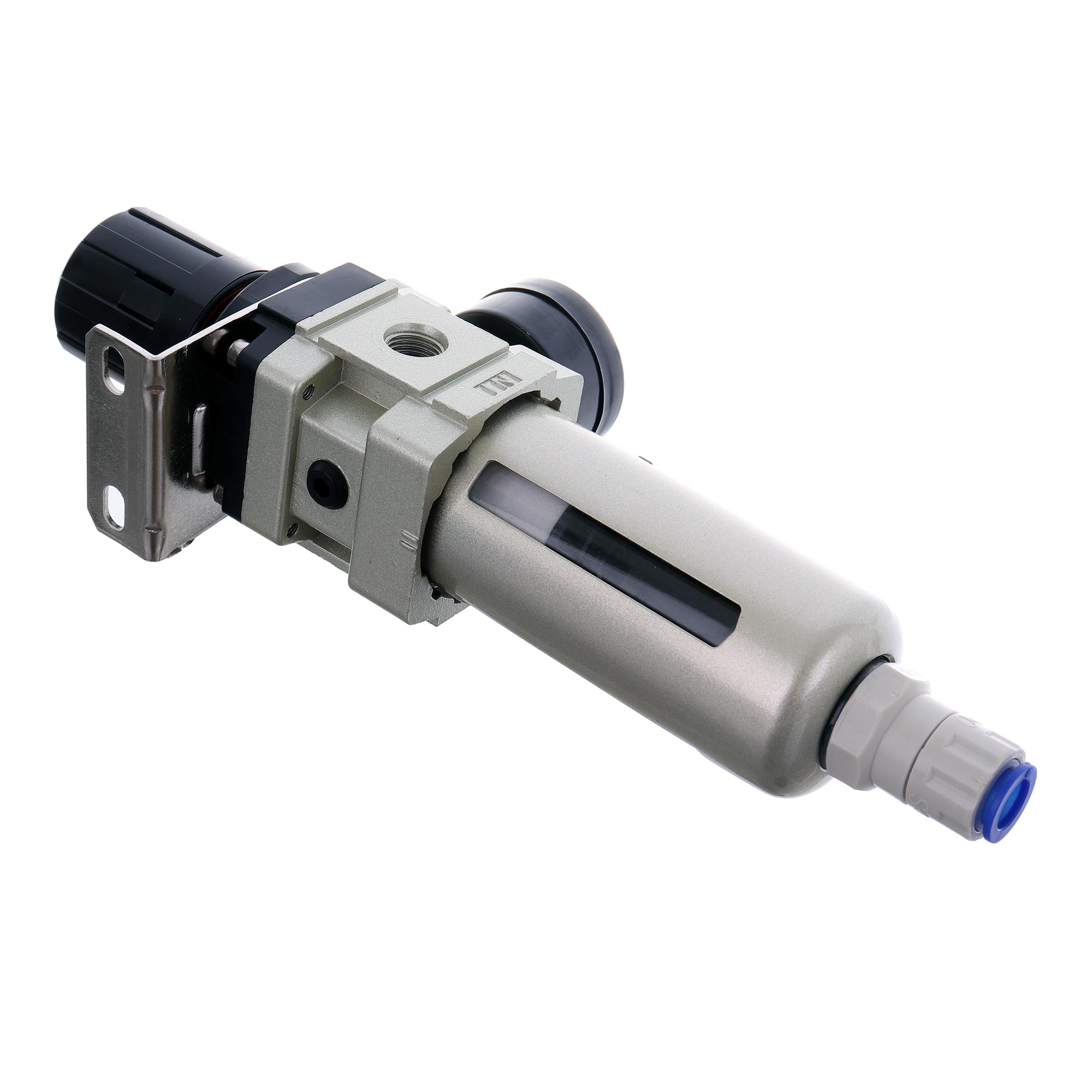

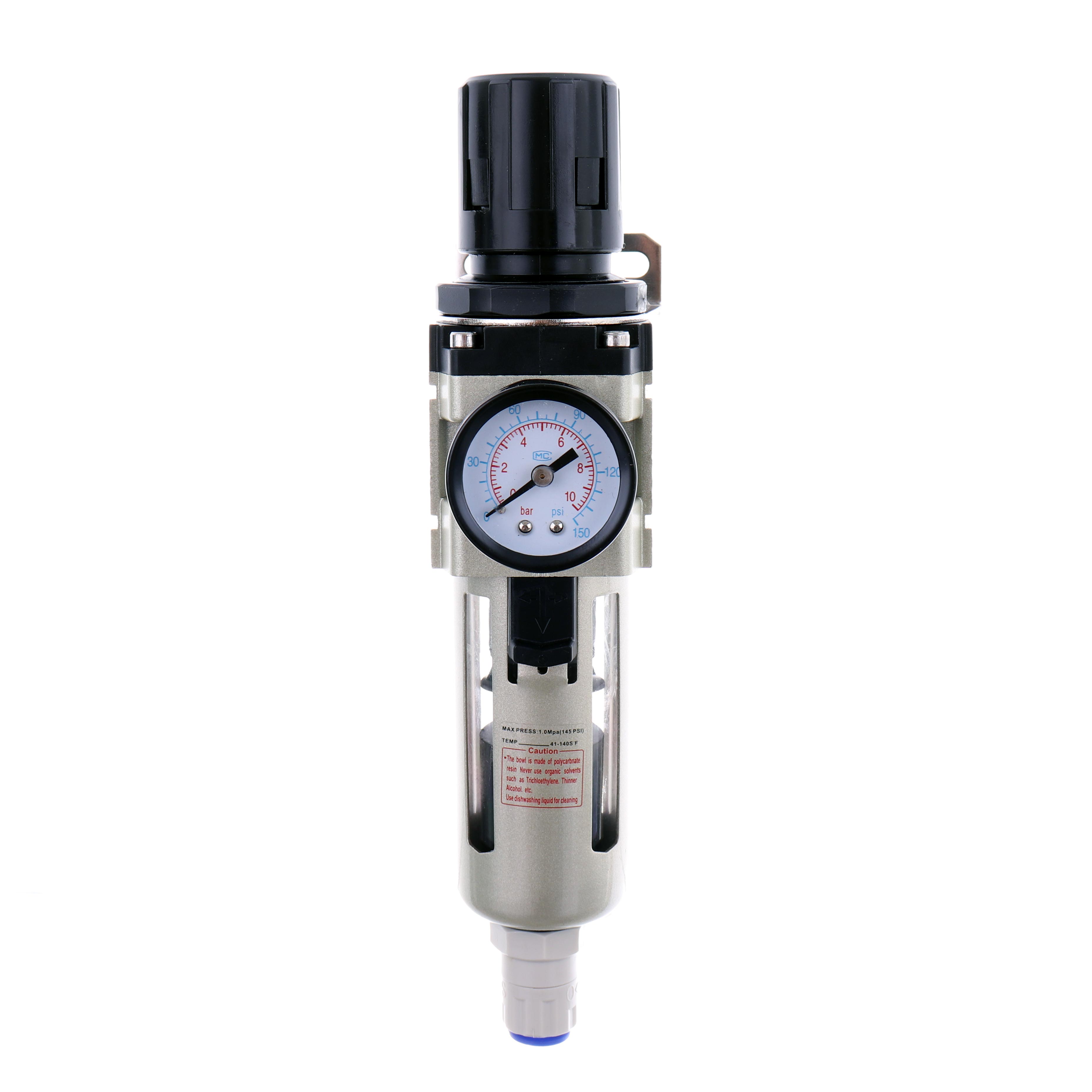

POW filter + REDUK.aw3000-02d 1/4 "(CH) 20um Auto Drain

Air reducer with 1/4 inch filter for AW3000-02D compressor - 20M with auto trigger

The filter is used to dry air. It is an irreplaceable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains during painting with paint pistols, snake damage, etc. It also separates oil and other contaminants.

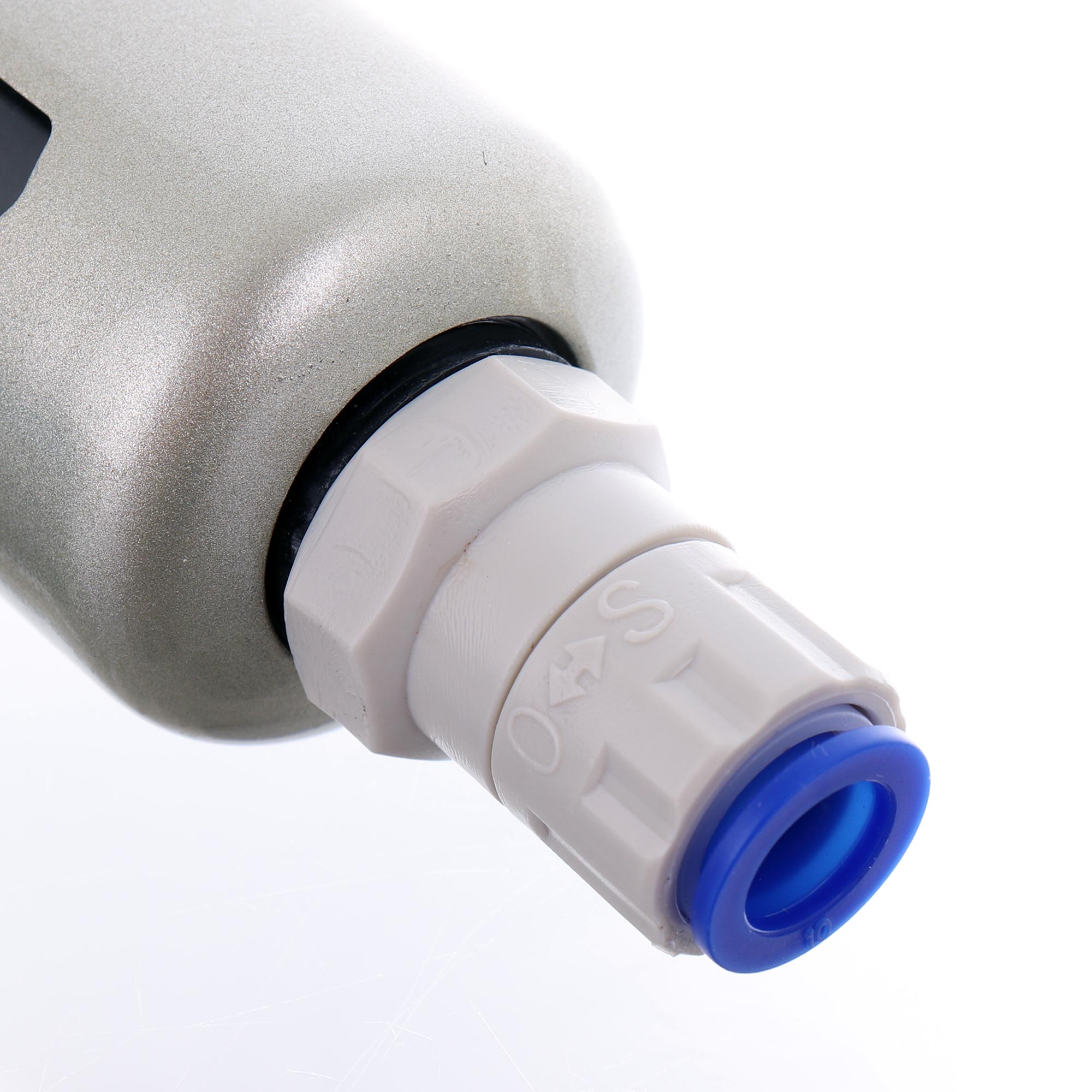

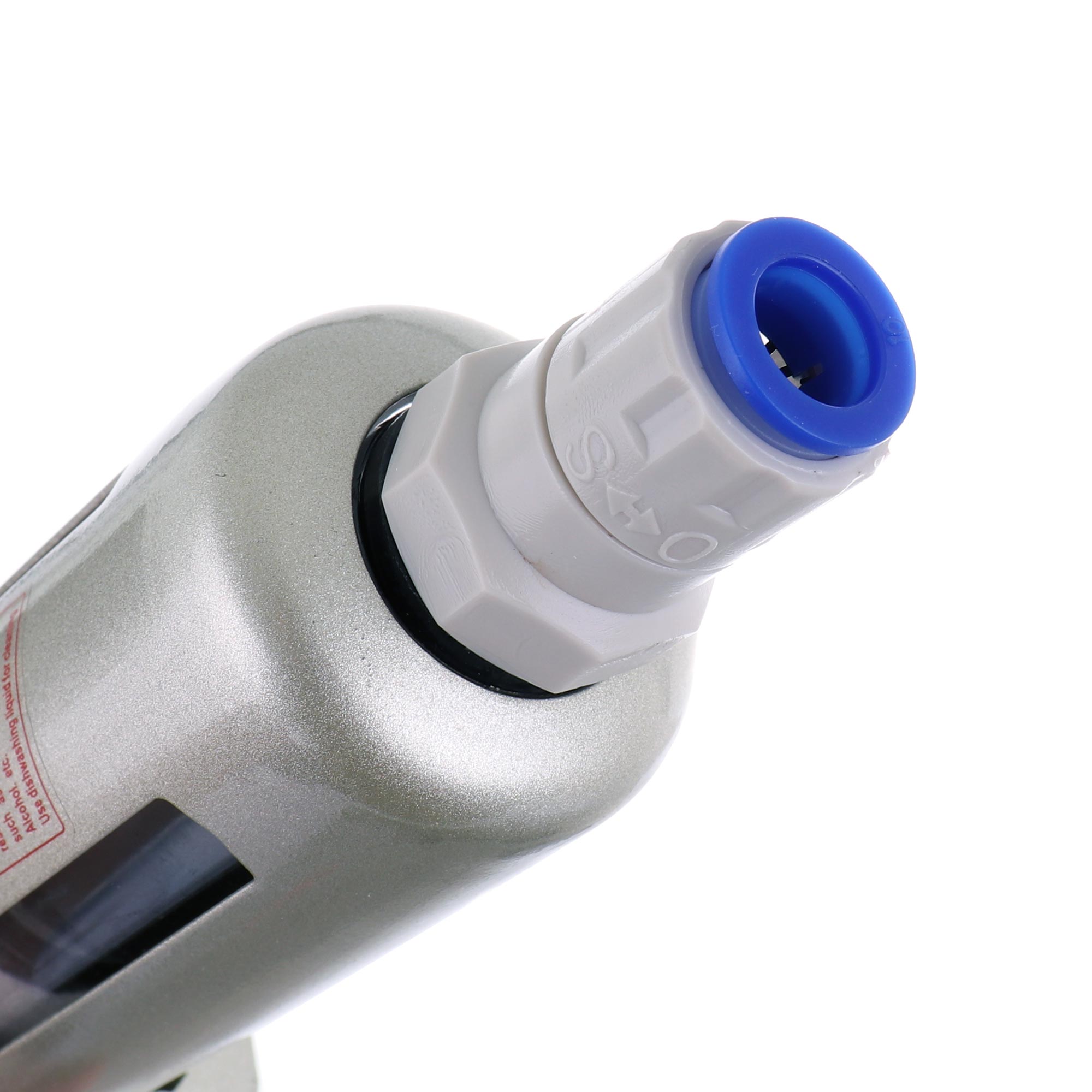

When the level of separated water reaches the appropriate height of the tank automatically empties from the water. Just connect the hose (10mm) and immerse in a larger tank. Thanks to this, we do not have to remember to empty.

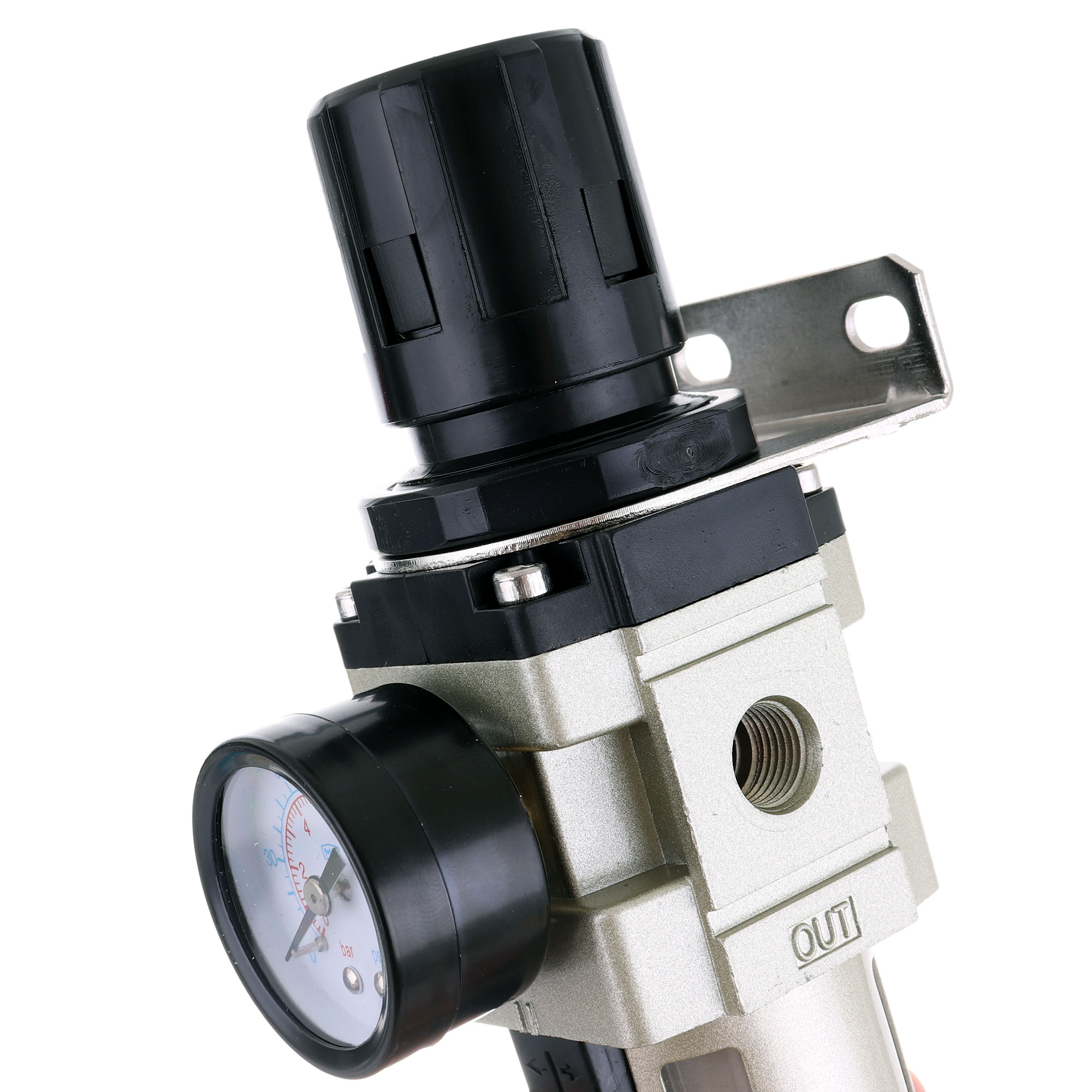

The advantage of the reducer is a good and durable design, a clear manometer, a unscrewed hanger for screwing the reductor on the wall, controller lock (up - bottom). It applies in 1/4 "and is an essential element.

Technical data:

• The amount of the set is approximately: 210 mm
• Width: 55 mm
• Regulation range: 0.5 to 8.3 bar
• Thread: 1/4 "(12 mm)
• Maximum pressure: 14.7 bar
• Maximum flow: 2000 l / min
• Filtration0.04 mm
• Tank capacity: 20 ml
• Working temperature: up to 60 third party
