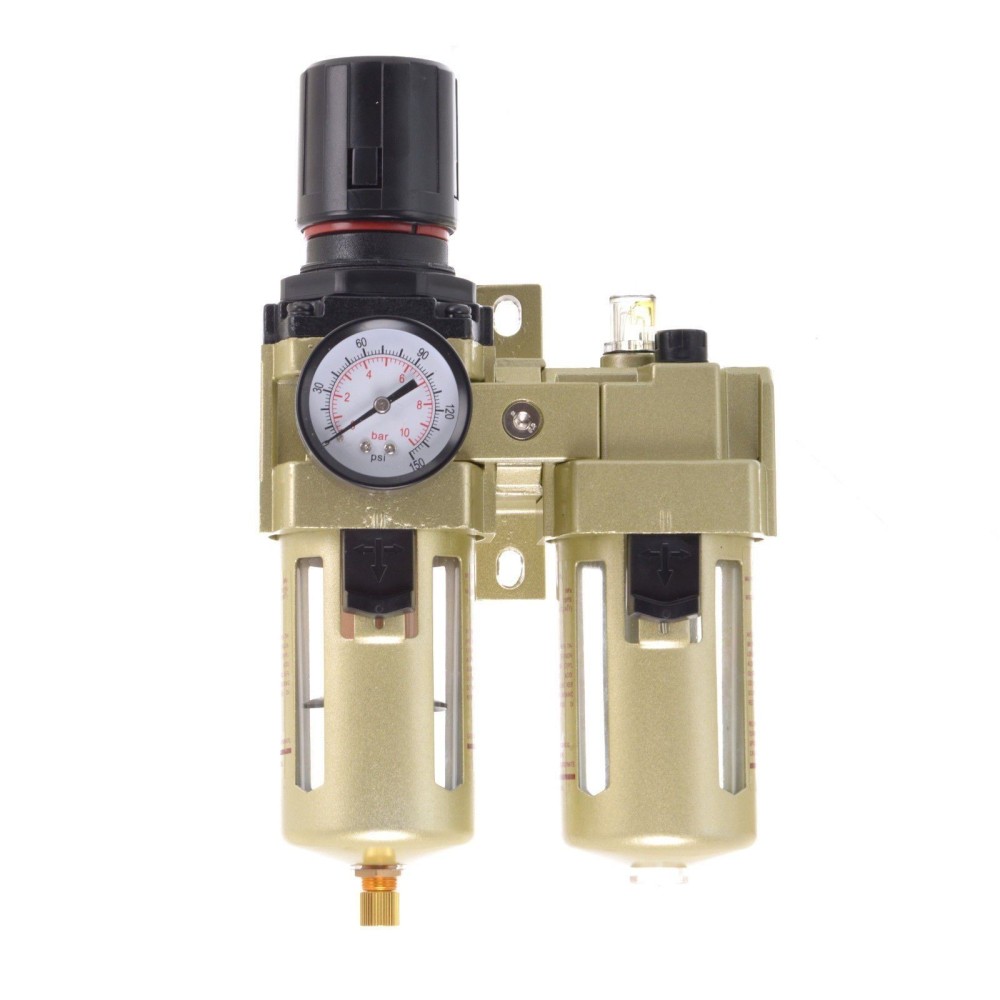

POW filter + RE + NA.AC4010-06 3/4 "
Filter, Reducer, Naolejacz, Air preparation unit 3/4 "AC4010-06
The presented set is used for comprehensive air preparation for operation with pneumatic tools, starting from determining the operation pressure by removing water vapor and impurities to supplying the oil with an oil mist necessary for the proper functioning of pneumatic tools. The air filter includes a filter (dryer), reducer with pressure indicating pressure gauge and automatic naolejam. The whole fits compressors with 3/4 "output is about 31mm.
Technical data:
- Height: 260 mm
- Width: 155mm
- Filtration: 40 microns
- Threads on both sides: 3/4 "(about 24mm internat)
- Working / maximum pressure: 9.7 bar / 14.7 bar
- Regulation range: 0.5-8.3 bar
- Maximum flow: 6000 l / min
- Tank capacity: 45 ml
- Adjusting the amount of oil fed: Yes
- Hitch for screwing or hanging: Yes
- Manometer. Unit: 0-10 bar
Specific References
- EAN13
- 5902553713374
