POW filter + REDUK.aw4000-04 1/2 "(CH) 20UM

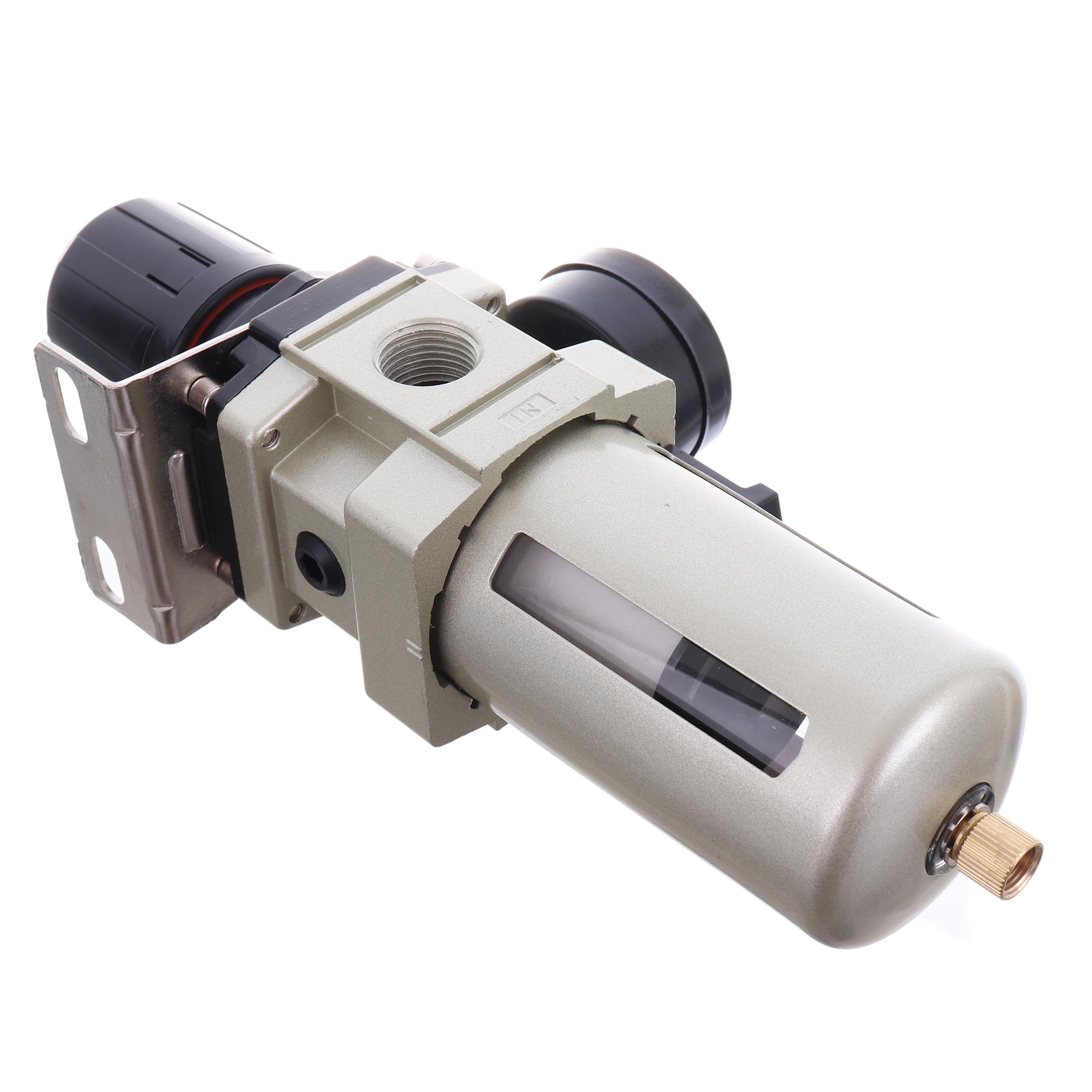

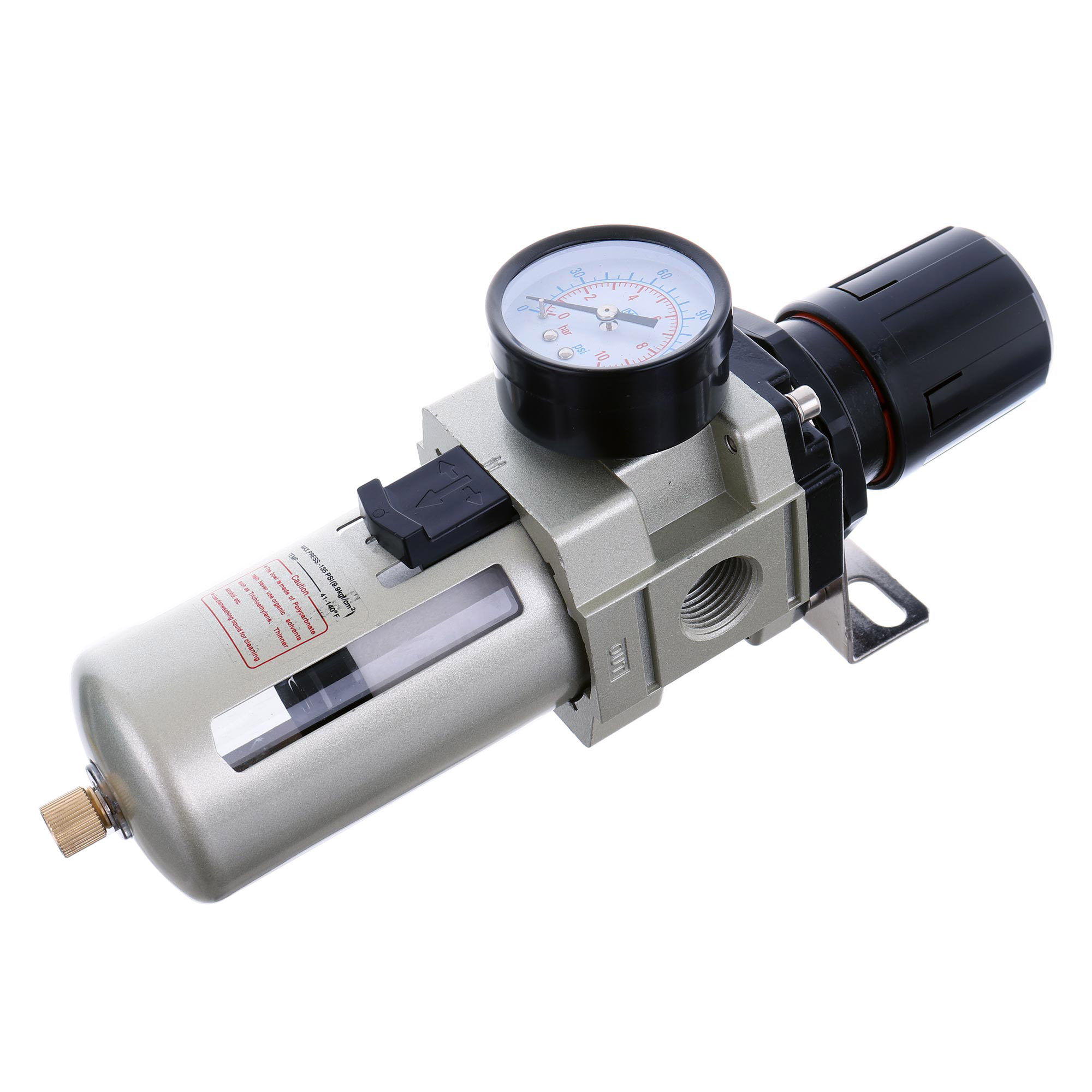

Air reducer with 1/2 inch filter for AW4000-04 - 20UM compressor

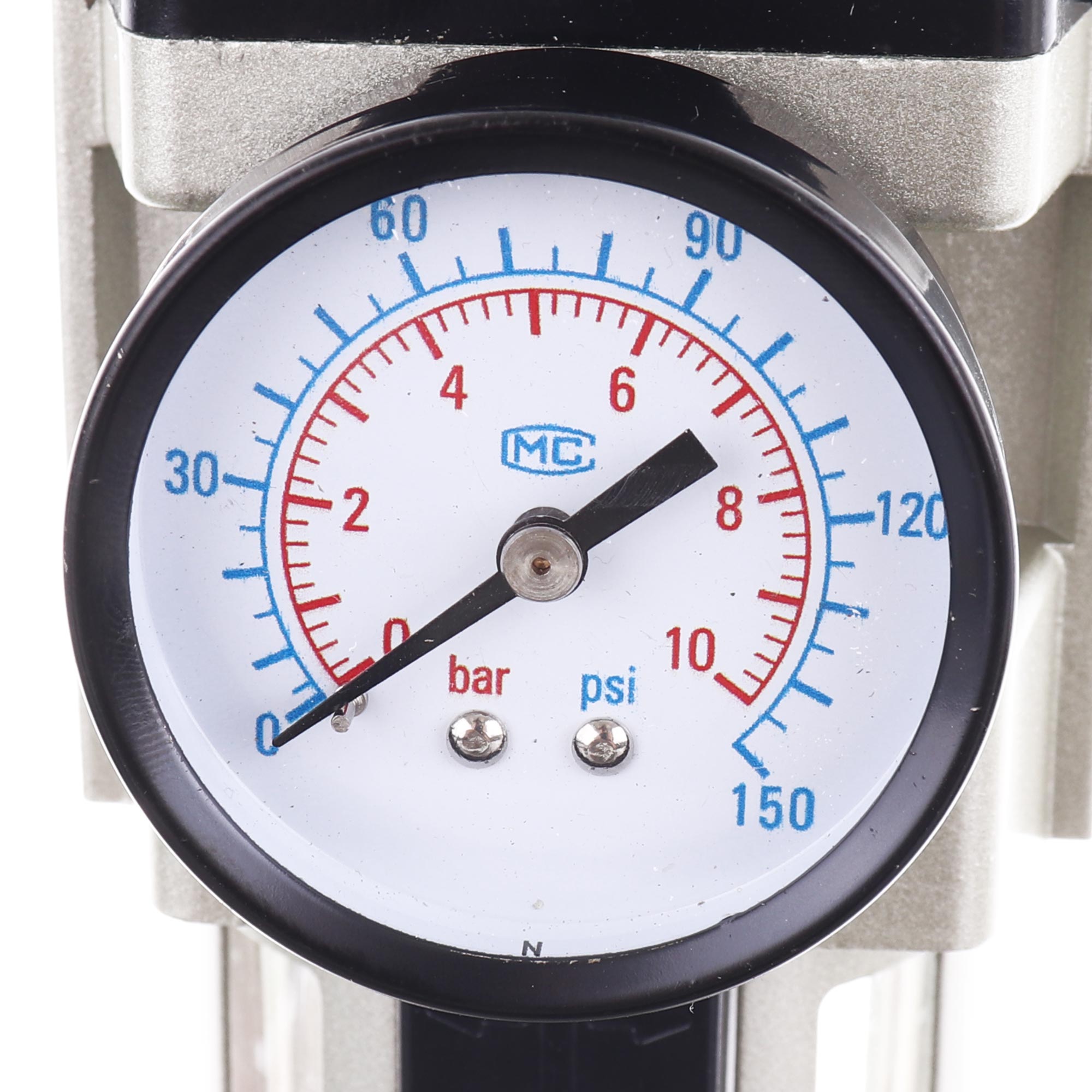

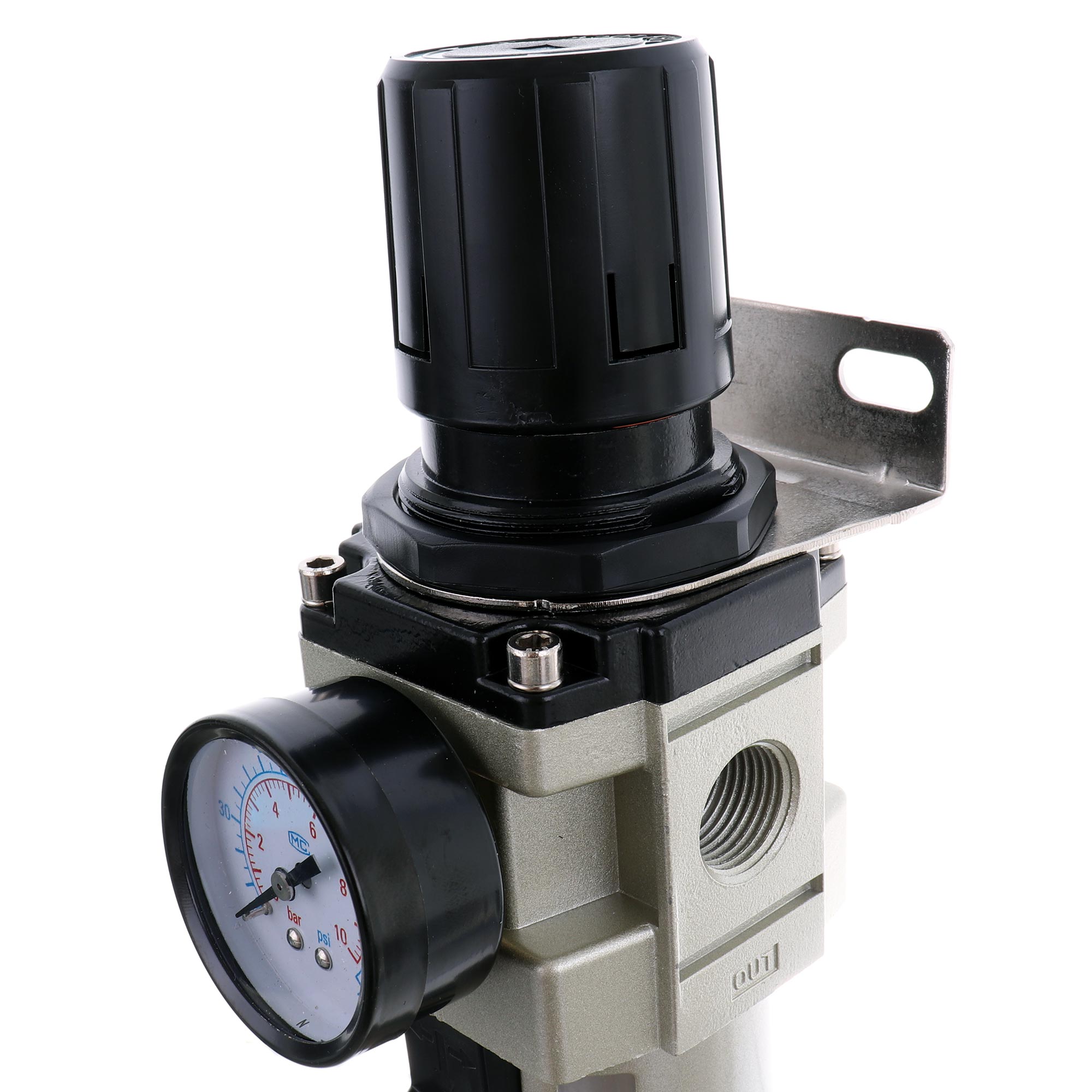

The advantage of the reducer is good and durable construction, readable pressure gauge, Unscrewed hanger for screwing a reductor on the wall, controller lock (top - bottom). It applies in 1/2 "pneumatic installations and is an essential element.

The filter is used to Air drying. It is an irreplaceable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains during painting Picnic pistols, snake damage, etc. It also separates oil and other pollution. Emptying water consists in pulling the valve placed at the bottom of the filter.

Technical data:

• The amount of the set around: 260 mm
• Width: 75 mm
• Regulation range: 0.5 to 10 bar
• Thread: 1/2 "(about 19mm internal)
• Maximum inlet pressure: 10 bar
• Nominal flow: 4000 l / min
• Filtration 0.02 mm
• Tank capacity:45 ml
• Working temperature: up to 60 oC
