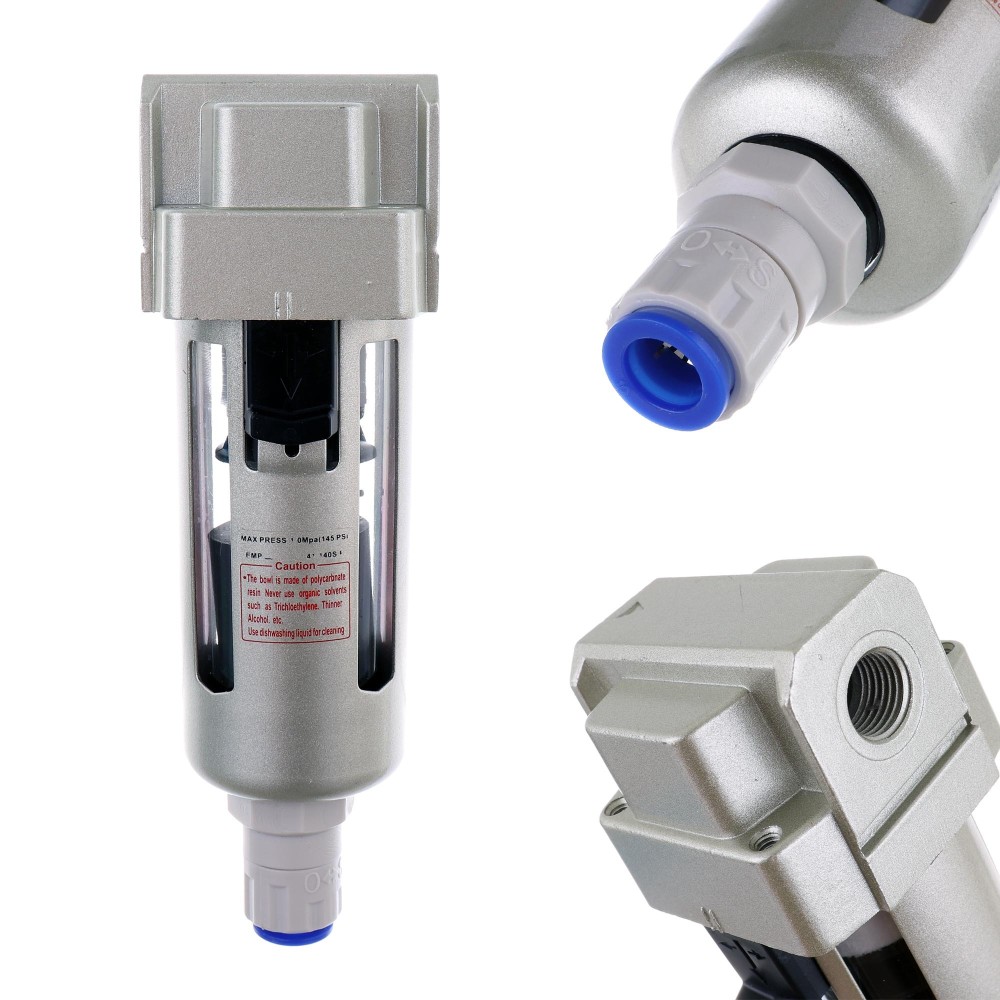

AF3000-02D 1/4 air filter "(CH) 20um Auto Draain

Air Filter Separator Dewerator with Auto System AF3000-04DCH - 20UM

The filter is used to dry air. It is an indispensable element of each pneumatic installation. Using this filter, you can prevent, inter alia; Rusting tools, drains when painting paint guns, snake damage, etc.

The filter also separates oil and all and other contaminants.

The filter does not require additional fasteners, maintains on a nipple or a connector that will be attached to the compressor.

When the level of separated water reaches the appropriate height of the tank automatically empties from the water. Just connect the hose (10mm) and immerse in a larger tank.

Thanks to this, we do not have to remember to empty. Equipped with a metal tank cover and, which increases the durability of the filter.

Technical data:

• Height: 170mm
• Width: 55mm
• Filtration: 0.02 mm
• Threads: 1/4 "(about 11-12 mm)
• Working / maximum pressure: 0-9.7 bar / 14.7 Bar Maximum: 2000 l / min
• Tank capacity: 20 ml
• Mass: 0.3 kg
