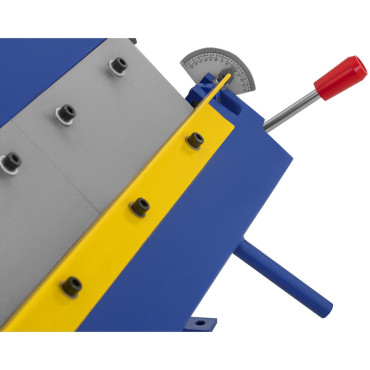

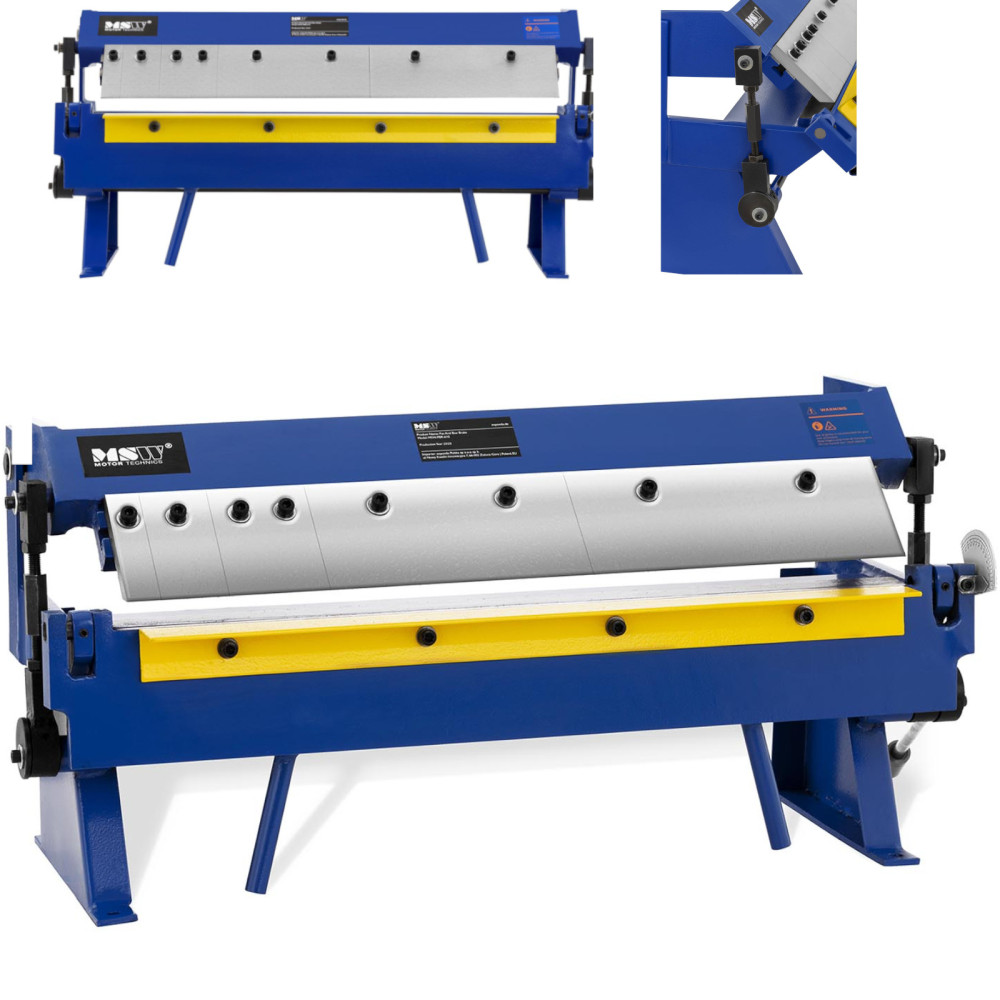

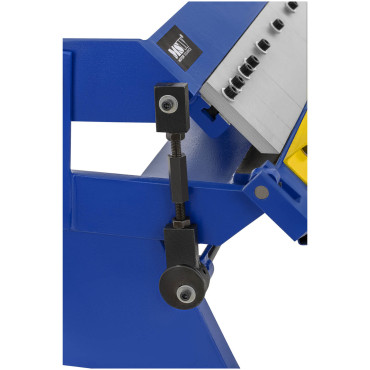

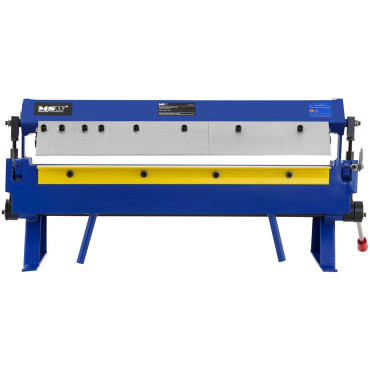

Bending machine. Table segment bend for sheet metal 1 mm 610 mm

Manufacturer's code: 10061178
Bending machine MSW He will work in workshops, factories, modeling, sheet metal and other plants, especially during the renovation of the car body, construction of entry gates or doors. The device machines sheets with a maximum width 610 mm and thickness 1 mm. The bending angle is 0-135deg . The bending machine is equipped with segments 1 '', 2 '', 3 '', 8 '', 10 '' (26.4 mm, 51 mm, 79 mm, 203 mm, 254 mm). Bending height 70 mmand the opening is reaching 20 mm. Machine operation takes place manually. The lever has Non-slip holder. Bean found out Mounting holes 8 mm for attaching the device to the ground.
Product features:

• - Maximum working width 610 mm,
• - maximum sheet thickness of 1 mm,
• - setting angle folded in the 0-135deg range,
• - 1 '', 2 '' segments, 3 '', 8 '', 10 '',
• - made of high quality low-carbon steel.

Technical parameters:

• - Model - MSW-Pbr-610
• - catalog number - 10061178
• - article - New
• - Working width - 610 mm
• - Thickness Max. Sheet - 1 mm
• - Bending Angle - 0-135deg
• - Material - Low-carbon steel Q235
• - User manual - So
• - Dimensions (DXSXW) - 67,00 x 30.00 x 35.00 cm
• - weight - 43.00 kg
• - Dimensions of shipment (DXSXW) - 81,00 x 35.00 x 42.00 cm
• - shipping weight - 48.00 kg

Included:

• - Segmental bending machine
• - Assembly accessories
• - handle
• - bracket
• - User manual
