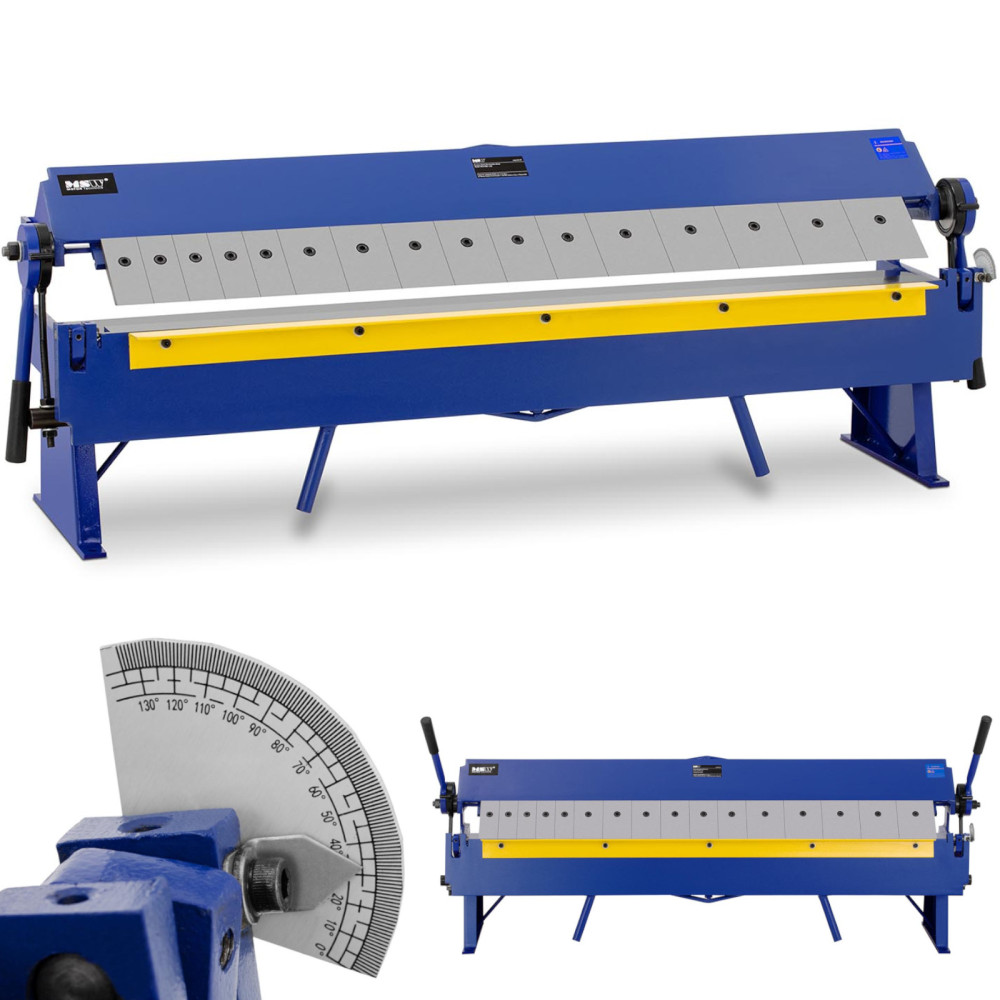

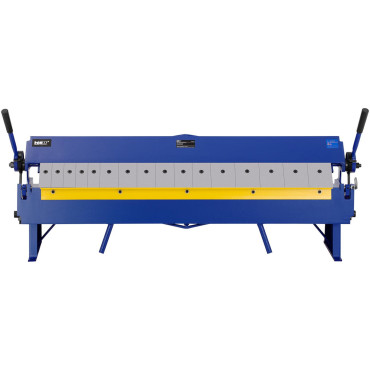

Bending machine for hand segment sheet 0-135 degrees Width 1220 mm

Manufacturer's code: 10061167

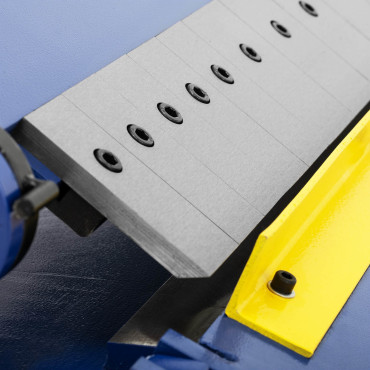

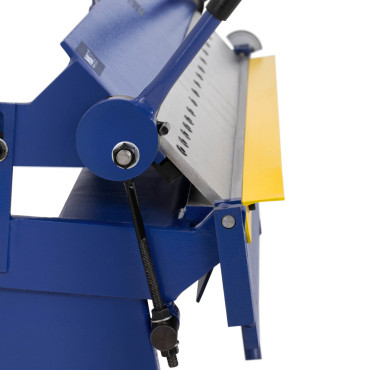

Bending machine for brand sheet MSW It will work for the renovation of the body, construction of entry gates, doors in workshops, factories, modeling plants. Machine machines for maximum sheets 1220 mm wide (48 '') and 1.5 mm thick. The bending angle is 0-135deg . The device is equipped with segments 5 x 5 '', 6 x 3 '' and 5 x 4 ''. The bending machine is precise and effective in action. Device operation takes place manuallyThe levers have non-slip handles. 9 mm mounting holes In the base, they allow stable to attach the device to the substrate.
Product features:

• - Maximum working width 1220 mm,
• - maximum sheet thickness of 1.5 mm,

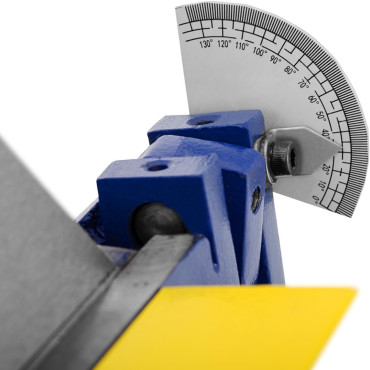

• - setting angle of the submission in the range of 0-135deg,
• - Execution of high-quality low-carbon steel,
• - Compact design.

Technical parameters:

• - catalog number - 10061167
• - article - New
• - Model - MSW-Pbr-1220
• - Material - Low-carbon steel
• - Bending Angle [deg ] - 0-135
• - Maximum sheet thickness for machining [mm] - 1,5
• - Maximum width of the machining sheet [mm] - 1228
• - Dimensions (DXSXW) [cm] - 155 x 42 x 80
• - weight [kg] - 126
• - Dimensions of shipment (DXSXW) [cm] - 160 x 45 x 70
• - shipping weight [kg] - 154

Included:

• - Bender
• - Mounting accessories
