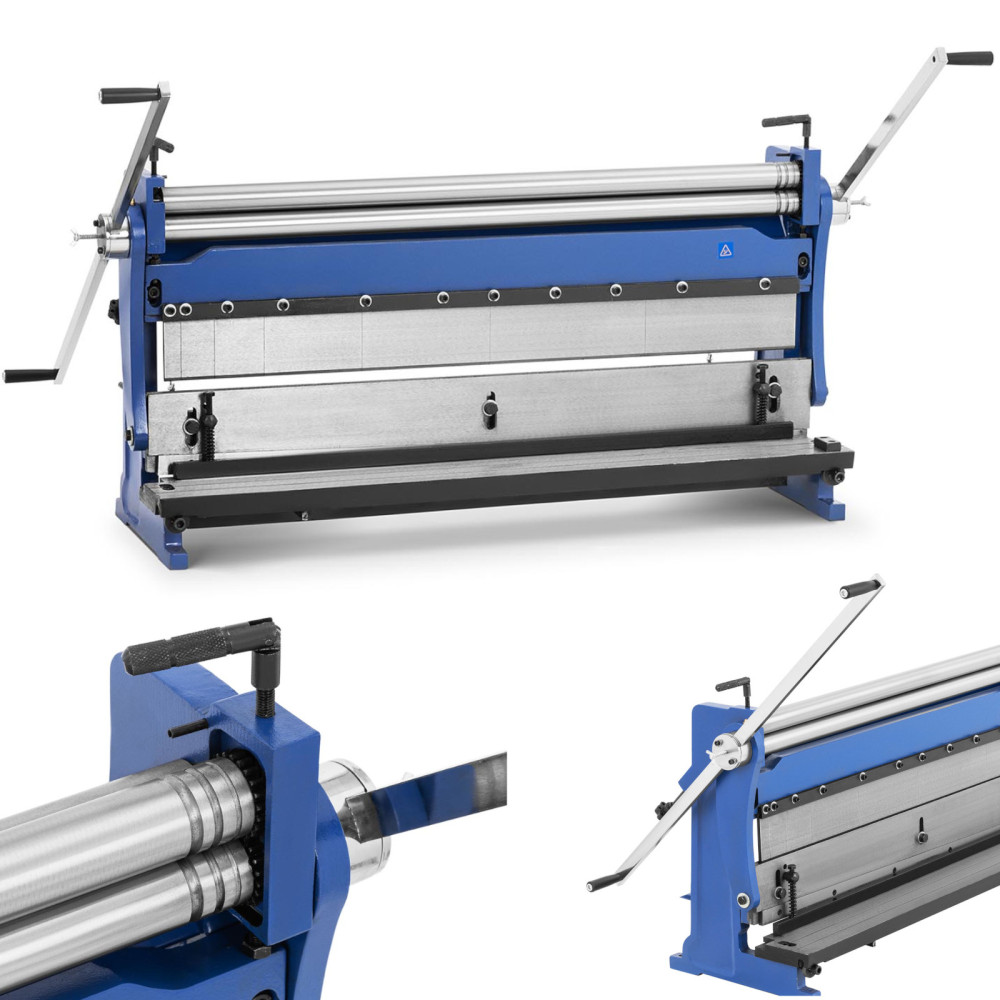

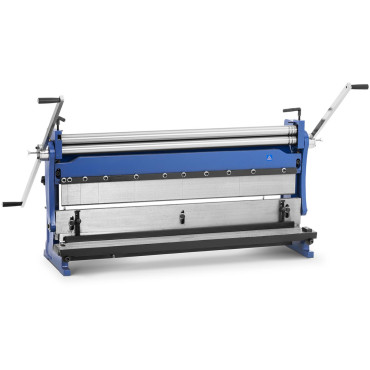

4in1 Bending machine for sheet metal with Cutting Cutting Function 1040mm

Manufacturer's code: 10062234
Manual bending machine for the brand sheet MSW Connects three stages in one device: cutting, bending and ironing of sheets and metals of all kinds, thanks to which it is suitable for many applications. The bending machine is checked in industrial production, for example in factories and workshops. Sheet roller has a length of length 1040 mm made of spring steel 60si2mn. The material is particularly durable, characterized by durability and is easy to maintain. With the help of the equipment you can cut the sheet metal 1040 mm and thickness 1 mm. With rollers, you can easily bend the sheet to the desired shape. The required angle is set in just a few simple steps, maximum up to 90deg . The dimensions of the bending machines allow you to easily process the sheet with a maximum width 1016 mm. The sheet metal bending machine is handled with 2 side crops. Thanks to the excellent transfer of power to bend, rolling and cutting, a small force is required. Thanks to this, even inexperienced people can conveniently handle the device. The edge press was made of solid and durable materials such as cast iron and steel. With appropriate maintenance and regular lubricating with machine oil, the equipment will serve for years. The weight of the bending machine ensures its stability. To completely avoid tilting or wicking, attach the device to the floor or workshop table.
Product features:

• - for processing metal elements up to 1 mm thick,
• - bending angle adjustable to 90Deg,
• - allows you to roll, ironing and cutting sheets on one machine,
• - solid and durable steel and cast iron construction,
• - Easy to mount on the floor or a workshop table thanks to pre-drilled holes.

Technical parameters:

• - catalog number - 10062234
• - article - New
• - Model - MSW-PBR-1016 Combi
• - Material - Cast iron, Steel
• - Bending Angle [deg ] - 90
• - knives material - 60si2mn
• - Blade length [mm] - 1040
• - Color - Blue, Silver
• - Maximum thickness of the bent material [mm] - 1
• - Corps material - Żeliwo / Stal (A3)
• - Handle length [cm] - 101.6
• - Maximum thickness of the material rolled up [mm] - 1
• - Maximum thickness of the sheared material [mm] - 1
• - Diameter of pole [mm] - 40
• - length of the press edge [mm] - 1016
• - Dimensions (DXSXW) - 134 x 67 x 95 cm
• - weight - 172 kg
• - Dimensions of shipment (DXSXW) - 126 x 43 x 72 cm
• - shipping weight - 196 kg

Included:

• - Bending machine for the sheet
