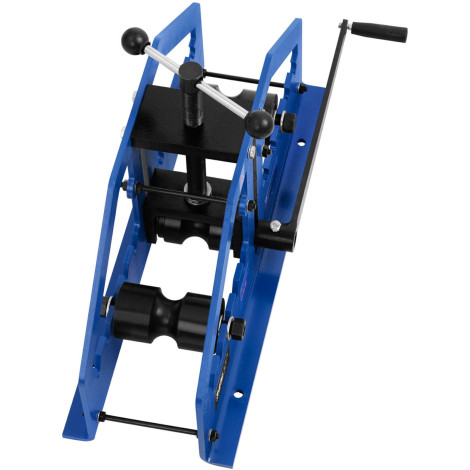

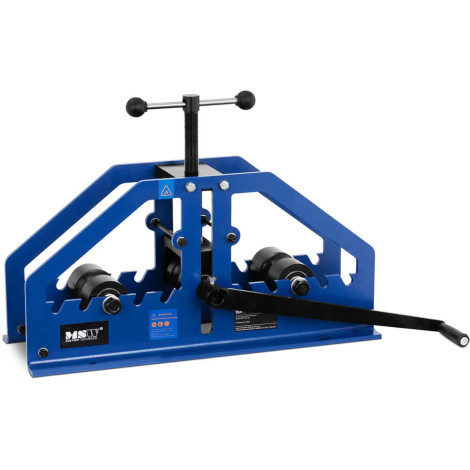

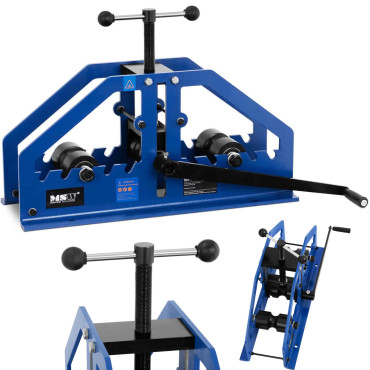

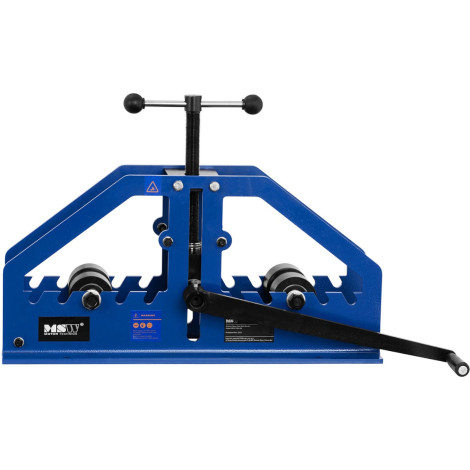

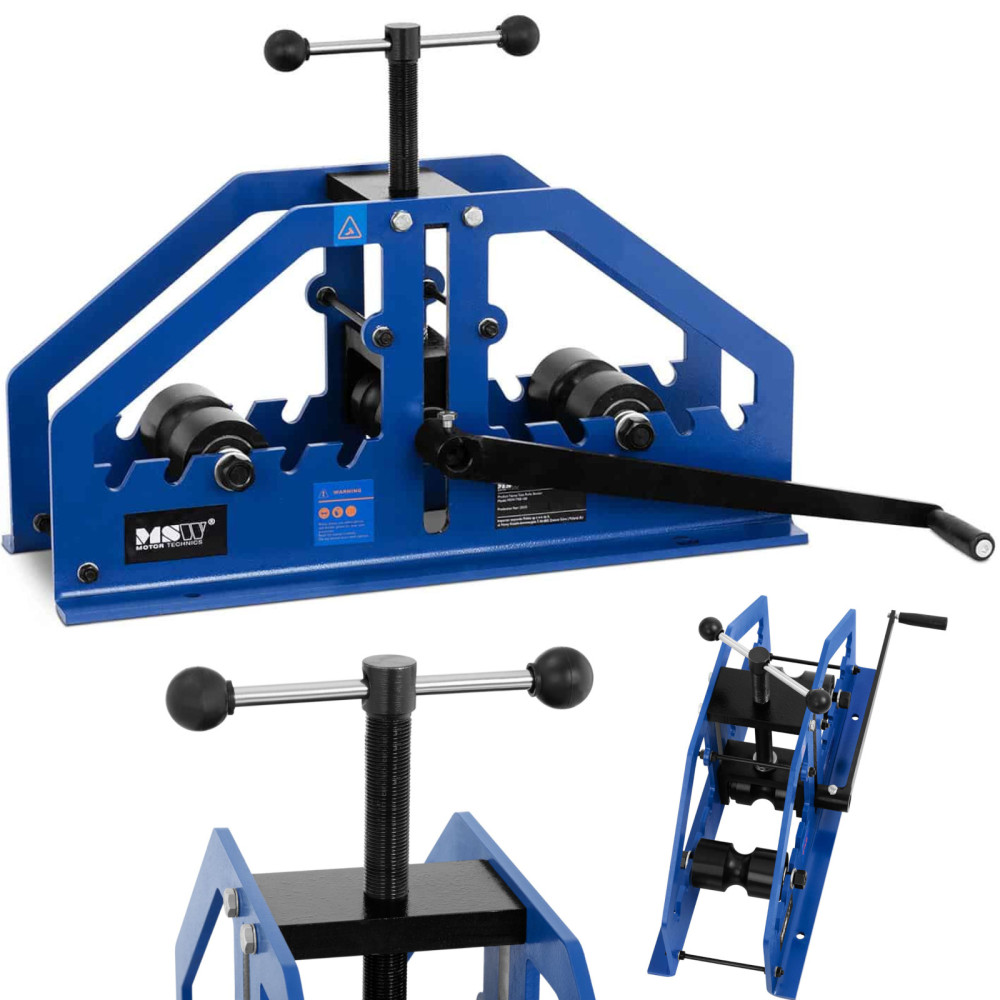

Roller bending machine for pipes profiles 0-360 degrees 660-1200 mm

Manufacturer's code: 10061170

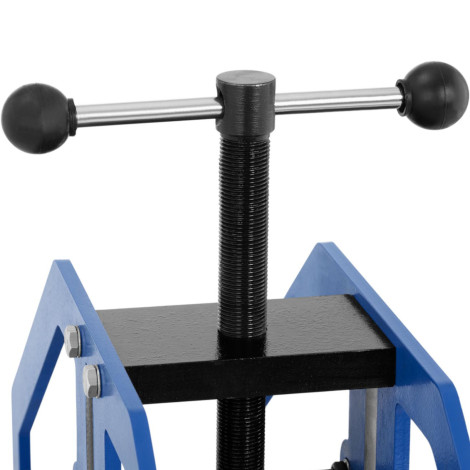

Rolling machine for the brand MSW It will work for modeling metal materials used in construction, car workshops or hobby studios. The device can be used for shaping structural pipes (Gr. 1-1 / 2 ", min. radius of the arc 20") and wired (Gr. 2 ", min. Ray of arc 70"). It is also suitable for flat (1-1 / 4 ", min. arch radius 10"), ceowników (1 x 2 ", min. Arc radius 60") and Square profiles (2 ", min. Ray of the arc 70") and rectangular (1 x 2 ", min. Arc radius 60"). The bending range is from 0 to 360deg . The adjustable form allows you to adjust the rolling mill to the dimensions of the material. The upper roll is set with a large knob. The minimum rolling diameter is 660 mm and a maximum of 1200 mm. The device construction was made of low-carbon steel and the rollers were made of carbon steel. Mounting holes With a diameter of 11 mm, they allow attaching the equipment to the substrate.
Product features:

• - for processing pipes, profiles and flat bars,
• - bending range from 0 to 360DEG,
• - Easy manual service,
• - efficiently setting the company with a large knob,
• - low-carbon steel strength.

Technical parameters:

• - catalog number - 10061170
• - article - New
• - Model - MSW-Trb-100
• - Material - Carbon steel, steel
• - Color - Blue
• - Hole diameter [mm] - 11
• - outlet diameter [mm] - 38
• - machining angle [deg ] - 0-360
• - Cable diameter [mm] - 35
• - material thickness [mm] - 8
• - Minimal rolling diameter [mm] - 660
• - Dimensions (DXSXW) [cm] - 60 x 22 x 50
• - weight [kg] - 29
• - Dimensions of shipment (DXSXW) [cm] - 62 x 24 x 38
• - shipping weight [kg] - 33

Included:

• - RUR roller
• - lever
• - adjustable form
• - User manual
