Roller Roller for hand sheet 610 x 0.8 mm

€428.81
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10060478

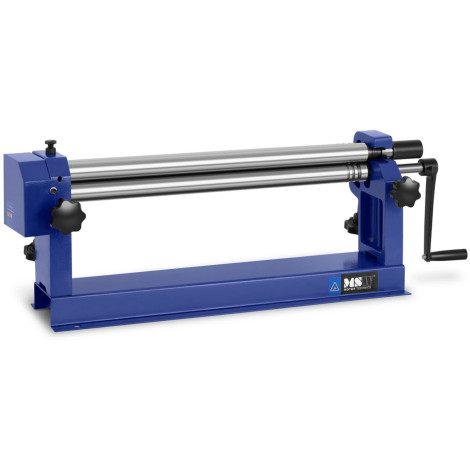

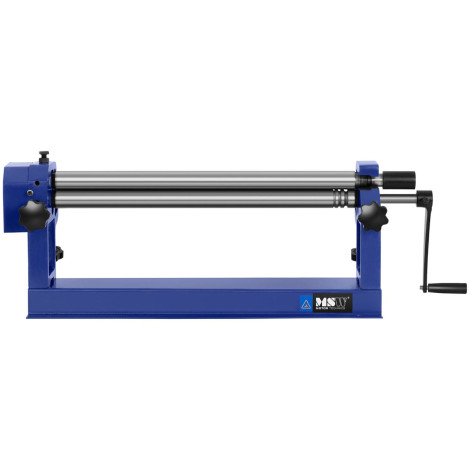

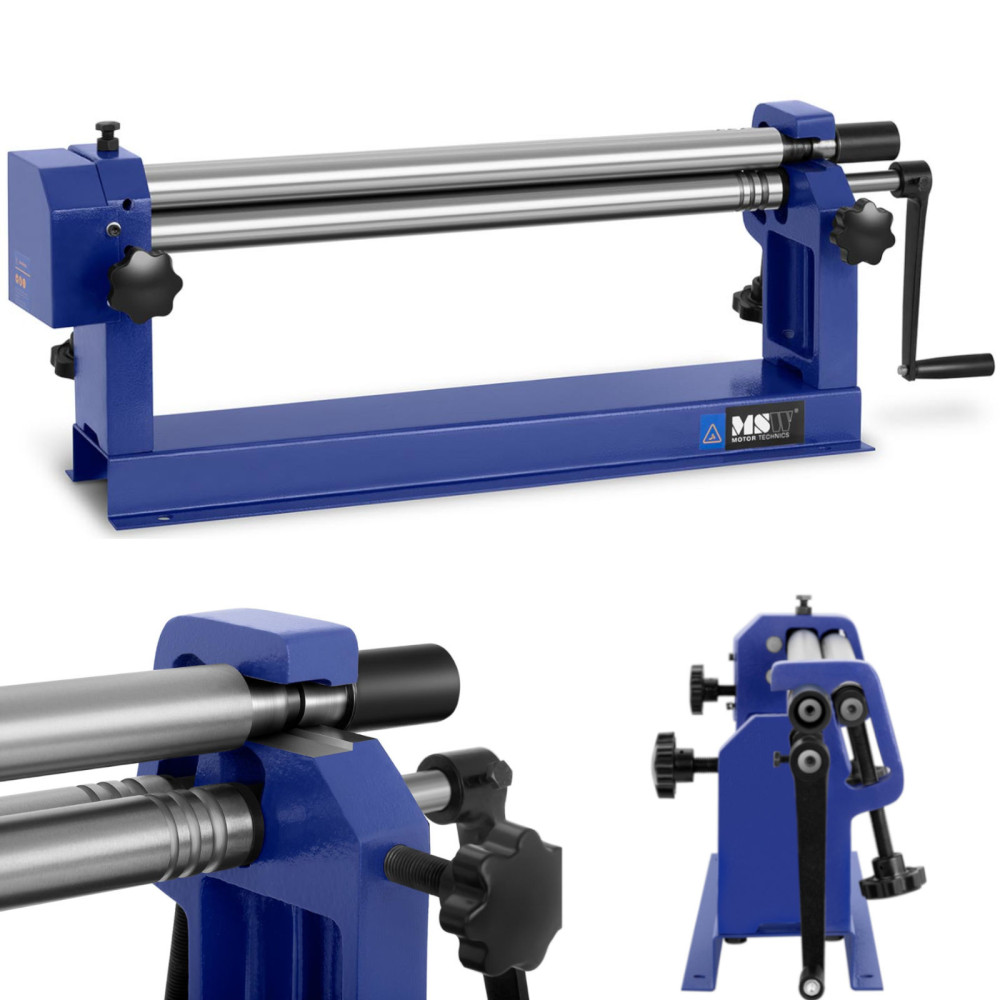

Roller for the German sheet brand MSW It will work perfectly in the workshop, a factory for making cones, cylinders or bends from sheet metal and wires.

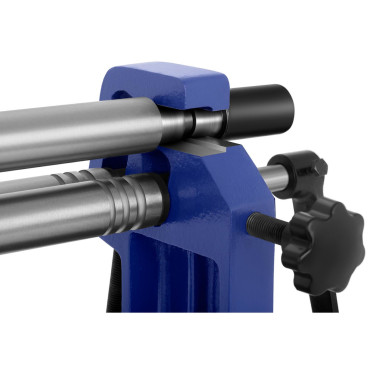

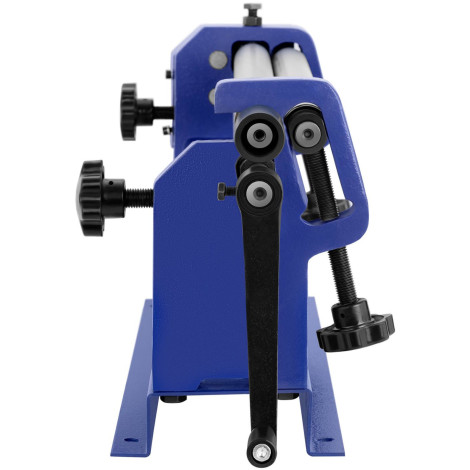

The device has three metal rollers with which you can do bending, cone or cylinder From sheet metal. With the help of grooves, you can curl wire in a bow or a wheel. The rollers were adapted to form material with a maximum width 610mm and 0.8mm thick. Manual crank allows you to rotate the roll while inserting a sheet metal sheet metal. Rubber, non-slip handle provides work convenience. The knobs adapt the distance between rollers to the thickness of the material. The upper roller allows you to quickly remove the finished element and facilitate maintenance. The device can be mounted into the substrate thanks to holes in the base. It is possible to apply flat rolling for a soft steel, as a result, a flattened sheet or slightly reduced thickness is obtained. The roller is also suitable for making arcs with a fixed radius and cylinders. The maximum material thickness is 0.8 mm. Thanks to grooves on shafts, the sheet rollers also forms a rod, wire or a small pipe with a diameter of 2.4 3.2 and 4 mm.
Product features:
  • - Versatility - rolling, bending, creation of cylinders and cones made of sheet metal and wire,
  • - Precision - Distance settings between rollers to match the material thickness tool,
  • - Safe and stable work - the ability to attach the equipment to the ground,
  • - Intuitive service - Non-slip handle, simple adjustment using knobs, mounting on the ground.

Technical parameters:
  • - Model - MSW-Sr610
  • - catalog number - 10060478
  • - article - New
  • - Maximum forming width - 610 mm
  • - forming thickness - 0.8 mm
  • - Minimal diameter of rollers - 40 mm
  • - wires diameter - 2.4 3.2 4 mm
  • - frame material - Cast iron
  • - Material of rollers - High-carbon steel
  • - Dimensions (DXSXW) - 93 x 30.5 x 42 cm
  • - weight - 37.35 kg
  • - Dimensions of shipment (DXSXW) - 92 x 32 x 43 cm
  • - shipping weight - 46.45 kg

Included:
  • - roller
  • - handle
  • - EN statement
