Cooling circulator Laboratory for temperature control -20 - 20 C 20 l / min 726 W

Manufacturer's code: 10030665
Cooling circulator brand Steinberg Systems This high-quality laboratory device used for internal and external temperature control. Equipment you can connect m.in. for an electron microscope, a rotary vacuum distillator or a glass reactor. It is also suitable for cooling lasers and incubators with water jacket. High control accuracy is due to digital regulation PID microprocessorwhich increases the heating / cooling level depending on the temperature. Also applied PT100 thermocouple. Thanks to this, it was possible to achieve Precision +/- 2DEG C. Convenient adjustment in the range -20 til 20Deg C It is possible due to the display LCD. Tank stainless steel It's easy to keep clean. In addition, functions have been used rust and coolant pollution.
Product features:

• - Microprocessor controlled PID controller,
• - Constant temperature with Accuracy +/- 2DEG C,

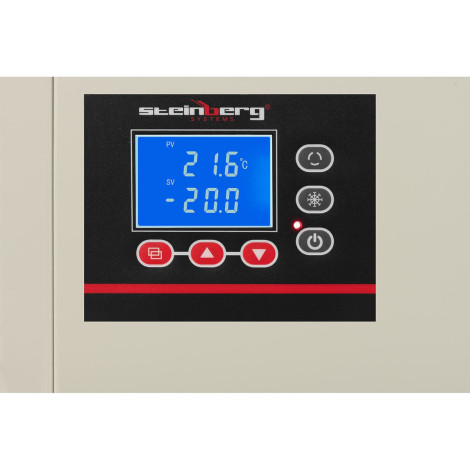

• - Display LCD,

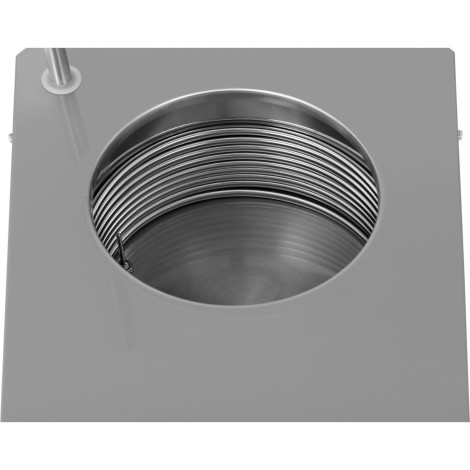

• - tank with stainless steel,
• - Lowest temperature to -20deg C,
• - Compact design,
• - Protection Before overheating.

Technical data:

• - catalog number - 10030665
• - article - New
• - producer - Steinberg Systems
• - Model - SBS-Lcc-5000
• - Tension [V] - 230
• - Display - LCD
• - User manual - So
• - Protection against overheating - So
• - Tank dimensions [cm] - ⌀250x130
• - temperature accuracy [deg C] - +/- 2
• - Protection against exceeding the maximum current - So
• - temperature range [deg C] - -20 til 20
• - current [A] - 4.2
• - Material - Stainless steel 304 / Q235
• - operating temperature range [deg C] - ≤25
• - capacity [l] - 5
• - frequency [Hz] - 50/60
• - Relative humidity [%] - ≤60
• - Power compressor [W] - 726
• - Circulating pump power [W] - 100
• - circulating pump flow [l/min] - 20
• - Cooling performance [W] - 10DEG C-1230 W, 0DEG C-1150 W, -10deg C-1009 W, -20deg C-580 W
• - raising the circulation pump [m] - 5-7
• - Lowest temperature [deg C] - -20
• - delayed start - So
• - Dimensions (DXSXW) [cm] - 48 x 41 x 100
• - weight [kg] - 40
• - Dimensions of shipment (DXSXW) [cm] - 57 x 42 x 80
• - shipping weight [kg] - 47

Included:

• - Cooling circulator,
• - tubes (1.87 + 1.83 m) - 2 pcs,

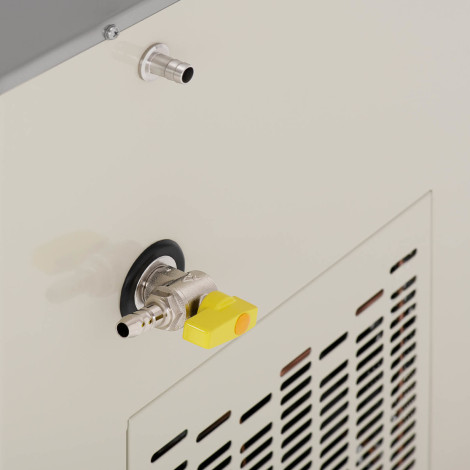

• - valve,
• - Operating instructions.
