Crane loading on a car pickup with a 12 V 1000 wagon winch

Manufacturer's code: 10031273

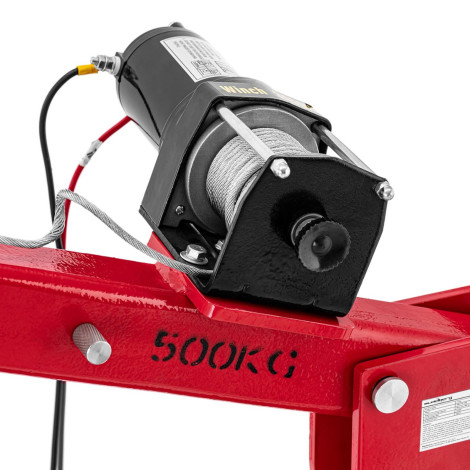

Loading crane brand Steinberg Systems Allows you to raise heavy loads both in the workshop and in the field. It is attached to a delivery vessel with a base 250 x 250 mm. Holes were drilled in it, which facilitates the installation on the PACE. The raising arm has a maximum range 149 cm. Shortening the arm to 128 cm Increases his lifting capacity up to 500 kg A with a belt wheel even up to 800 kg. To rotate the lifting arm, loosen the lever and then lock it later. The bearing head of the loading crane can be precisely moved in every situation. The cable winch is attached to the arm of the lifting workshop. She works with voltage 12 V DC I achieves starting power 1000 W. In this way you will get the rope lifting speed up to 3.6 m / min. Lina has a diameter 4.8 mm and safely keeps everyone accosted on the cargo hook up to 800 kg. Steel line with a length 4.5 m it is intended for lifting to altitude up to 1.94 m. The device fits the open car packs but you can also mount them in vehicles with a closed load space or use in the workshop.
Product features:

• - the 12 V rope winch raises loads up to 500 kg, and with a belt wheel up to 800 kg,
• - holes in the base allow you to attach it to the car's cargo surface,

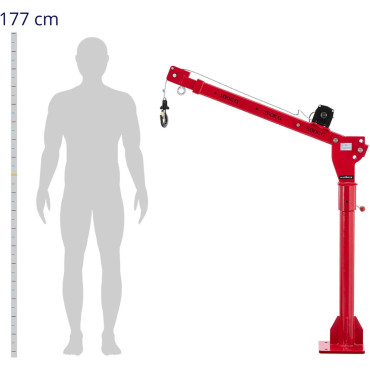

• - Raising arm you will spread to 149 cm and turn by 360DEG,
• - raises items at 3.6 m / min to a maximum height of 1.94 m,

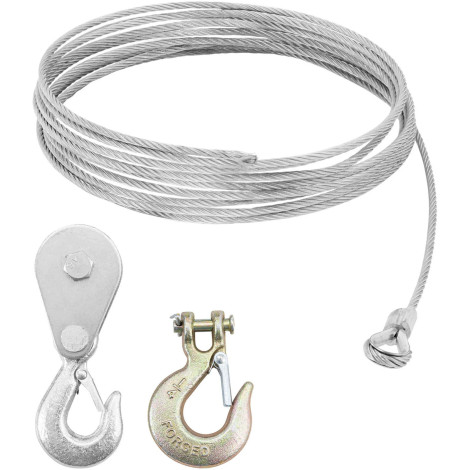

• - strong rope with a diameter of 4.8 mm and a maximum length of 4.5 m.

Technical parameters:

• - catalog number - 10031273
• - article - New
• - Model - SBS-Ptc-500
• - Material - Stainless steel, steel
• - Dimensions of the base [mm] - 250x250
• - Color - Red
• - Lifting speed - without a clad [m/min] - 3.6
• - load capacity - without a clad [kg] - 500
• - lifting speed - with a cladding [m/min] - 3.6
• - load capacity - with a cladding [kg] - 800
• - Maximum lifting height [m] - 1.94
• - Power cord [m] - 4,2
• - Maximum load [kg] - 800
• - Rope length [m] - 4.5
• - Rope diameter [mm] - 4,8
• - Tension [V] - 12
• - power [W] - 1000
• - Dimensions (DXSXW) - 116 x 36 x 130 cm
• - weight - 52.8 kg
• - Dimensions of shipment (DXSXW) - 139 x 37 x 38 cm
• - shipping weight - 64.5 kg

Included:

• - Loading crane
