PNEUMATIC WORKING ROOM 18 T

Manufacturer's name:  MSW-Swh-20

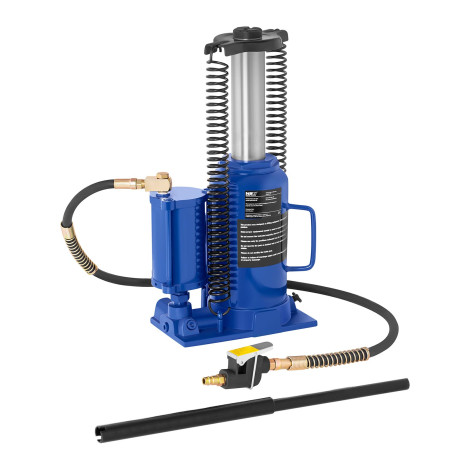

Pneumatic car lifter It is intended for use in workshop and repair plants. Without a doubt, the automotive enthusiasts will be in the garage. It was designed for a lifting capacity of mass 18000 kg. The construction of the lift was made from Top-quality steel, thanks to which it is characterized by reliability and trouble-free. For the user's safety, the jack has been equipped with safety valvewhich will prevent overload. Installation, service and disassembly takes place in a convenient and trouble-free manner.
Product features:
- high quality,
- 18T lifting capacity,
- Lifting range 260-535 mm,
- it has a safety valve,
- simplicity of assembly and handling,
- Possibility of using a compressor or manually
Technical parameters:

• - Model - MSW-Swh-20
• - catalog number - 10060929
• - article - New
• - load capacity - 18000 kg
• - Lifting range - 260 - 535 mm
• - air pressure - 8 - 9.5 bar
• - Diameter of the lifting pad - 45.5 mm
• - height adjustment - 55 mm
• - Lever length - 440 mm
• - connector type - Men's quick coupling GZ 1/4 "
• - Air pressure hose - 1.2 m
• - Dimensions (DXSXW) - 22.5 x 15.5 x 42 cm
• - weight - 13.6 kg
• - Dimensions of shipment (DXSXW) - 27 x 20 x 28.5 cm
• - shipping weight - 14.1 kg

Delivery scope:
- Pneumatic car lifter
- two-piece holder / lever
- hoses and connectors
- Compressed air hose
- User manual
