Mill Bijackic Grain Sprayer sawdust pellet 300 kg / h 4 kW

€1,482.80
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10280326

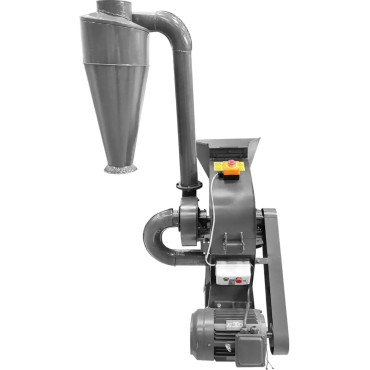

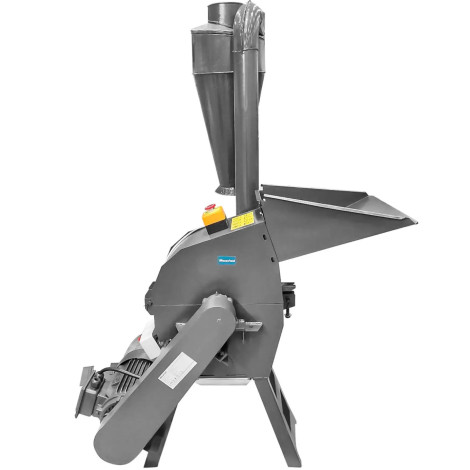

Mill of the Wiesenfield brand This is an efficient machine that crushes a wide range of grain size materials that can be easily processed. It will work for cereals, straw, lucernes or wood chips. The glamor obtained is suitable for the production of animal feed or for the production of wood pellets. With the output power 4 kw motor with speed 2800 rpm drives 16 hammers in millse. Device performance is 200 - 300 kg / h . Remember that the amount depends on the type of grain or raw material and moisture content in the material. To get the best results, humidity should not exceed 15%. Grains are strangled to the external sieve by centrifugal forces acting on the mill during grinding. The size of the SITA opening determines how thick they will have a grinder. Size holes are available 4 and 6 mm. Ready milling is deliberately filled by the cyclone. The beating shredder impresses the ease of use, a large tank and a solid construction. This allows you to produce and process large amounts of ground material. A stable base guarantees safe operation.
Product features:
  • - crushing cereals, straw, wood chips, alfalfin and this similar raw materials for the production of pellets,
  • - 4 kW engine reaches a speed of 2800 rpm,
  • - high efficiency depending on the raw material and humidity of 200 - 300 kg / h,
  • - various grain sizes thanks to situ 510 x 200 mm and 3 and 6 mm holes size,
  • - A stable basis and a controlled reproach through the cyclone.

Technical parameters:
  • - catalog number - 10280326
  • - article - New
  • - Model - -Knows pm-2700
  • - frequency [Hz] - 50
  • - Material - Carbon steel, cast iron
  • - Color - Gray
  • - Production [kg/h] - 200 - 300
  • - Sieve dimensions [mm] - 510 x 200
  • - SIT hole diameters [mm] - 4/6
  • - Angle adjustment [deg ] - 270
  • - FAZ range - 3 phases 380v / 50 Hz
  • - Mesh hole diameter [mm] - 2 - 10
  • - Permissible humidity of the measured surface [%] - 8 - 15
  • - Maximum power - 4 kw
  • - Number of rolling hammers - 16 PC
  • - engine speed [obr./min] - 2800
  • - Dimensions (DXSXW) - 130 x 60 x 163 cm
  • - weight - 96 kg
  • - Dimensions of shipment (DXSXW) - 110 x 60 x 107 cm
  • - shipping weight - 122 kg

Included:
  • - Bending mill
  • - cyclone
  • - Short metal tube
  • - tank
  • - 2 SITA (3 and 4 mm opening sizes)
