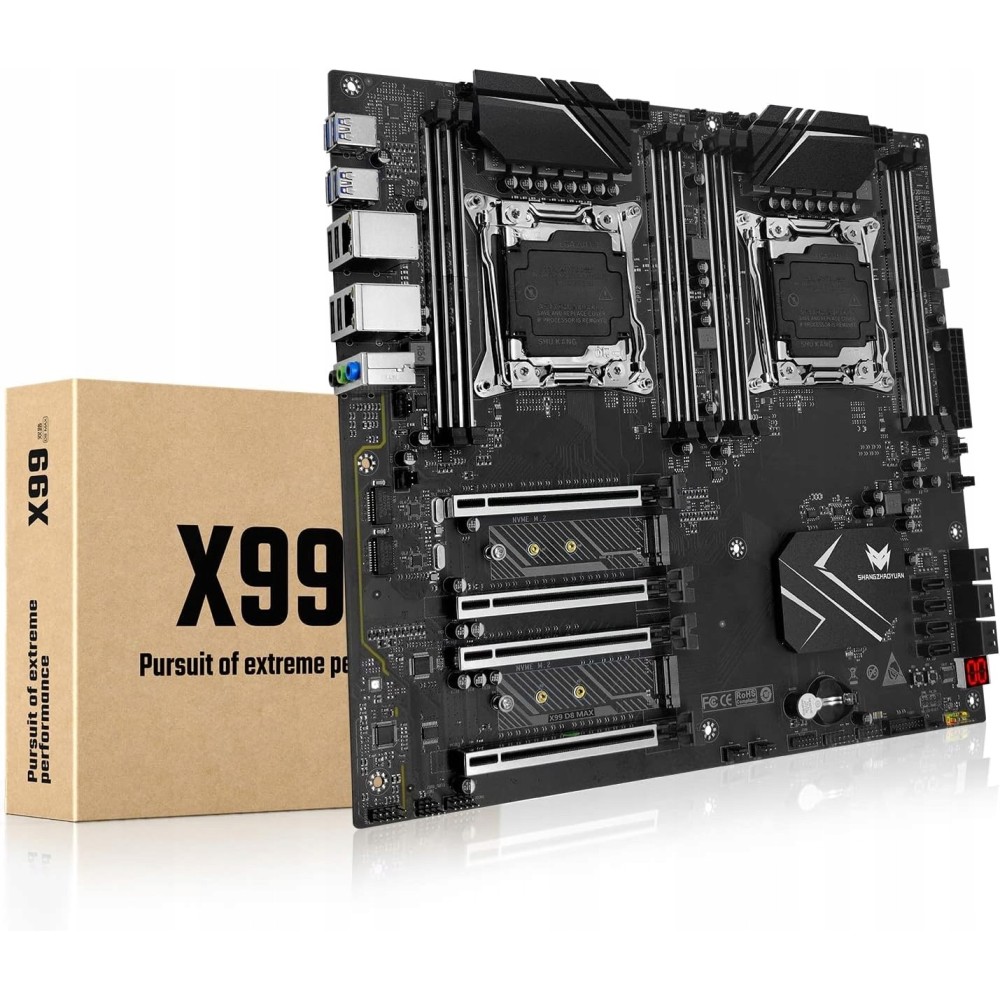

Motherboard Shangzhaoyuan X99 E-ATX, 8 * DDR4 ECC, 2 * GB LAN, server

【Mainboard LGA 2011-3 Dual CPU】 --- LGA 2011-3 socket and two-percolor layout Intel, which improves efficiency by at least 50%. It supports Intel Core I7 processors and 6th generations and Xeon E5 processors. (❗uwaga: Use two processors of the same model.)

【Maximum memory 256GB】 --- The server motherboard supports a 4-channel DDR4 or DDR4-ECC memory up to 256GB and supports effective frequencies 2133 / 2400MHz. (❗uwaga: The server RAM memory can not work with the DESKTOP RAM.)

【Protocol standard 3.0】 --- equipped with 4 slots for graphics cards PCIE 3.0 x16 (with steel casing). The transfer rate can reach 15.754 GB / s on one graphics card, and the performance may increase by at least 50% using two graphic cards. Equipped with double slots on M.2 discs, which allows quick readings even when starting multiple programs.

【High-performance mainboard】 --- The E-ATX motherboard is equipped with a C612 chipset, 12-layer PCB material, faster transmission efficiency and longer life. The mounted diagnostic card allows you to quickly find a vulnerability. In addition, two network ports allow the computer to perform more tasks.

【Professional cooling】 --- Gaming board X99 is equipped with 3 VRM radiators, which ensures fast heat dissipation and maintains the reliable operation of the system.

【Stable power supply】 --- 24pin + 8pin + 8pin power interface, using a 12-phase power supply to ensure a stable power supply. (Motherboard server plates with two processors require dedicated power supplies. To ensure normal operation, use the power adapter above 500W.)

【Package contents】 1 x Motherboard X99, 2 x SATA Cables, 1 x Cover I / O, 2 x Holder for Fan CPU LGA2011-3. ❣️① The packaging does not contain the user manual. ②płyta The main page does not contain the CR2032L battery, buy it separately.

【Useful tips】 If there is no display, lack of start, no screens, no network card, no sound card, etc., it is recommended to download the driver: Driver Talent or Use the Win 10 system, which can help you solve all Problems with drivers.
