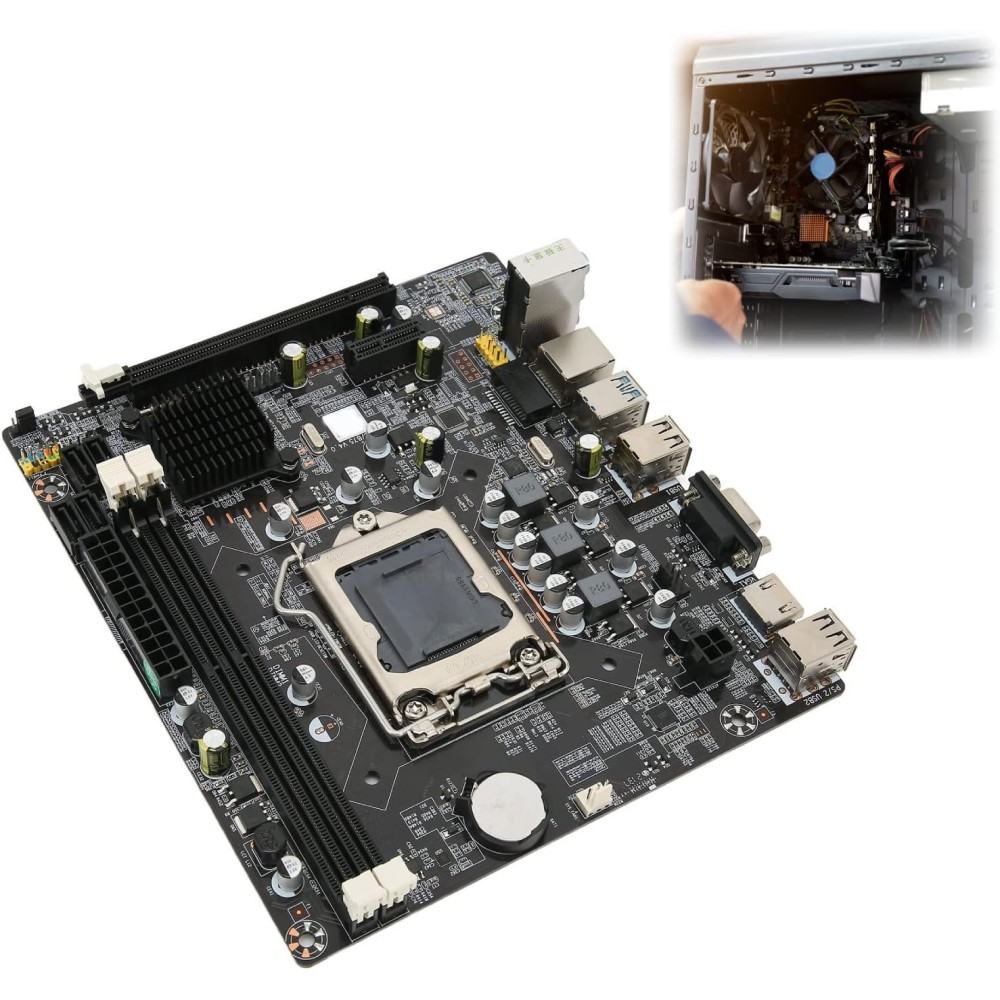

Motherboard Zone Intel B75 Socket LGA 1155 Intel DDR3 CPU I5 I7 USB3.0

Features:

1. USB 3.0 High Speed interface: front and rear, bilateral, high transmission speed.
2. DDR3 memory: Fully compatible with DDR3 1066/1333/1600/1866 memory for desktop computers.
3. SATA3.0 High Speed hard drive interface: Supports fast SSD drives.
4. Graphics HD Nuclear HDMI: Efficient HD graphics, Double VGA + HDMI.
5. Professional design, your best choice.

Motherboard specifications:

Chipset motherboard:

• Integrated sound / network card.
• Main chipset: Intel B75 series.
• Sound chip: Integrated 6-channel audio chip.
• Network chip: Integrated RTL8105E.

Processor specifications:

• CPU seat: LGA 1155.
• Processor type: I3 I5 I7 series.

Memory specifications:

• Memory type: DDR3 1066/1333 / 1600MHz.
• Memory slots: 2 x DDR3 DIMM.
• Maximum memory support: 8GB × 2.

Slots of extensions:

• 1 x Flashlight card PCI-EX16.
• 1 x PCI-EX1 slot.
• 2 x USB 2.0 ports (1 set).
• 2 x USB 3.0 ports (1 set).
• 3 x SATA interface 2.0.
• 1 x SATA interface 3.0.

I / O interfaces:

• Universal USB interface.
• 1 x RJ45 network interface.
• 2 x USB interfaces 2.0.
• 2 x USB interfaces 3.0.
• Audio port.

Other parameters:

• 4-pin power connector, one 24-pin power connector.
• Power mode 3 elements.
• Dimensions: 19 × 17 × 4 cm.
• Approximate weight: 542 g.

Contents of the packaging:

• 1 x motherboard.
• 1 x SATA cable.
• 1 x shield shield.

Note:

1. It is recommended to install by professionals.
2. In the absence of displaying, lack of startup, lack of image, no network card, no sound card, etc. after a normal installation.
