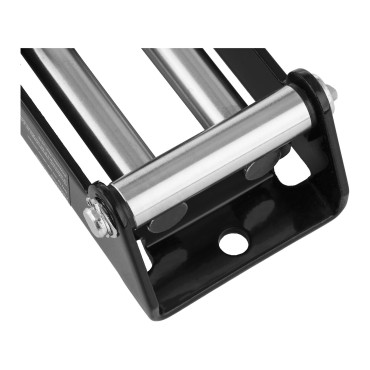

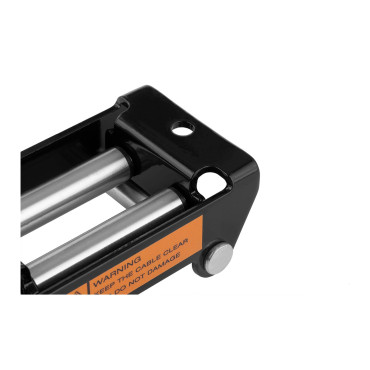

Roller guide for car winch OFF ROAD TRANSMITT TO 1590 kg

Manufacturer number: MSW 10060184
Roller guide for electric extractors effectively facilitate winding rope on the drum the device. This is possible due to the mechanism consisting of Four independent rolls. They minimize friction during collapsing, which increases the life of the rope. The guide is adapted to Watchers with lifting capacity from 907 to 1590 kg.
Product durability is the merit of steel, which is characterized by Resistance to mechanical damage. To increase the protection of the guide against atmospheric conditions, painted it black paint.
Product features:

• - Versatility - fits different models of tide tailors from 907 to 1590 kg,
• - The functionality of - 4 rolls guarantee smooth pulling rope,
• - Durability - steel structure covered with paint.

Technical parameters:

• - Model - Promount RS 2000/3500
• - catalog number - 10060184
• - article - New
• - Material - Steel
• - cover - Black paint
• - Type of guide - Czterorolkowa
• - distance between horizontal rollers - 14.5 mm
• - distance between vertical rolls - 66.3 mm
• - Diameter of rollers - 15.6 mm
• - Spacing of screw holes - 109 mm
• - Requirements for compatible extractors - Matching screw spacing for screws
• - increase - 2000-3500 LBS (907-1590 kg)
• - Dimensions (DXSXW) - 7 x 13 x 5 cm
• - weight - 0.6 kg
• - Dimensions of shipment (DXSXW) - 9 x 14 x 5 cm
• - shipping weight - 0.7 kg

Included:

• Roller guide
