Manufacturer number:

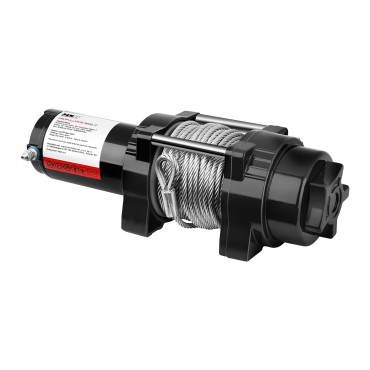

MSW 10060662 Efficient winch of the German brand MSW Created for removing vehicles or other objects from difficult areas. It will work in mountainous places or while traveling off-road.
It perfectly fits large, heavy vehicles, trailers, boats or snow plows. It can also be operated on households or in forestry during, for example, removing trees or logs.
1.3 hp motor (1000 W), along with a large drum and a strong steel line reaches a pressure force of 3500 lbs (1590 kg). This allows for a quick and easy extraction of a vehicle from a ditch or other field obstacle.
Three-stage planetary transmission (Running, backward and manual clutch for quick drop-down rope) Allows you to adjust the transmission of power using a special gear. The reduction coefficient is 153: 1. In turn, the dashed work cycle allows you to operate the engine on the basis of intervals, which does not reach the highest temperature.
In order to increase the durability of the device in the set there is
Steel rope (15.5 m length / 5.5 mm in diameter), which, due to the four-year guide, is resistant to most mechanical damage and even during a frequent change of the retrograde angle. Responds for security
Automatic braking system that will continue the pull-out object, even if there is no electricity. In addition, the winch construction is overloaded and rain, snow or dirt.
Product features: - - Performance - 1000 engine engine generates the pressure force to 1590 kg,
- - Rate - increase 5.10 m / min,
- - Precision - a three-stage gearbox with a reduction coefficient of 153: 1,
- - Durability - strong steel rope,
- - Safety - protection against overheating, overload and automatic braking system,
- - Convenience - Two remotes (wireless and wired) and resistant to moisture and dirt design.
Technical parameters: - - Model - Propullator 3500-C
- - catalog number - 10060662
- - article - New
- - housing material - Aluminum
- - Rope material - Steel
- - engine power - 1.4 km / 1100 W
- - tension - 12 V
- - engine type - Motor with permanent magnet
- - Work cycle - Intermittent
- - gearbox - 3-degree planetary translation
- - gear transmission - 153: 1
- - tide force - 3500kg / 1590lbs
- - speed speed - 5.1 m / min
- - Rope length - 15.5 m
- - Rope diameter - 5.5 mm
- - Rope protection system - 4-step guide
- - Drum diameter - 28 mm
- - braking system - Automatic
- - clutch type - Sliding ring
- - Pilot type - 1 x wired / 1 x wireless
- - Wireless remote control - 30 m
- - Broadcast - 1 x 4 t
- - Mounting plate included - So
- - Dimensions (DXSXW) - 34.5 x 11.5 x 11.2 cm
- - weight - 7.38 kg
- - Dimensions of shipment (DXSXW) - 42 x 29 x 18 cm
- - shipping weight - 12.8 kg

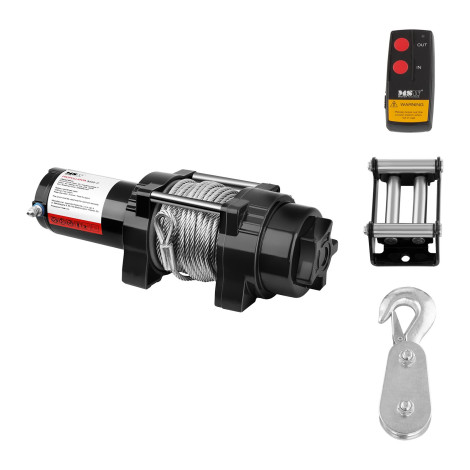

Included: - - winch
- - Control box with wires
- - Mounting bracket for box - 2 pcs.
- - Wired remote
- - wireless remote control
- - Mounting plate

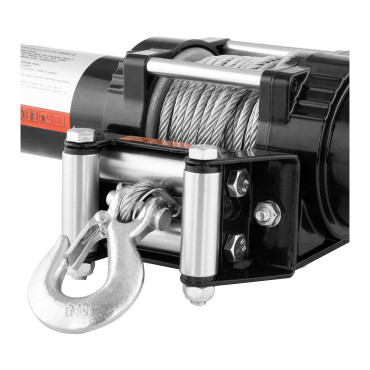

- - 4-Path Roller Roller Guide
- - Broadcast (4 t)
- - hook
- - Mounting accessories
- - EN statement
