Off-road scraper Off Road to the car Rope 13 m increase 1590 kg + remote control

Manufacturer number: MSW 10060669

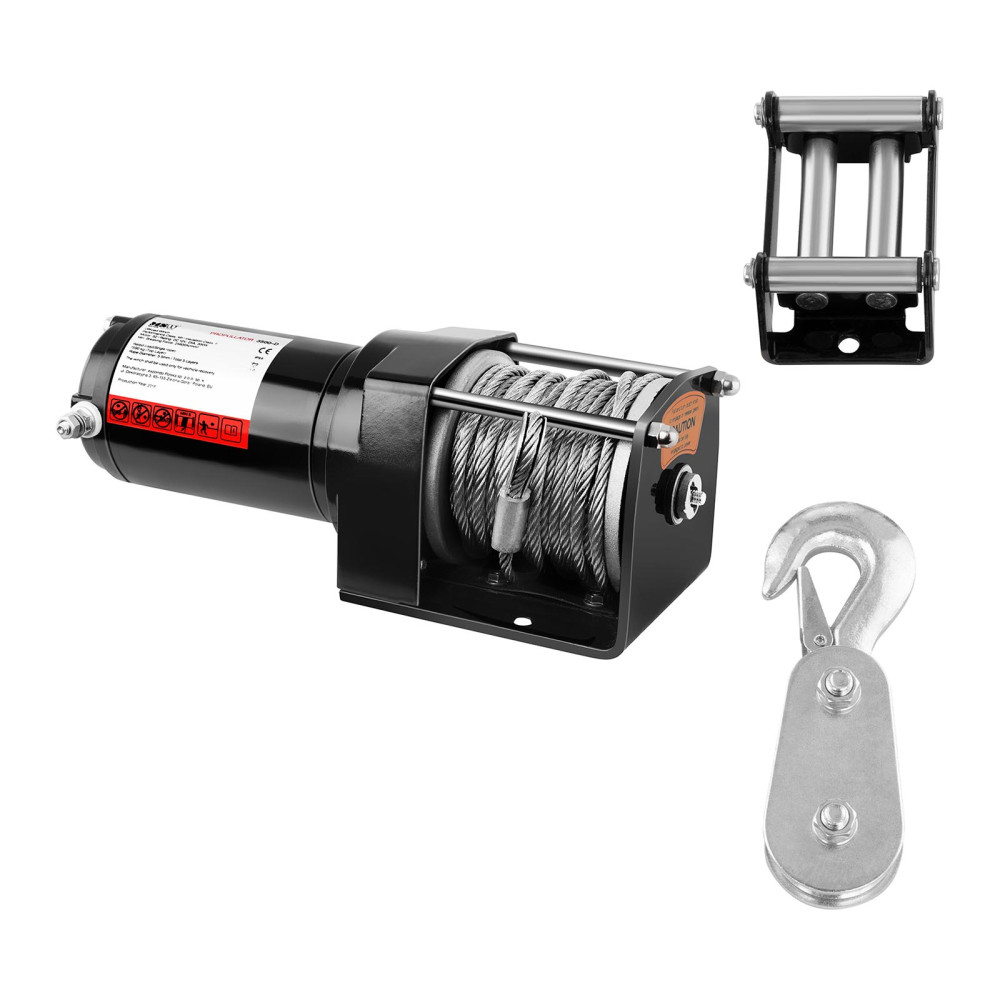

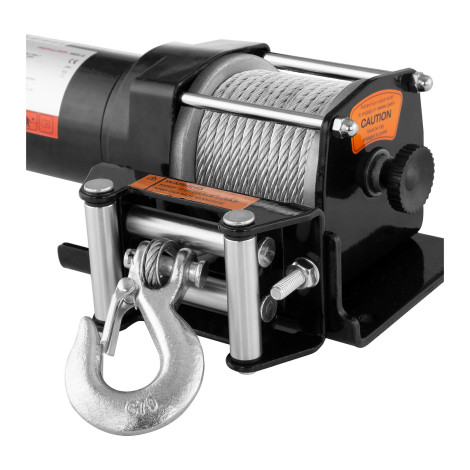

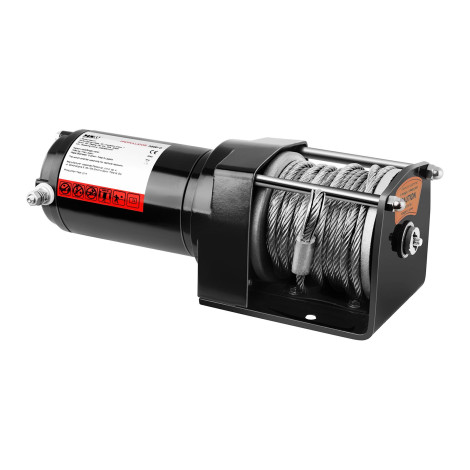

Efficient winch of the German brand MSW Created for removing vehicles or other objects from difficult areas. It will work in mountainous places or while traveling off-road. Fits almost every ATV vehicle, trailers and can also be operated on households during, for example, removing trunks of trees, logs and the like.
  1.3 hp motor (1000 W), along with a large drum, magnet (brushless) and a strong steel line reaches a pressure force of 3500 lbs (1590 kg). This allows for a quick and easy extraction of a vehicle from a ditch or other field obstacle. The winch assembly is facilitated thanks to the use of a special assembly plate.
  Three-stage planetary transmission (Running, backward and manual clutch for quick drop-down rope) Allows you to adjust the transmission of power using a special gear. The reduction coefficient is 153: 1. In turn, the dashed work cycle allows you to operate the engine on the basis of intervals, which does not reach the highest temperature.
In order to increase the durability of the device in the set there is Strong steel line (13 m length / 5.5 mm diameter), which, due to the four-year guide, is resistant to most mechanical damage and even during a frequent change of the retrograde angle. Responds for security Automatic braking system that will continue the pull-out object, even if there is no electricity. In addition, the winch construction is overloaded and rain, snow or dirt.
  Product features:

• - Performance - 1000 engine engine generates the pressure force to 1590 kg,
• - Rate - 3.3 m / min,
• - Precision - a three-stage gearbox with a reduction coefficient of 153: 1,
• - Durability - strong steel rope,
• - Safety - protection against overheating, overload and automatic braking system,
• - Convenience - Remote control with a long cable, a convenient assembly plate and compact sizes.

Technical parameters:

• - Model - Propulnerlator 3500-D
• - catalog number - 10060669
• - article - New
• - housing material - Aluminum
• - Rope material - Steel
• - engine power - 1.3 km / 1000 W
• - tension - 12 V
• - engine type - Motor with permanent magnet
• - Work cycle - Intermittent
• - gearbox - 3-degree planetary translation
• - gear transmission - 153: 1
• - tide force - 1590kg / 3500lbs
• - speed speed - 3.3 m / min
• - Rope length - 13 m
• - Rope diameter - 5.5 mm
• - Rope protection system - 4-step guide
• - Drum diameter - 32 mm
• - braking system - Automatic
• - clutch type - Coupling
• - Pilot type - Wired
• - Dimensions (DXSXW) - 11.5 x 31 x 19 cm
• - weight - 7.7 kg
• - Dimensions of shipment (DXSXW) - 34 x 29 x 17 cm
• - shipping weight - 9.2 kg

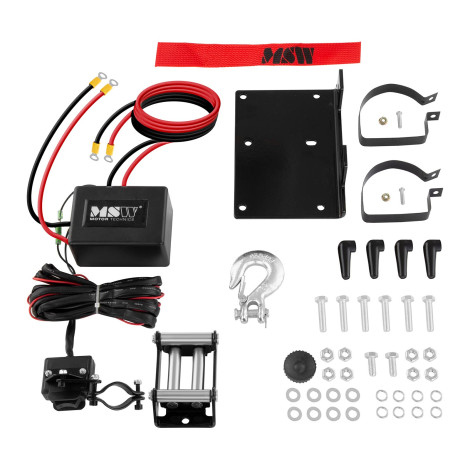

Included:

• - winch,
• - Control box with wires,
• - Mounting bracket for box - 2 pcs,
• - wired remote control,
• - Mounting plate,
• - 4-Path Roller Roller Guide,
• - hook,
• - mounting accessories,
• - EN statement.
