Car varnish thickness meter Range 0 - 1400 μm

€102.51
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: 10030312

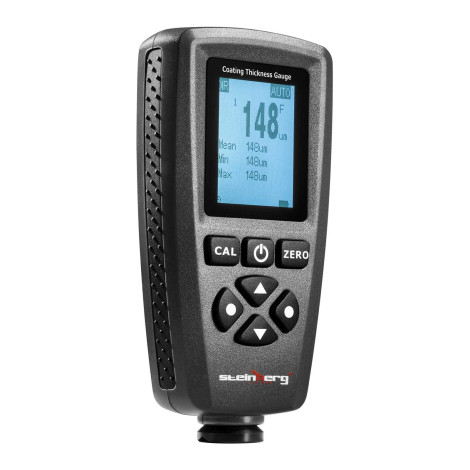

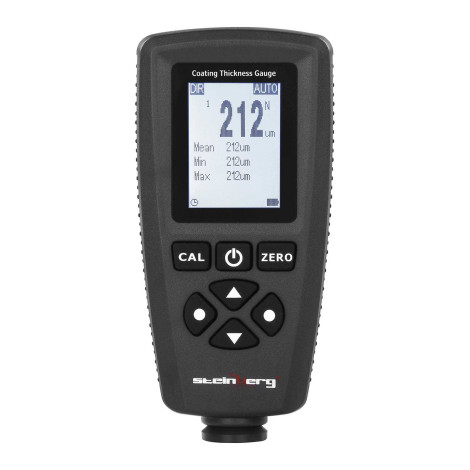

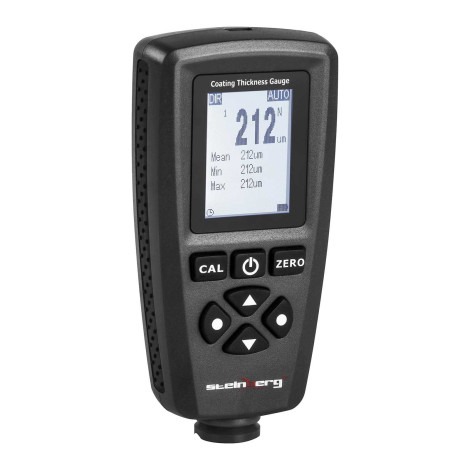

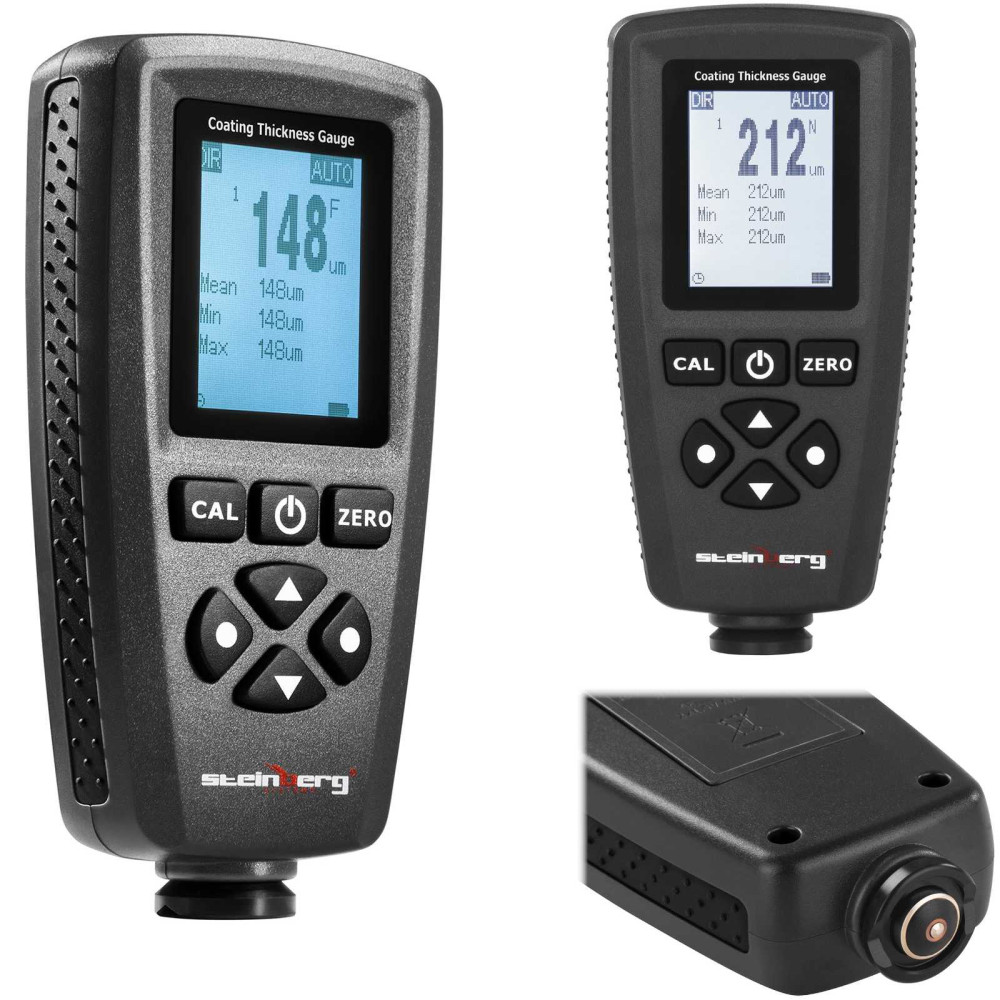

Precise lacquer thickness meter Steinberg Systems It is able to measure measurements in the field from 0 to 1400 μm with an accuracy of ± 2.5% + 1 μm. The device is adapted to work simple surfaces and curved. This is due to "v" letter tipswhich provides a minimum measurement area With a 20 mm, 5 mm value for convex surfaces and 25 mm for concave.
The tester has many functions, m.in. Research mode, measurement method, or measurement unit (μm, mm, miles). The device also allows you to save up to 320 resultsand thanks Mini USB port Keep them on your computer. The meter is adapted to work at temperatures from 0 to 50 ℃ and air humidity 20-90%.

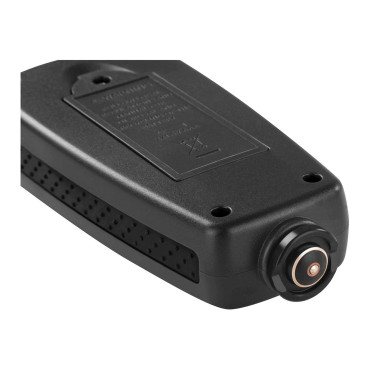

The device's operation is simple due to convex buttons and illuminated film LCD. The study can be carried out in two ways: Point or continuously. The first of them consists in the local application of the meter and the other on the tester drag after the tested surface. The spring tester provides safety during measurement, No risk of scratching varnish. Completion of the study is announced by a beep.
In a set with a tester, there are Accessories necessary for its proper functioning. Among them are: USB cable, software CD and Calibration plates. With the help of the latter, the user can independently provide precise operation of the meter. Additionally A convenient suitcase It will facilitate transporting the entire set.
The device is powered by Two 1.5 V AAA batteries. A special system disables the tester when it is not used for 3 minutes, allowing Extend battery life.
Product features:
  • - The utility of - quickly measures the car body coating and thickness of the metal,
  • - Versatility - will be used in the automotive industry and the metal industry,
  • - Multi-tasking - three measurement modes: for ferromagnetics, for materials immaying and automatic mode,
  • - Precise measurements - measuring with an accuracy of 2.5% + 1 μm,
  • - Performance - Ability to work at 0-50 ℃ and humidity 20-90%

Technical parameters:
  • - Model - SBS-Ct-123
  • - catalog number - 10030312
  • - housing material - ABS plastic, rubber
  • - power supply - 2 x 1.5V AAA batteries
  • - Measurement methods - Magnetic induction (for ferromagnetics) Whirl current (for other materials)
  • - Measurement modes - Automatic detection Ferromagnetics Other materials
  • - measurement range - 0 - 1400μm
  • - Accuracy of measurements - ± 2.5% + 1μm
  • - resolution - 0.1 μM in 0μm - 99.9μm | 1μm in the range of 100μm - 999 μm | 10μm in the range> 1000μm
  • - Measurement units - μm, mm, miles
  • - Minimum average measurement surface - Ø20 mm
  • - minimal radius of curving - 5 mm for convex surfaces 25 mm for concave surfaces
  • - Minimum material thickness - 0.2 mm for ferromagnetics 0.05 mm for other materials
  • - ambient temperature range during measurements - 0 - 50 ℃
  • - Humidity range during measurements - 20%-90%
  • - storage temperature - from -10 ℃ to 60 ℃
  • - Built-in memory capacity - Max. 320 results of measurements
  • - Method connected to a computer - Mini usb
  • - Batteries in the set - So
  • - Calibrating tiles included - So
  • - Portable suitcase - So
  • - Mini USB cable length - 0.75 m
  • - Dimensions (DXSXW) - 11.1 x 5.5 x 2.5 cm
  • - weight - 0.1 kg
  • - Dimensions of shipment (DXSXW) - 24.5 x 19 x 5 cm
  • - shipping weight - 0.5 kg

Included:
  • - varnish thickness meter - 1 item
  • - Mini USB cable - 1 item
  • - CD with software - 1 item
  • - Calibration plates - 6 pcs
  • - AAA batteries - 2 pcs
  • - Portable suitcase - 1 item
  • - User manual
