Manufacturer's code:
10030973

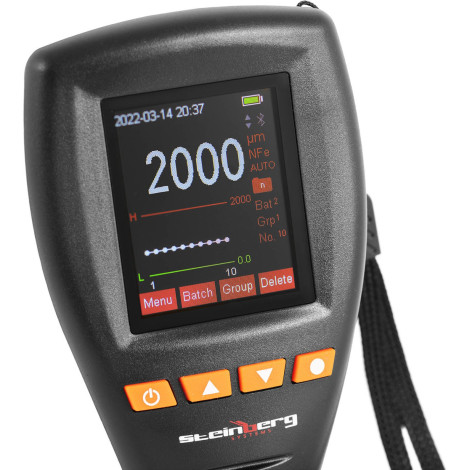

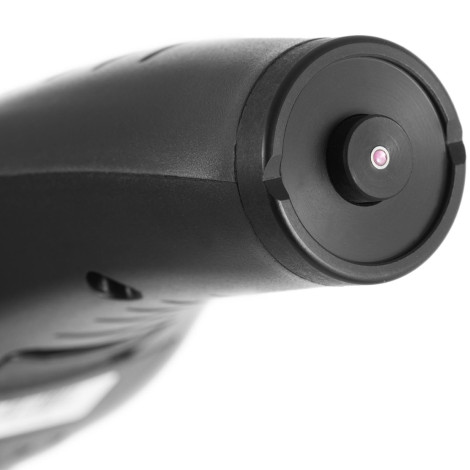

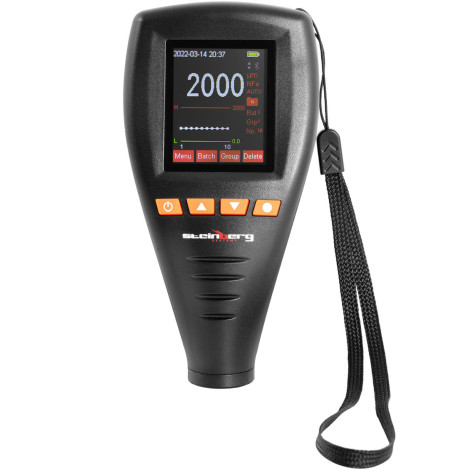

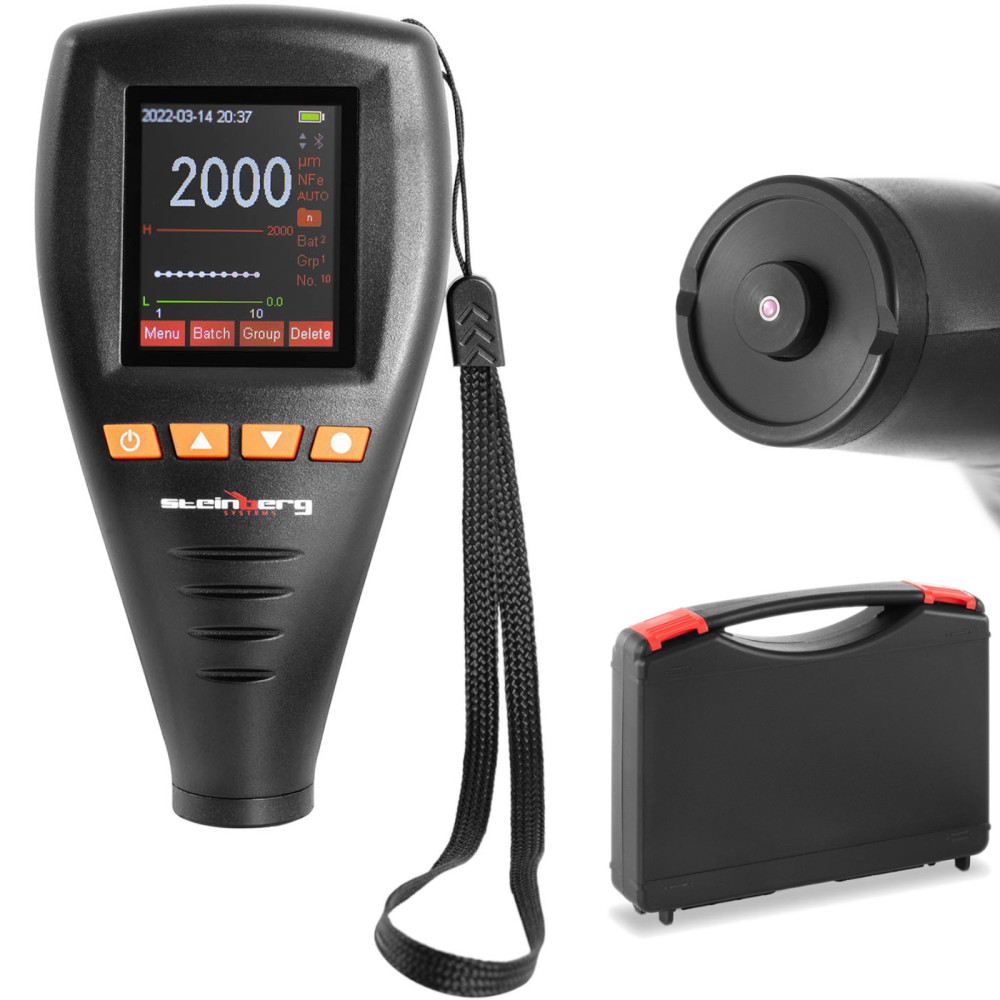

Meter of the steinberg varnish thickness It allows for a few seconds to check how thick is a layer, eg paint or plastic on ferromagnetic metals. The device has adjustable display brightness, alarm volume, automatically rotating screen, switching off after idle time as well as analysis software with various measurement values. It also has various operating modes and battery warning indicator. Bluetooth allows you to conveniently send data to your computer. The meter was equipped with an integrated, very sensitive probe that measures with accuracy
+ / -3% + 1 μm. The meter has a function
calibration of zero point. For a better effect, use an uncoated substrate sample that you want to measure or smooth zero disc. The device allows you to check unmagnetic layers on different surfaces, such as stainless steel, iron, aluminum or copper with vortex tests. The range of measurements is
0-2000 μm, Do not damage the varnish. Clear
LCD display It allows you to easily read the measurement.
Product features: - - accurate measurements in a large range of 0-2000 μm,
- - adjustment of the display brightness, automatically rotating screen, several measurement modes,
- - checks non-metallic coatings on different surfaces,
- - a small dimension ideal for transport,
- - Resistant to scratches the probe, vortex tests.
Technical parameters: - - Model - SBS-Tg-3000
- - Producer code - 10030973
- - Product condition - New
- - power supply - Battery
- - Accuracy - ± 3% + 1 μm
- - resolution - 0.1 μm (0-100 μm) 1μm (> 100μm)
- - measurement range - 0-2000 μm
- - IP protection degree - Ip40
- - battery power - So
- - Dimensions (DXSXW) [cm] - 23.5 x 18 x 4
- - weight [kg] - 0.4
- - Dimensions of shipment (DXSXW) [cm] - 24.5 x 19 x 5
- - shipping weight [kg] - 0.5

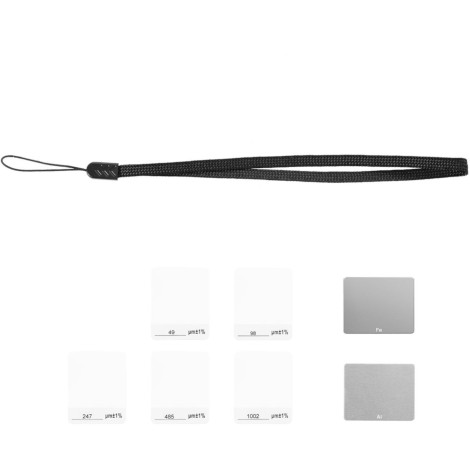

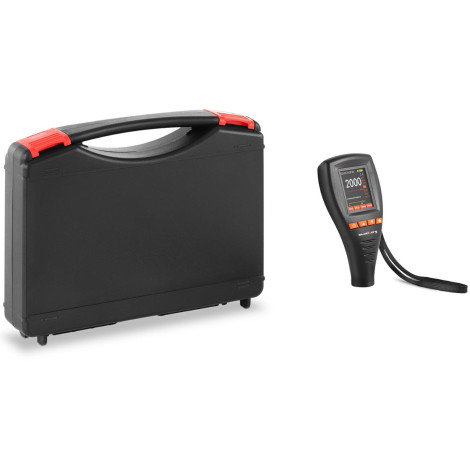

Included:
