Manufacturer's code:
10030591Paint thickness gauge brand Steinberg Systems This tool is necessary in trafficking cars and in the metal and chemical industry. The tester will measure the coating of paint paint materials
ferromagnetic and
niemagnesujących. Precision of measurements is

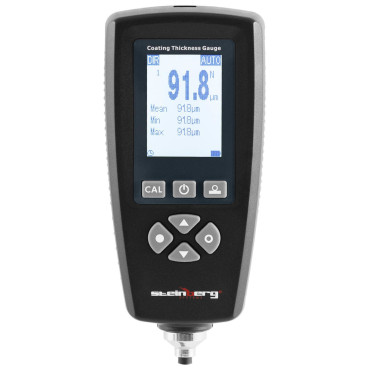

± 2% + 1 μm. Panel
LCD with the backlight function. The result can be saved in memory to
2000 results. The measurement range is
0-2000 μm. The lacquer meter works in 2 modes: from
ferromagnetykami with induction
the magneticand with other materials using
vortex. The minimum measuring surface is
Ø20 mm. The minimum radius of curving for the convex surfaces has
5 mmfor concave

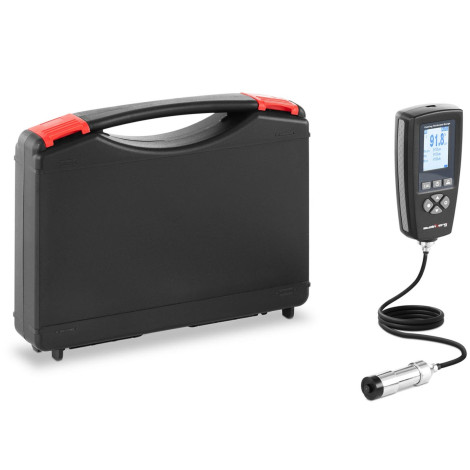

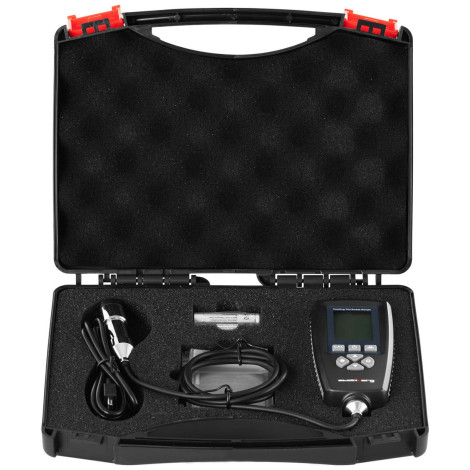

25 mm. The whole set is in
suitcase. To connect hardware to your computer, use a cable
USB. Battery
2 x aaa. Equipment shows reliable results in terms of temperature
0 ~ 50Deg C and humidity between
20 A 90%.
Product features: - - precision ± 2% + 1 μm,
- - Memory to 2000 data,
- - measuring range 0-2000 μm,
- - 2 modes measurement
- - Practical suitcase.
Technical parameters: - - Model - SBS-Ct-2000
- - catalog number - 10030591
- - article - New
- - housing material - ABS: plastic and silicone
- - Minimum material thickness - 0.2 mm magnetic induction / 0.05 mm whirl current
- - Accuracy of measurements - ± 2% + 1 μm
- - resolution - 0.1 μm
- - Display - LCD
- - ambient temperature - 0 ~ 50Deg C
- - storage temperature - -10 ~ 60DEG C
- - a connection to a computer - USB
- - Memory memory capacity - 2000 results
- - Battery type - 2 x aaa
- - Measuring method - Magnetic induction / Whirl current
- - Material selection modes - Magnetic induction / Whirl current
- - measuring range - 0-2000 μm
- - Units of measurement - μm, mm, miles
- - Minimum diameter of the measurement area - Ø20 mm
- - Minimal radius of curvature - 5 mm for convex surfaces / 25 mm for concave surfaces
- - Permissible humidity of the measured surface - 20 ~ 90%
- - Mini USB cable length - 0.8 m
- - Dimensions (DXSXW) - 10.5 x 5 x 2.5 cm
- - weight - 0.2 kg
- - Dimensions of shipment (DXSXW) - 25 x 19 x 6 cm
- - shipping weight - 0.6 kg

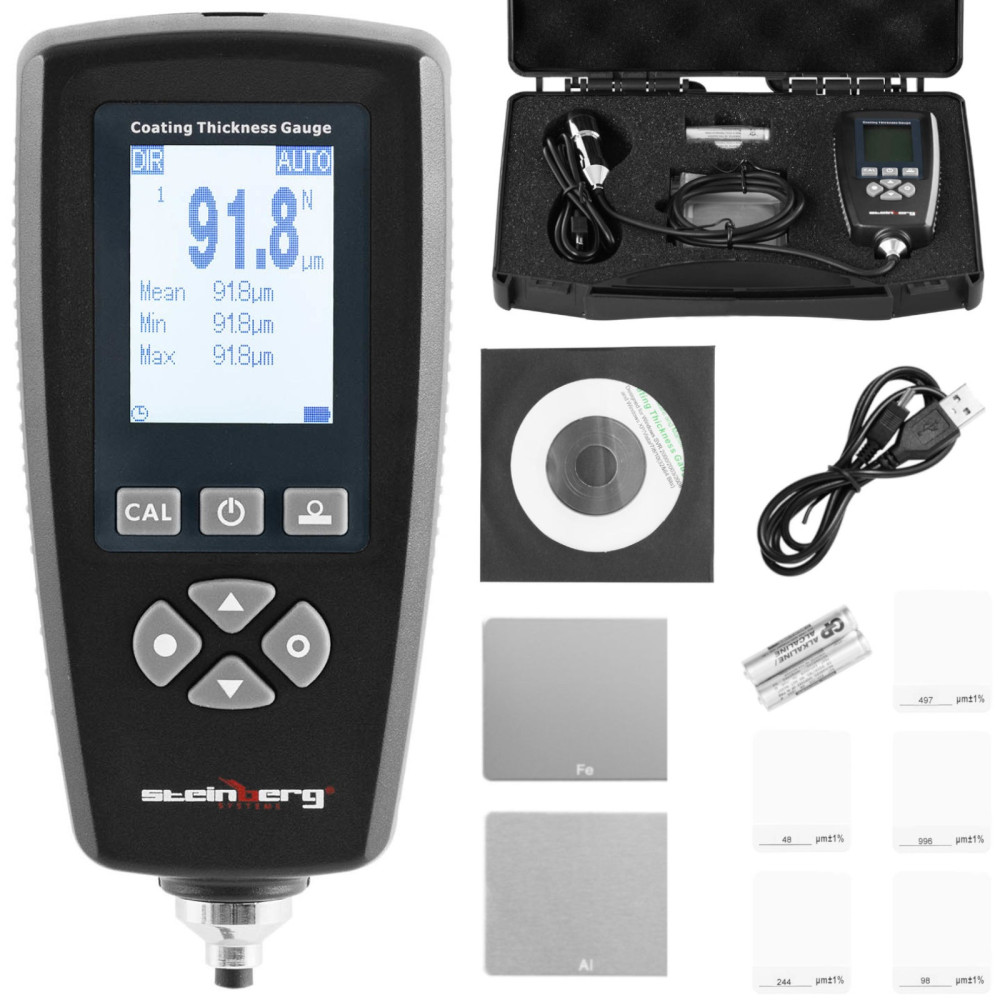

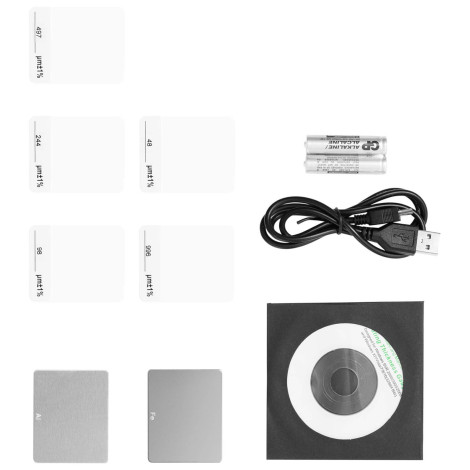

Included: - - lacquer thickness meter,
- - a suitcase,
- - batteries,
- - Operating instructions.
