Manufacturer's code:

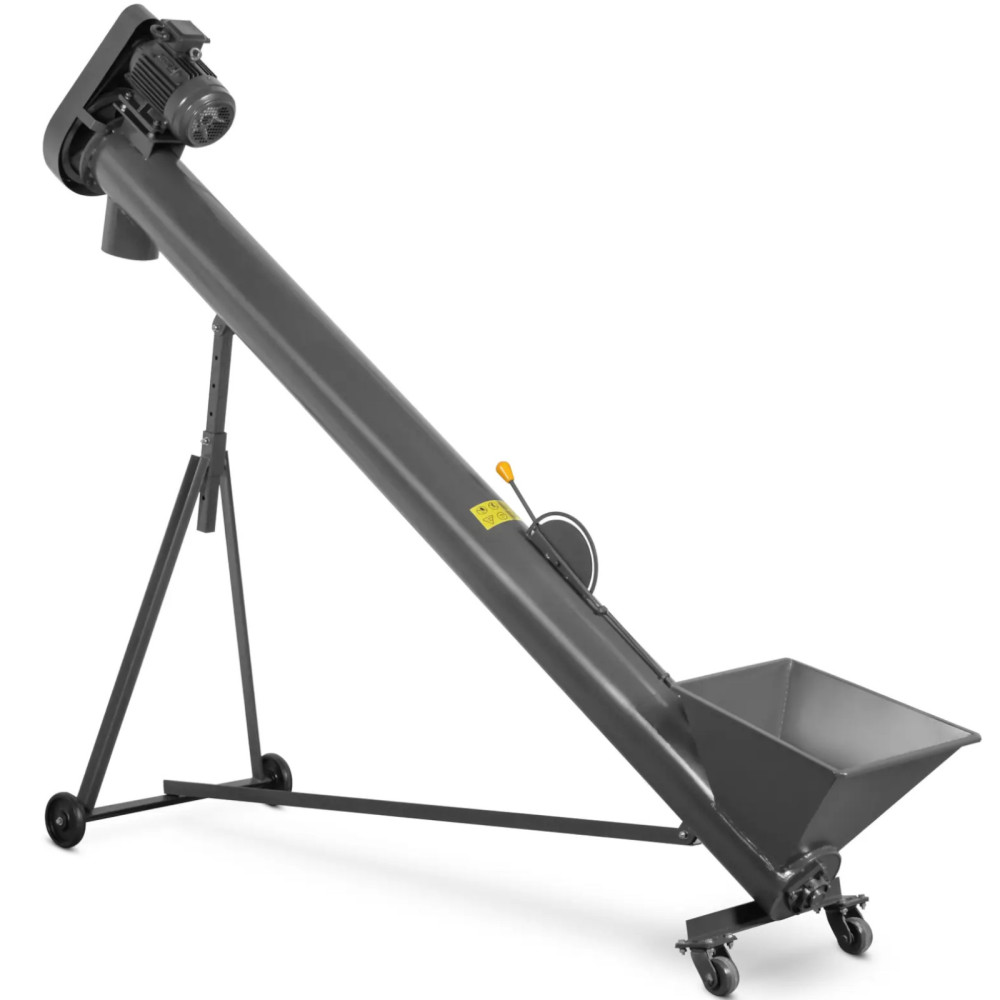

10280610Wiesenfield's worm tray You can use to transport loose materials such as cereal, sawdust or fertilizer up. Regardless of whether it comes to loading the trailer, or the raw material for machines. The screw conveyor is great for constant filling of the pelecials.
With 80 - 1000 kg / h performance, you can accurately adjust the speed of the screw tray to the press requirements. In this way, you can optimize your work, increase productivity and get an excellent pellet in a short time.
The height of the transporter can be adjusted on seven levels in the range from 125 to 175 cm. Just set a 3 m long pipe on four wheels and put the outlet of the conveyor over the pelecial pole. Sawdust or other materials are easily loaded into a large conveyor inlet. It can be reduced or enlarged depending on the volume of the product.
The raw material reaches the press evenly through the transport pipe with a diameter of 220 mm. Thanks to a thickness of 3 mm, the pipe is characterized by special durability and suitable for continuous use, even with high efficiency.
Product features: - - the screw feeder reaches productivity from 80 to 1000 kg / hour.
- - the screw conveyor can be set in 7 steps from 125 to 175 cm,
- - adjustable flow will allow you to adjust the amount of material for pelecial performance,
- - a screw carrier pipe with a diameter of 220 mm has a 3 mm thick wall,
- - Thanks to four wheels, the feeder can be optimally set.
Technical parameters: - - catalog number - 10280610
- - article - New
- - Model - -Knows sc-200
- - frequency [Hz] - 50
- - Power type - Network
- - Material - Carbon steel
- - Color - Gray
- - Tension [V] - 400
- - IP protection degree - Ip55
- - wheel size [mm] - 45 x 80
- - Production [kg/h] - 80 - 1000
- - Nominal speed [obr./min] - 1400
- - plug - 5-pin
- - power [W] - 2200
- - pipe diameter [mm] - 220
- - adjustable height - 125 - 175 cm
- - Insulation class - F
- - IEC protective class - And
- - wall thickness pipe [mm] - 3
- - Device work cycle - S1 (continuous work)
- - Power cord - 3 m
- - pipe length - 3 m
- - Spiral diameter - 190 mm
- - Number of wheels - 4
- - Emergency switch - So
- - overload protection - So
- - Dimensions (DXSXW) - 300.8 x 80.5 x 234.5 cm
- - weight - 155 kg
- - Dimensions of shipment (DXSXW) - 64 x 330 x 84 cm
- - shipping weight - 221 kg
