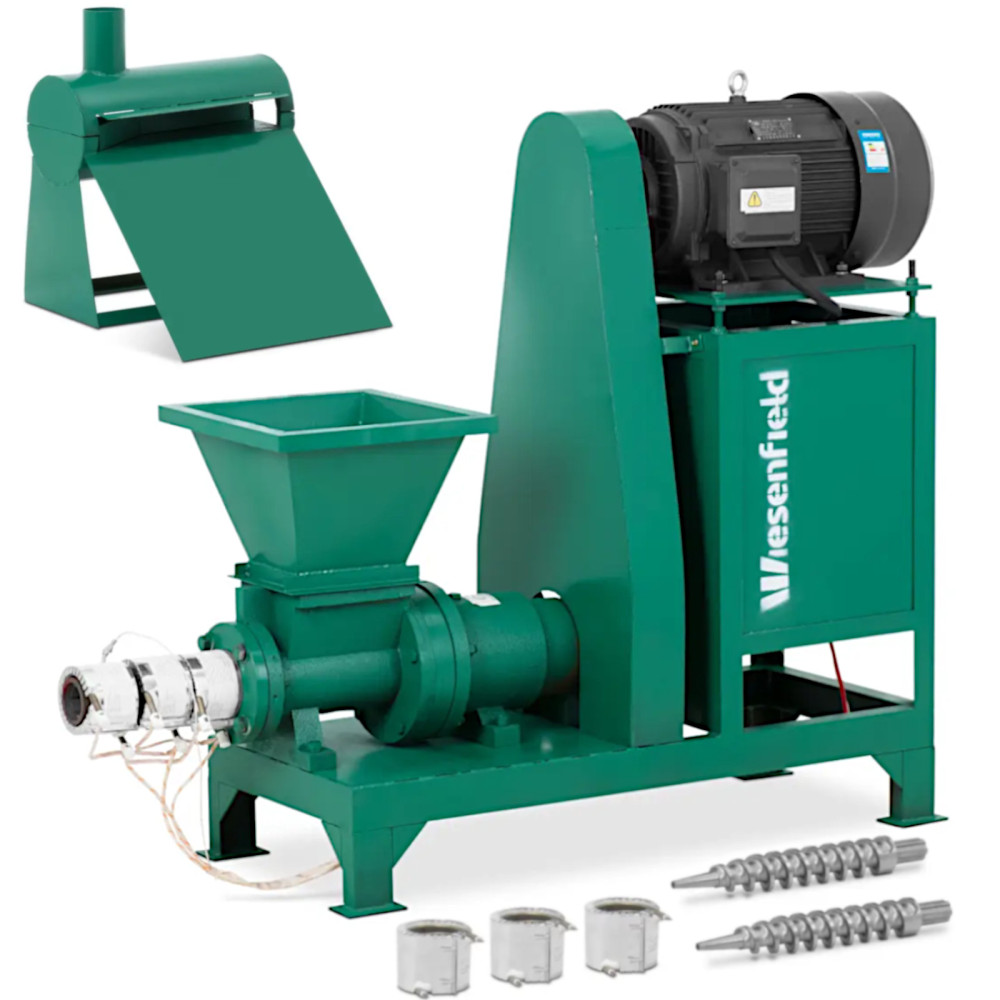

Briquetter machine for the production of briquettes with sawdust chips 300 kg / h 21 kW

Manufacturer's code: 10280535

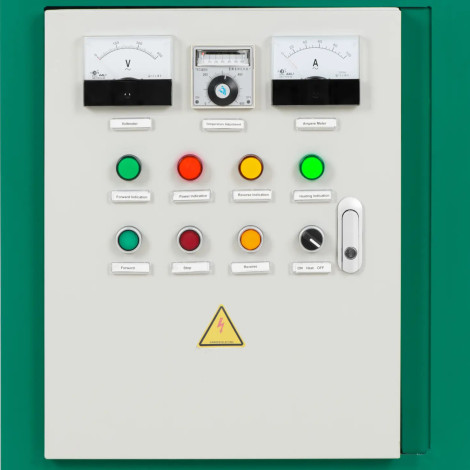

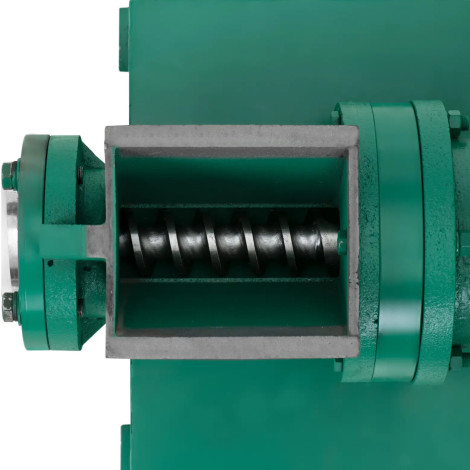

Briqueters brand Wiesenfield It will allow you to quickly and easily produce briquettes from wood sawdust or other biomass, e.g. parts of plants, paper scraps or chips. The press for briquetting is characterized by high efficiency and low consumption in everyday work. All components are optimally coordinated and will allow 300 kg per hour to produce up to 300 kg. The briquet machine impresses with the total power of 21 kW. Control panel can be handled without any difficulty. With its help, the direction of the snail and the temperature of the heating pipes are determined to obtain the optimal shape. The shaft shaped briquettes can have a maximum length of 25 cm, Therefore, it is easily stored without dust. To start production, pour biomass into a large tank with a capacity of 32 L. Individual parts of the raw material can not be greater than 5 mm. In addition, make sure that they contain less than 15% moisture. The optimal value is approx. 12%. Snail will transport biomass in a briquette machine using heating pipes. 15000 motor motor in drives the screw to 960 rpm. The heating element reaches up to 6000 w, which will allow you to form a raw mix at high temperature. As a result, a heavily briquette will be made, which is ideal for storing or further processing.
Product features:

• - using briqueters can effectively process wood sawdust and biomass, such as chips, paper scraps or vegetable residues with humidity below 12%,
• - the briquet press rotates at 960 rpm and reliably gives biomass for heating elements,
• - from the heating pipes of the 6000 W briquetting machine can be obtained by solid rollers up to 25 cm long,
• - thanks to the perfectly matched components, the press for briquetting will produce up to 300 kg per hour,
• - A 32-liter briquetter tank will always provide a large amount of raw material.

Technical parameters:

• - catalog number - 10280535
• - article - New
• - Model - -Knows bm-100
• - frequency [Hz] - 50
• - Material - Steel
• - Color - Black, red
• - Tension [V] - 380
• - IP protection degree - Ip55
• - Size of the load box [mm] - 380 x 380 x 320
• - Feed production efficiency [kg/h] - 300
• - Hole diameter [mm] - 20
• - heater power [W] - 6000
• - Insulation class - F
• - Protection class - And
• - Permissible humidity of the measured surface [%] - 10-15
• - Device work cycle - S1
• - Maximum power - 21 kw
• - capacity - 32 L
• - Engine - Power - 15000 W
• - Maximum cut length - 250 mm
• - engine speed [obr./min] - 960
• - Dimensions of shipment (DXSXW) - 192 x 62 x 159 cm
• - shipping weight - 548 kg

Included:

• - briquetter
• - Cylinder
• - 3 heating rings
• - 3 tips
