Manufacturer's code:
10280401Company's ensemble
Wiesenfield It is intended for the production of pellets for feeding animals, fertilization and heating. Performance in the production of feed is up to
300 kg / h In the case of processing wood chips - to
120 kg / h. The device allows you to independently compose of animal foods and dosing suitable vitamins and minerals to fertilizer sticks or feed granules produced from maize, oats or hay. Thanks to the processing of wood tunions in sawdust, a friendly pellet can be obtained. The descendant should be heated to the temperature from
60 to 80Deg C Using vacuum heat treatment. Thanks to this, the surfaces will not be damaged and deformation during heating. The mass is extruded thanks to the use of a massive roll, which shows the contents through the matrix with a diameter
200 mm. The result is a pellet with a diameter

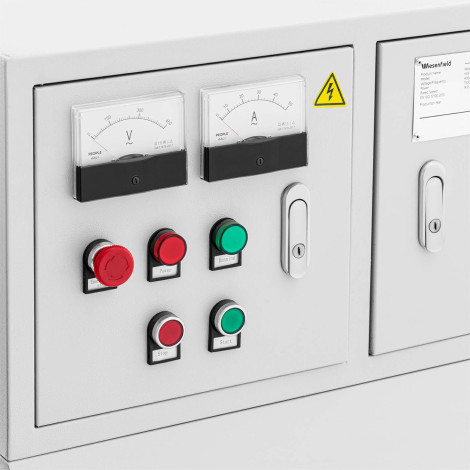

6 mm. The ejection gutter facilitates direct filling of bags. The control cabinet in the device is transparent and intuitive. The ensemble has an emergency switch that guarantees safety during use. The device is powered
3-phase shock
400 V, It is delivered without a connection plug. The device's mobility ensures solid wheels.
Note !!! When buying a peleciary, you must also order a pellet binder (no
10530000). Built-in matrices and rolls can be used for
300 hours. After the recommended work time of parts, parts should be replaced immediately.
Product features: - - produces pellets for feeding animals, fertilization and heating,
- - processes 200 - 300 kg / h for feed or 80 - 120 kg / h chips,
- - 7500 W motor provides speed 1455 rpm,
- - Pellet retains longer life thanks to heating to a temperature from 60 to 80DEG C,
- - intuitive, compact, mobile and easy to use.
Technical parameters: - - catalog number - 10280401
- - article - New
- - Model - -Knows pm-2000b
- - Material - Nylon, Steel
- - Continuous working time [h] - 8 - 10
- - Size of the matrix holes [mm] - Ø 6
- - Diameter of the matrix [mm] - 200
- - Emergency switch - So
- - IP protection degree - IP55 (engine), IP40 (control cabinet)
- - Feed production efficiency [kg/h] - 200 - 300
- - frequency [Hz] - 50/60
- - operating temperature range [deg C] - 60 - 80
- - Production efficiency with sawdust [kg/h] - 80 - 120
- - rotational speed [obr./min] - 1455
- - Tension [V] - 400
- - power [W] - 7500
- - wheel material - Nylon
- - wheel size [mm] - Ø 180 x 32

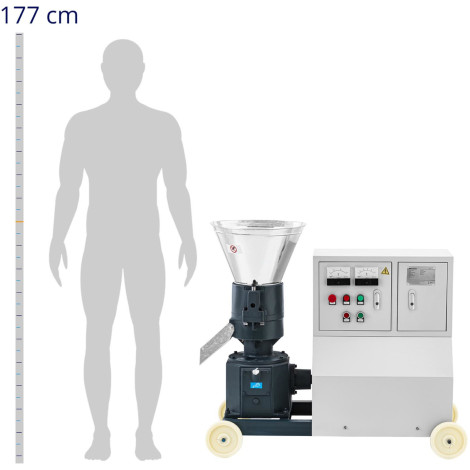

- - Dimensions (DXSXW) - 118 x 50 x 98 cm
- - weight - 204 kg
Included: - - Weleciary
- - tank
- - filling funnel
- - Control unit
- - oil syringe
- - Installation tools (key, screwdriver, peg)
- - cover
- - Delivery without a network plug
