Matrix strainer for pellets pelleciarki Wi-PM-3000 Wed. 8 mm

Manufacturer's code: 10280162

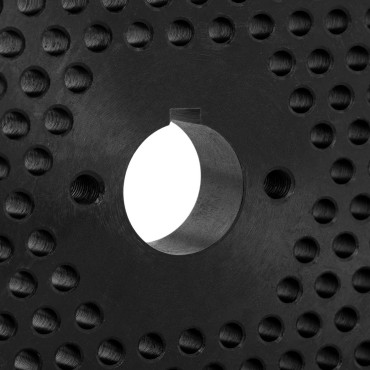

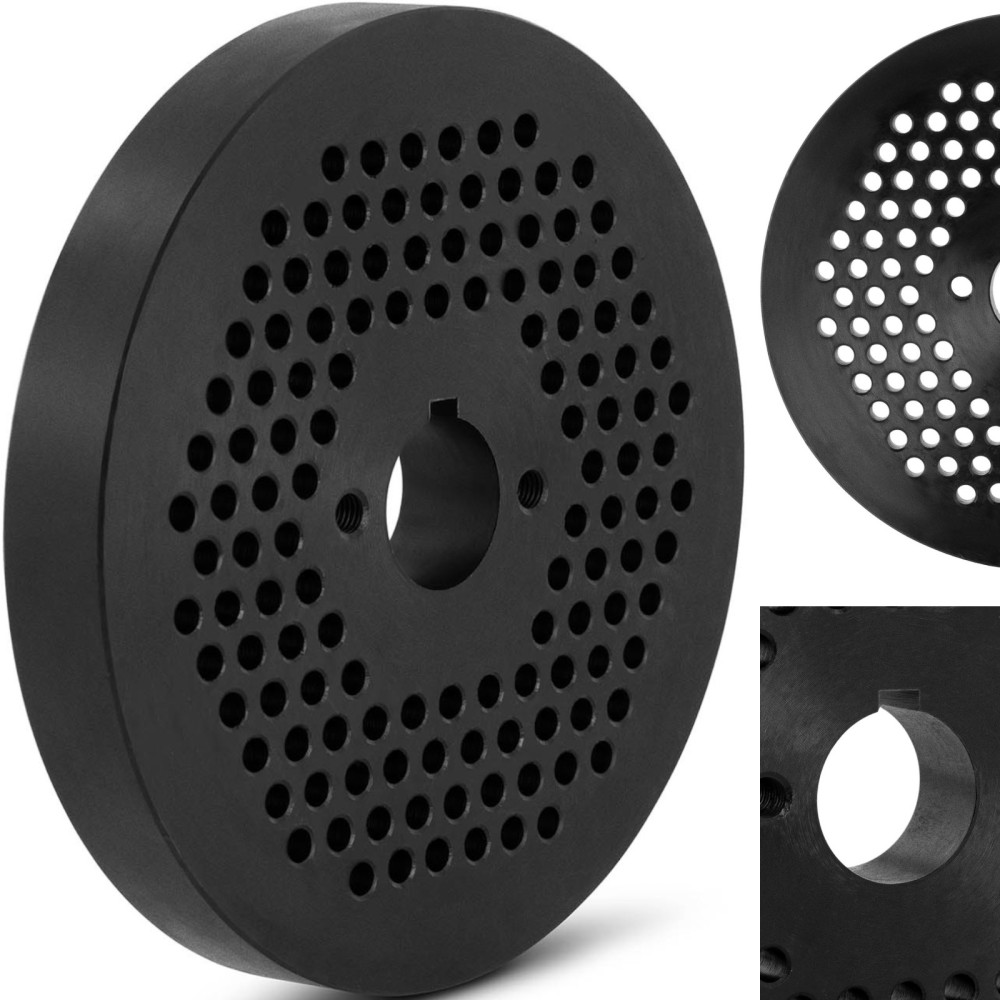

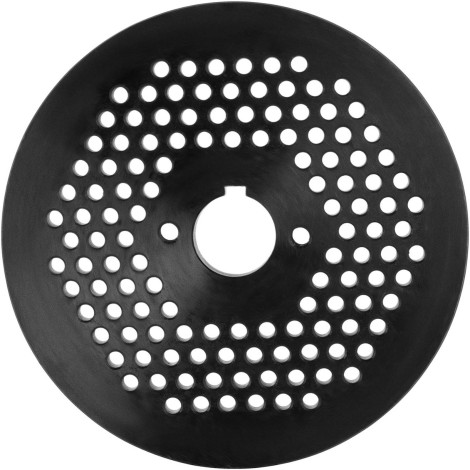

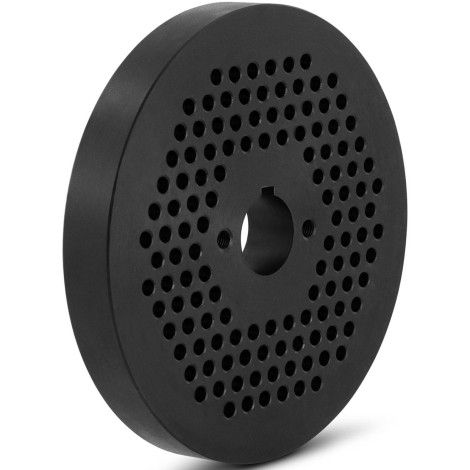

Market for Pelleciarki Brand Wiesenfield It will work for the production and forming of pellets. The matrix was made of durable steel alloy, easily withstanding intense production, retains its shape and reliably produces granules diameter of 8 mm. Matrix Fits WIE-3000 PM-3000 The same brand. Dimensions 25 x diameter 230 mm They allow it to be accurately placed under the pressure roller. During assembly, make sure that there is looseness between the matrix and the roller from 0.1 to 0.3 mm. Granules, depending on the composition, can be used as fuel, feed or fertilizer.
Product features:

• - Fits Pelleeciarki Wi-PM-3000 (10280045) Wiesenfield brand,
• - Size of the matrix opening for granules with a diameter of 8 mm,
• - dimensions 25 x ø230 mm correspond to the carefully pelleciary Wi-PM-3000,
• - made of alloy steel

Technical parameters:

• - Model - -Knows PMA-38
• - catalog number - 10280162
• - article - New
• - Material - Alloyal steel

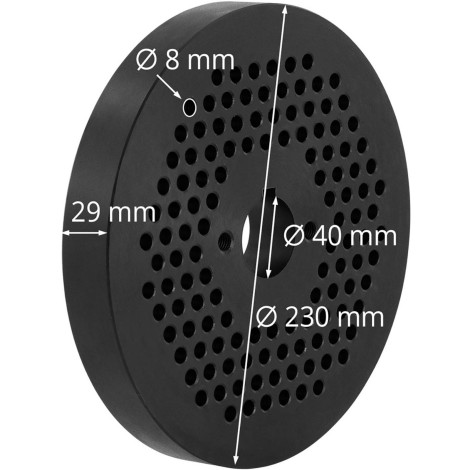

• - size [mm] - 25 x Ø230
• - Size of the matrix holes [mm] - 8
• - Dimensions (DXSXW) [cm] - 23 x 23 x 3
• - weight [kg] - 7,6
• - Dimensions of shipment (DXSXW) [cm] - 25 x 25 x 14
• - shipping weight [kg] - 7,9

Included:

• - Matrix for pelleciarki
