Manufacturer's code:

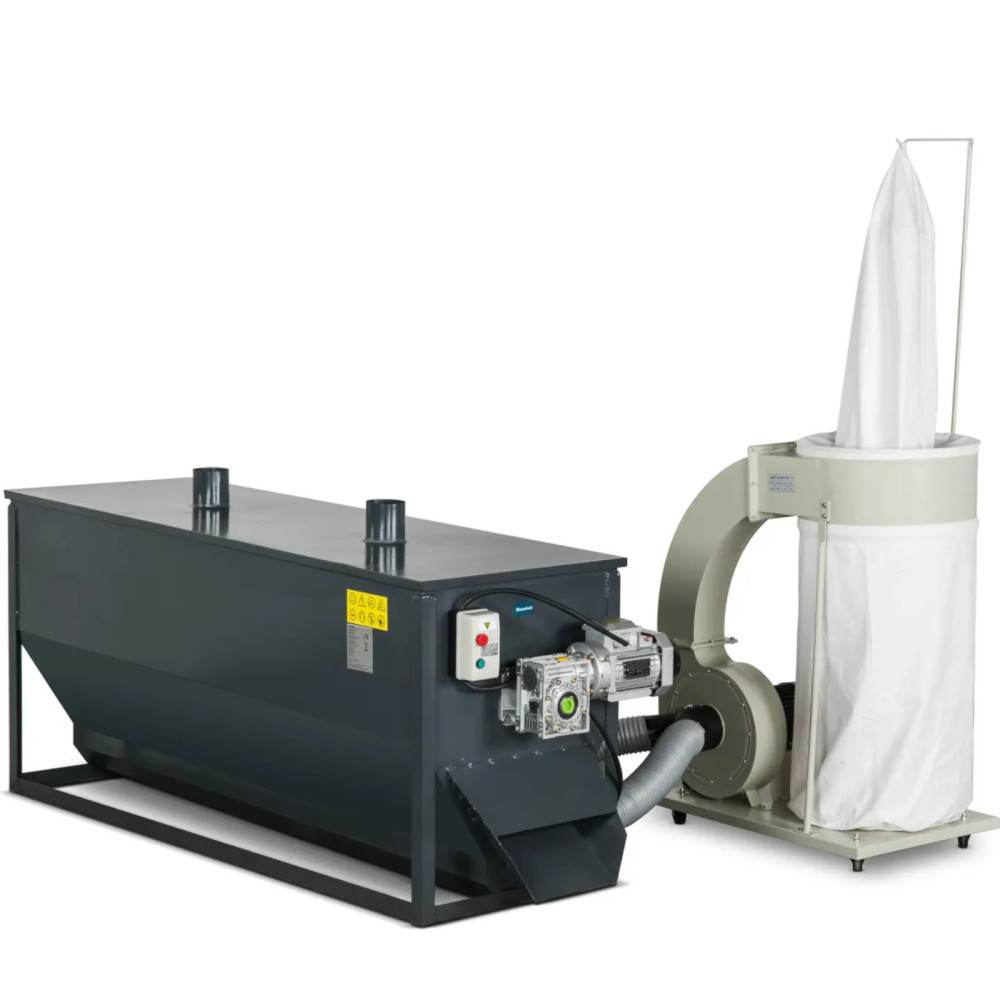

10280608Cooler for the Wiesenfield Pellet It will allow you to cool the granulate to continue to process it or store it.
With 500 - 700 kg / h performance, even large amounts are not a problem and can be made in a short time to 5Deg C above room temperature. In addition, the radiator separates the pellets from dust and residue with a diameter less than 4 mm. In this way, a hardened, cool and clean pellet can be obtained, which is ideal for further processing. The pellet cooler consists of two teams. The cooling unit is equipped with a unique sliding valve and an effective emptying module that provides a liquid processing process.
Perforated steel drum rotates at 1400 rpm in a solid, reducing steel housing noise. This reduces the temperature of the pellet in the radiator in a minute. Dust and other residues are directed through the extraction to the second device assembly where they are collected. This allows not only to obtain a clean pellet, but also to re-use the residues collected. Both teams are connected to two flexible hoses.
For safe operation, the pellet cooler is equipped with overheating protection and an emergency switch.Product features: - - the pellet cooler lowers the temperature to 700 kg / h granules in a screen drum reaching 1400 rpm,
- - the radiator will allow for 5DEG C above room temperature within 1 minute on the cycle,
- - the device reliably separates dust and fine particles from finished granules,
- - a unique sliding valve and effective emptying module ensure a liquid processing process,
- - Closed steel radiator housing reduces noise and overheating protection and emergency switch ensure safety.
Technical parameters: - - catalog number - 10280608
- - article - New
- - Model - -Knows PC-200
- - frequency [Hz] - 50
- - Power type - Network
- - Material - Carbon steel
- - Color - Gray
- - Tension [V] - 380 - 400
- - IP protection degree - Ip55
- - Cooling time [min] - 1
- - plug - 5-pin
- - Cooling performance [W] - 1100
- - capacity - 500 - 700 kg / h
- - engine speed [obr./min] - 1400
- - Screen size [mm] - 4
- - Cooling efficiency - Room temperature + 5Deg C
- - Insulation class - F
- - Protection class - And
- - Permissible humidity of the measured surface [%] - 2 - 3
- - Device work cycle - S1 (continuous work)
- - Power cord - 3 m
- - suction engine power - 1500 W
- - Emergency switch - So
- - overload protection - So
- - Dimensions (DXSXW) - 220.5 x 189.5 x 195 cm
- - weight - 234.5 kg
- - Dimensions of shipment (DXSXW) - 130 x 323 x 168 cm
- - shipping weight - 288.25 kg
Included: - - Pellet cooler
- - 2 Connection hoses
