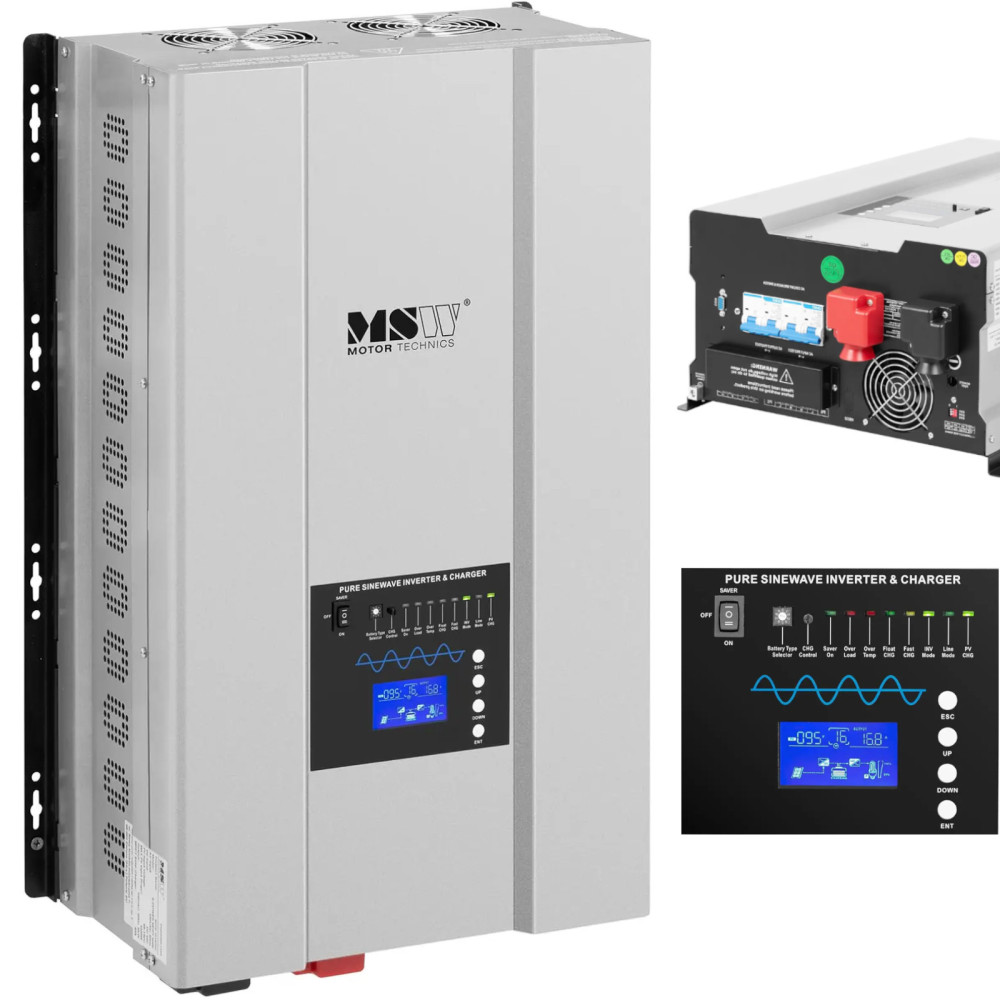

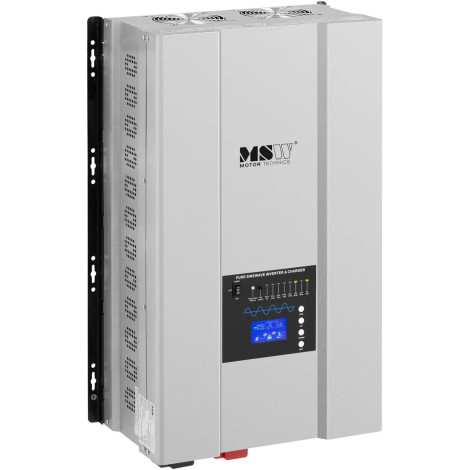

Inverter Inverter Solar MPPT Off-Grid for LCD 8000 W Pictures

Manufacturer's code: 10062614
Solar inverter off-grid brand MSW It allows you to design your own power supply regardless of the power grid. Reliably and effectively converts a constant current from a photovoltaic installation to alternating current for all electrical devices 230 V In the apartment, workshop, office or holiday apartment. You can also store the generated energy in the battery and use it later. Performance up to 88% It allows full use of the photovoltaic system. Due to DC input voltage of 48 V and AC 230 V output voltage and 50/60 Hz, the device impresses with a rated power of 8,000 W. so it will allow you to power multiple electrical devices, from the refrigerator to drilling machine. MPPT function It fully uses the possibilities of a photovoltaic system and effectively process electricity. All values can be checked on a readable LCD display or through the application on your smartphone. The solar inverter is not only strong, but also safe thanks to the extensive safety functions against overcharging, excessive discharge, short circuit, overload and overheating. To use electricity later, use the inverter as a charger for eight different battery types (not included). A three-stage intelligent charging system will show the best properties at a maximum charging current of 90 A, which you set in the range of 0 - 100% depending on your needs. Additionally, it will prolong the battery life and will provide maximum energy production. If the photovoltaic installation generates more electricity during rush hour or its wear will increase, the solar inverter will support three times the rated power. In the case of generating or wearing a smaller amount, the energy saving mode will provide effective work with low losses.
Product features:

• - Zasilyzing your electrical devices at home, workshop or office using a solar inverter that has been converted permanent current from a photovoltaic installation on the alternating current 230 V,
• - Solar inverter with MPPT technology will gain maximum performance from each panel and improves the effectiveness of the photovoltaic system,
• - thanks to the intelligent, three-step loading management system, the solar inverter controls the charging process at a maximum charging current of 90 A,
• - solar saving mode to reduce the loss of energy generated, thanks to which it will be used maximum,
• - the inverter stands out with extensive functions protecting against reloading, excessive discharge, short circuit, overload and overheating,

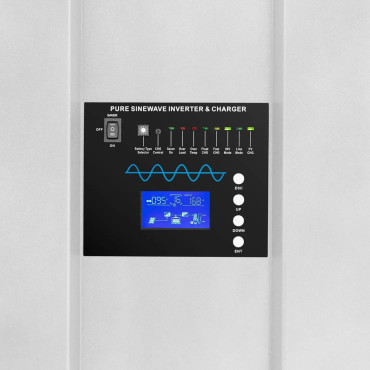

• - All values are checked on the LCD display on the 8 kW inverter.

Technical parameters:

• - catalog number - 10062614
• - article - New
• - Model - S-Power MPPT 8000
• - frequency [Hz] - 50/60
• - Material - Coated steel
• - Color - White
• - Display - LCD
• - Tension [V] - 230
• - power [W] - 8000
• - efficiency [%] - 88
• - Rated output current [A] - 60
• - Security - Before reloading, excessive discharge, short circuit, overload and overheating
• - voltage range [V] - 65 - 150
• - Maximum solar panel power [W] - 3400
• - Maximum charging current [A] - 90
• - Maximum tension of the open parent circuit of the solar panel [V] - 150
• - Dimensions (DXSXW) - 43 x 47 x 24 cm
• - weight - 55.1 kg
• - Dimensions of shipment (DXSXW) - 80 x 48 x 40 cm
• - shipping weight - 67.9 kg

Included:

• - Solar inverter
