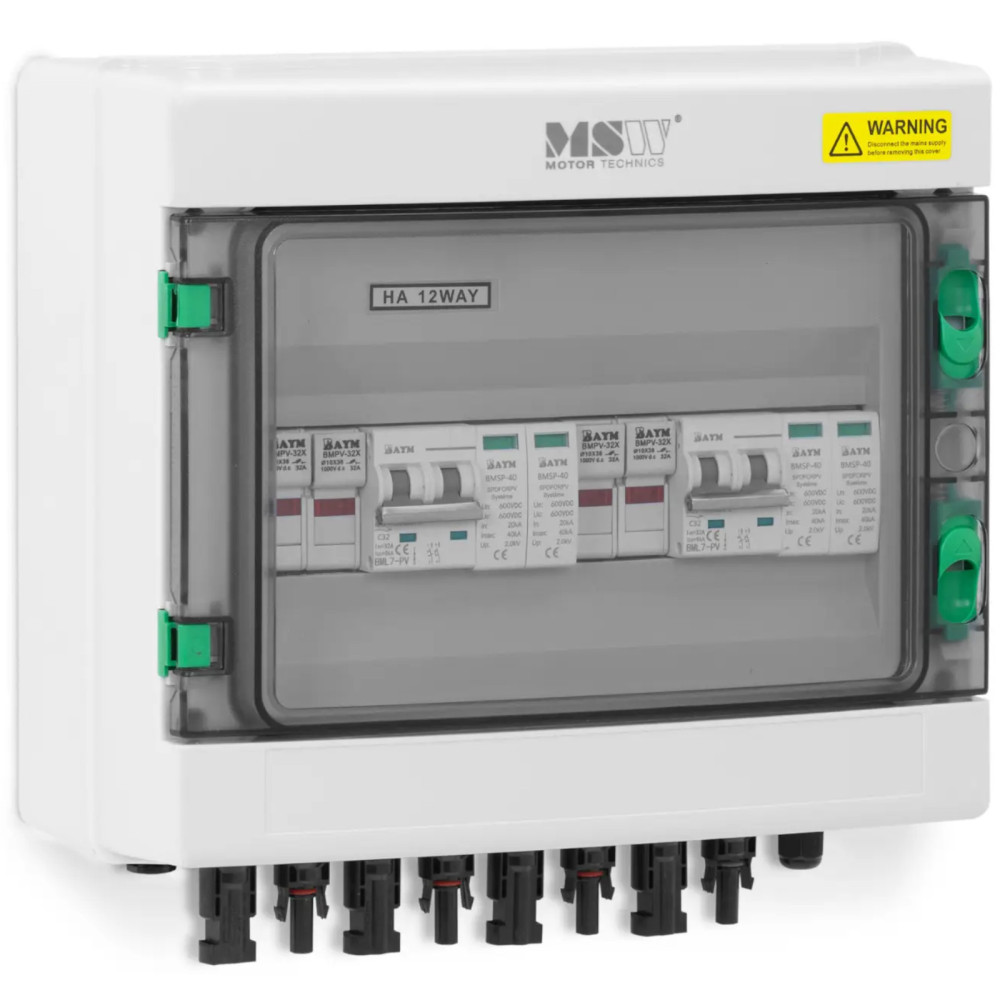

PV connection box for photovoltaics Type 2 2 inputs 2 outputs 1000V IP65

Manufacturer's code: 10062624
Connection box with surge protection for brand photovoltaic systems MSW Protects solar panels, inverters and electrical devices against high voltages, for example with direct or close lightning impact. At the same time, it is possible to optimize a photovoltaic system and ensure effective energy production. The PV connection box offers 2 separate entrances by which you can conveniently manage and secure 2 thongs. It is enough to connect it between the photovoltaic installation and the inverter. Simple wall assembly and transparent window facilitate regular checking and maintenance of PV electrical box. Inside ABS enclosures with an IP65 protection degree for connecting or disconnecting and protecting the photovoltaic system can be used:
- 4 fuses (DC / 1000 V / 15 - 32 A),
- 4 Automatic switches (DC / 600 V / 32 A),
- 4 Surge protection (DC / 1000 V / 40 KA).
Thanks to clamping and side cable connections quickly and easily and easily be launched for surge protection in the installation. All elements of the connection box with PV surge protection are made of high quality materials and correspond to the current provisions such as IEC / EN 60947-3. The fuses are in turn consistent with CE, CB and TÜV, and Surprising protection of type 2 from EN 50539-11. The connection box will allow you to increase the safety and overall performance of solar panels
Product features:

• - connection box with surge protection for photovoltaic systems (type 2) protects solar cells against lightning impacts or other high voltages,
• - fast assembly of PV connection boxes thanks to clamping connections and integrated cable channels,
• - thanks to 2 separate entries, you can use surge protection for 2 strings,
• - the PV connection box will ensure effective transfer of energy generated to the inverter or other devices,
• - For an uncomplicated installation and maintenance of the connection box to photovoltaic systems.

Technical parameters:

• - catalog number - 10062624
• - article - New
• - Model - MSW-WPD-PVDC600 2/2
• - Material - ABS, galvanized steel, PC, PA66
• - Color - White
• - IP protection degree - Ip65
• - humidity [%] - 99
• - Classification - DC-PV 1 / DC-PV2 (DC insulated disconnector)
• - Security - Resistance class IK 10
• - Rated entrance current [A] - 15 - 32
• - dimensions [mm] - Ø10 x 38 (DC fuse)
• - operating temperature range [deg C] - -20 - 60
• - power supply [V] - 1000 V
• - wall mounting - So
• - resistance to UV rays - So
• - Dimensions (DXSXW) - 30 x 29.5 x 14 cm
• - weight - 2.6 kg
• - Dimensions of shipment (DXSXW) - 32 x 31 x 18 cm

Included:

• - Connection box with surge protection for a photovoltaic system
