Shopping Care Trade Interface RS232 PLU 30 kg / 0.01 kg LED M Legalization

Manufacturer's code: 10200052

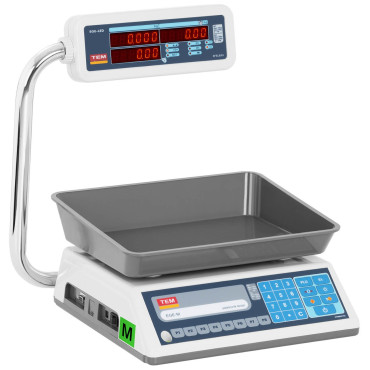

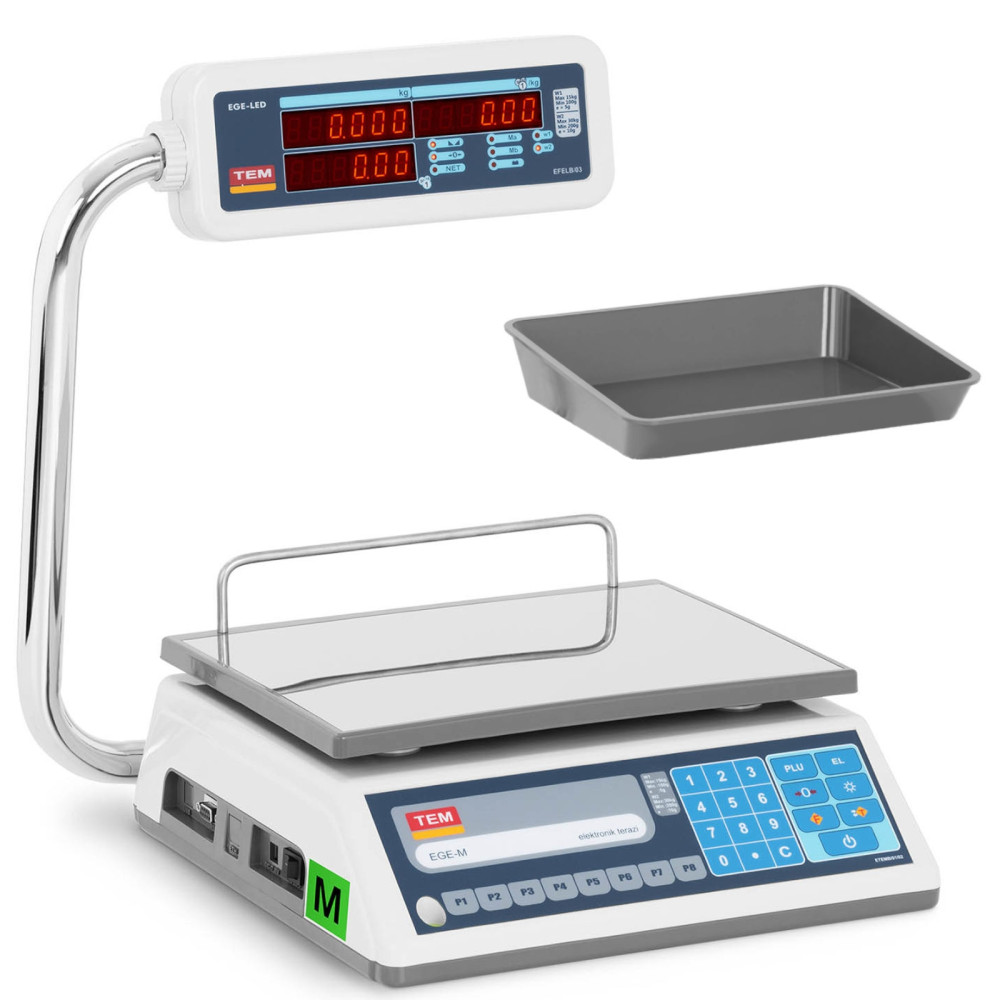

Shop brand TEM has legalization of and suitable Calibration certificate. Brand equipment TEM equipped with a tricolor Double-sided LED screenAdditional platforms (Deep and flat), a large capacity battery and Port RS232. Product sale improves the code memory PLU - 250 articles. Two weight ranges to choose from: W1 min. 0.1 kg, max. 15 kg, precision 0.005 kg W2 min. 0.2 kg, max. 30 kg, precision 0.01 kg. The RS232 port allows you to conveniently connect the weight to the cash register or computer using communication protocols Dialog 06, TEM, Tisa, Delta, ACLASS, NCI - To choose from the menu. An additional container with a maximum depth 57 mm. The set also includes a flat platform. Both elements were made plastic.
Product functions:

• - Saving,
• - Calculation of the price,
• - summing,
• - Drawing,
• - Reset.

Product features:

• - Approved by the "M # 8221 sign indicating the legalization of the weight,
• - Two weighing ranges (W1 Max. 15 kg, precision 0.005 kg W2 30 kg, precision 0.01 kg),
• - Double-sided screen Led,
• - Battery 6 V, 4.5 Ah toy 40 hours of work,
• - Port RS232 (cable included),
• - Communication protocols Dialog 06 / TEM / Tisa / Delta / NCI / ACLASS,
• - Factory calibrated.

Technical parameters:

• - Model - Tel030bc1-b1
• - catalog number - 10200052
• - article - New
• - Material - Plastic, stainless steel
• - power supply - 7.8 V, 1,2 A AC
• - voltage / frequency - 110-230 V / 50 Hz
• - battery - 6 V, 4.5 Ah
• - battery life - Up to 40 hours
• - platform dimensions - 32 x 26.3 cm
• - Max. Lifting - 30 kg
• - Min. Lifting - 100 g
• - graduation - 3000
• - Accuracy class - III
• - Weighing modes - W1, W2
• - Weighing range - W1: 0.1 kg - 15 kg | W2: 0.2 kg - 30 kg
• - Precision - W1: 0.005 kg W2: 0.01 kg
• - Weighing unit - kg
• - Replacement of the unit - Not
• - Saving - So
• - summation - So
• - Drawing - So
• - zeroing - So
• - Price calculation - So
• - Color - Blue / silver / White
• - Working temperature - From -10Deg C to ~ 40Deg C
• - storage temperature - From -10Deg C to ~ 40Deg C
• - Display - Led
• - Cyfruit height - 14 mm
• - number of articles in memory (PLU) - 250
• - external interface connector - Rs232
• - communication protocols - Dialog 06, TEM, Tisa, Delta, CAS(NCI) and ACLASS
• - Legalization - So
• - power cord length - 1.65 m
• - RS232 wire length - 1.75 m
• - User manual - So
• - Dimensions (DXSXW) - 37.7 x 32.5 x 39.4 cm
• - weight - 15.07 kg
• - Dimensions of shipment (DXSXW) - 40 x 51 x 31 cm
• - shipping weight - 15.57 kg

Included:

• - shop scale,
• - deep surface weighed,
• - RS232 wire,
• - AC power supply,
• - Operating instructions.
