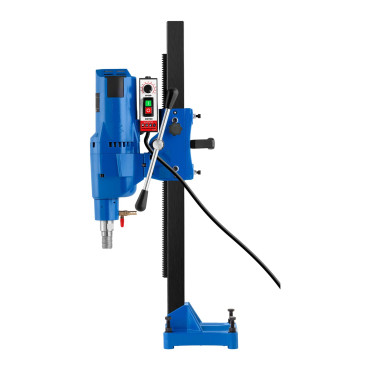

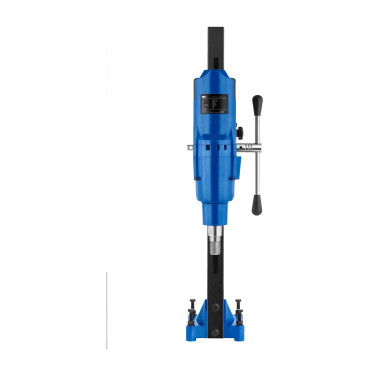

DRITNER Vertical drill for concrete 255 mm 3300W MSW-Ddm255

Manufacturer number: MSW 10060438
Professional drilling machine MSW-Ddm255 Thanks to its solid construction, it will work in hard materials such as brick, concrete or stone. Motor Power 3300 W It guarantees efficient operation and drilling speed up to 580 rpm. A convenient T-type handle allows for Regulation of boring depthand the guide provides smooth moving up and down in the range of 0 - 520 mm.

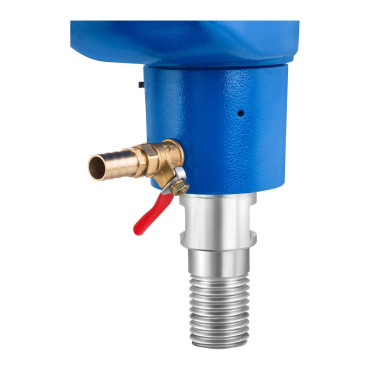

To increase work efficiency, drilling rigs are equipped with Special fitting and hosewhich can be connected to an external device responsible for wet work. This will enable the lifespan of lace and reduce the risk of damage to the material workpiece. Fix the diamond lace to the device With a diameter up to 255 mm.
Convenient handling of the device is due to m.in. A readable control panel. Placed on it Large buttons Responsible for starting and disabling the equipment and steless knob To determine the drilling speed. The special indicator indicates that the machine is ready for work.
Work safety for drilling rig provides PRCD module (Differential cutter) Preventing the machine in case of short-circuit. It also guarantees that the device will not start uncontrolled when it is connected to a power source.
Product features:

• - Reliability - a solid construction enables wet and dry work,
• - Multi-tasking - the possibility of drilling in various hard materials as brick, concrete, concrete reinforced or stone,
• - Versatility - compatibility with diamond drills up to 255 mm diameter,
• - Safety - Built-in PRCD module.

Technical parameters:

• - Model - MSW-Ddm255
• - catalog number - 10060438
• - housing material - Aluminum, steel, plastic
• - power - 3300 In
• - voltage / frequency - 230v / 50hz
• - acoustic pressure - 70 dB (A)
• - acoustic power - 85 dB (A)
• - Max. Drilling diameter - 255 mm
• - Diameter of the drill bit - 1 1/4 "
• - Diameter of the water hose connection - 1/2 "
• - Hose length for water - 3.1 m
• - max. Rotational speed (no load) - 580 rpm
• - Range of the guide - 0-520 mm
• - dry and wet drilling - So
• - PRCD module - So
• - length of the power cord - 3.2 m
• - Dimensions (DXSXW) - 20.5 x 30 x 101.5 cm
• - weight - 21.1 kg
• - Dimensions of shipment (DXSXW) - 93 x 36 x 23 cm
• - shipping weight - 23.8 kg

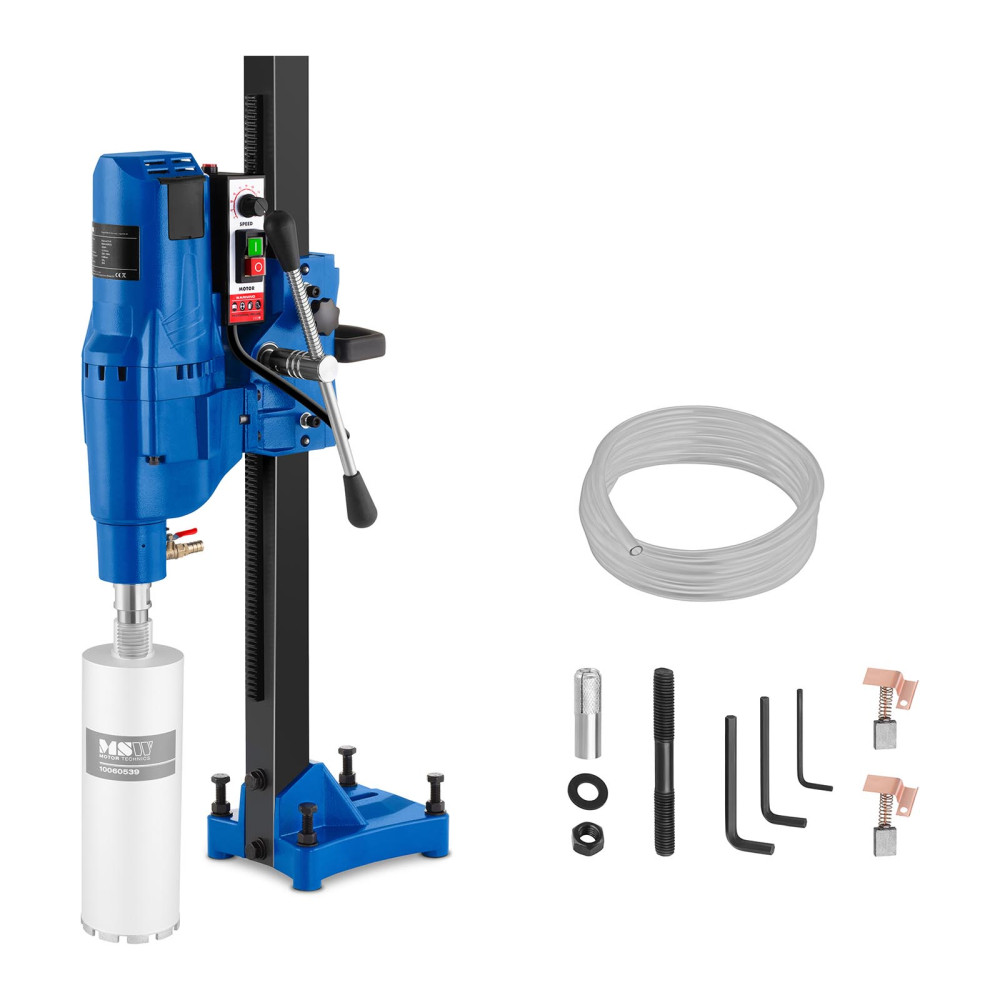

Included:

• - Concrete drilling machine

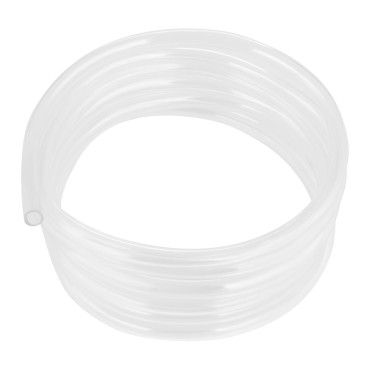

• - water hose 3.1 m
• - Rotated handle

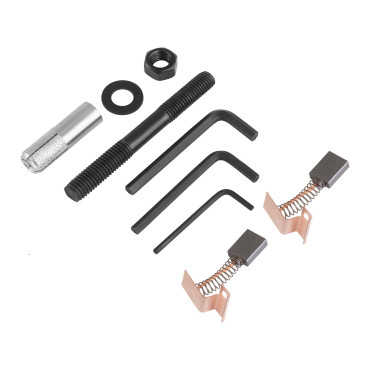

• - Allen keys - 3 pcs
• - Rear guide handle
• - anchor screw
• - Carbon brushes - 2 pcs

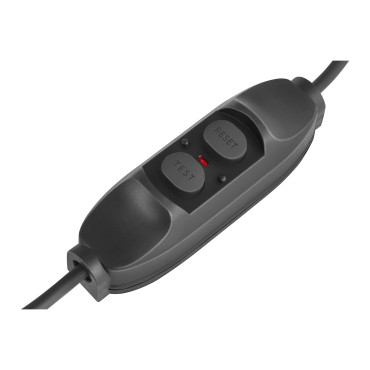

• - power cord 3.2 M with PRCD safety module
• - EN statement
