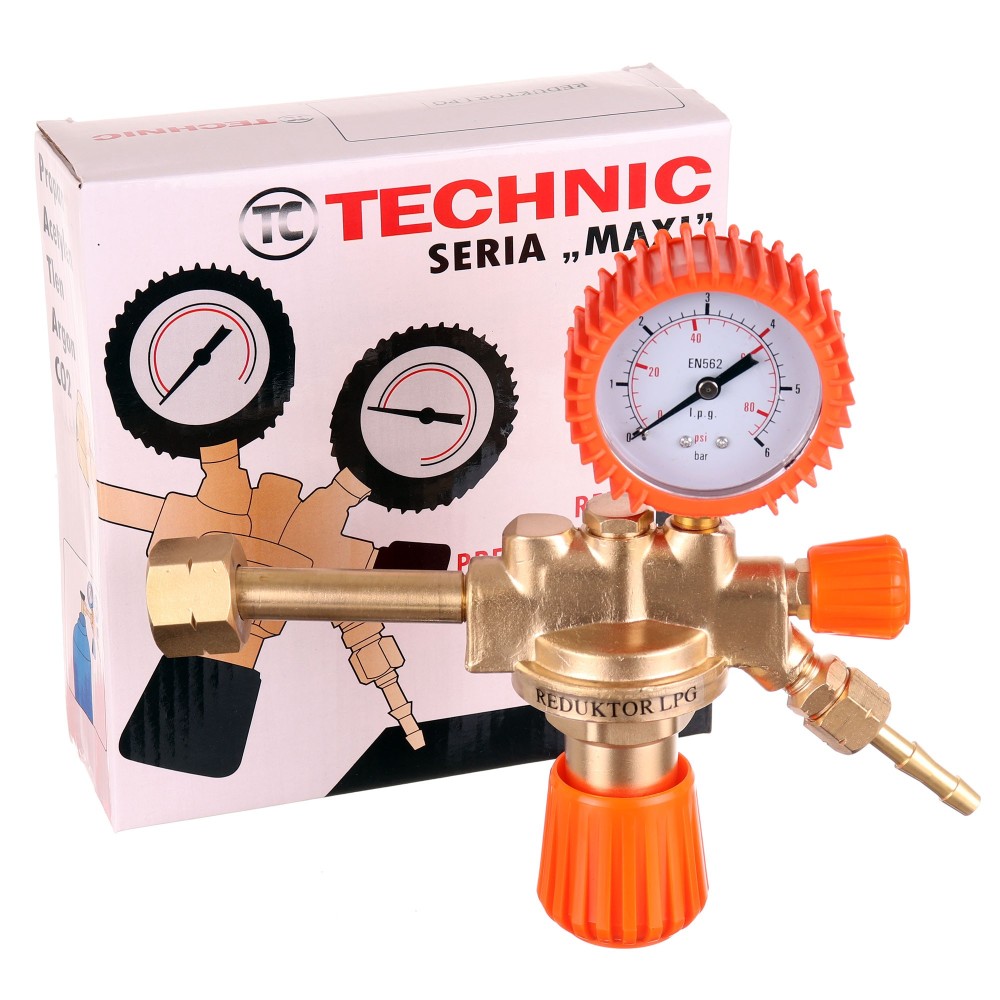

Propane-Butane LPG cylinder reducer Manometer. Valve for gas cylinder

Propane reducer with a manometer

Propane reducer 11kg bottle It has been equipped with two regulators. Lower knob we adjust the pressure on the output that is visible on the clock (gauge). We can a smaller knob Quickly spin the gas Without losing the previously determined pressure.

The reducer is used to lower the pressure of gases taken from the cylinder to the desired working pressure and provides automatic maintenance at a fixed level, regardless of changes in the inlet pressure.

Solid construction - A brass body, a readily unloaded pressure gauge in a rubber shield.The maximum outlet pressure of the reducer is marked on a red line manometer.

Technical data:

• Rated inlet pressure: 0-15 bar
• Capacity: 4m3 / hour
• Scope of outlet pressures: 0-4 bar
• Thread nuts on the outlet: 3/8 Left + 8mm connector
• Thread on the inlet: 21.8x1 / 14 LH
