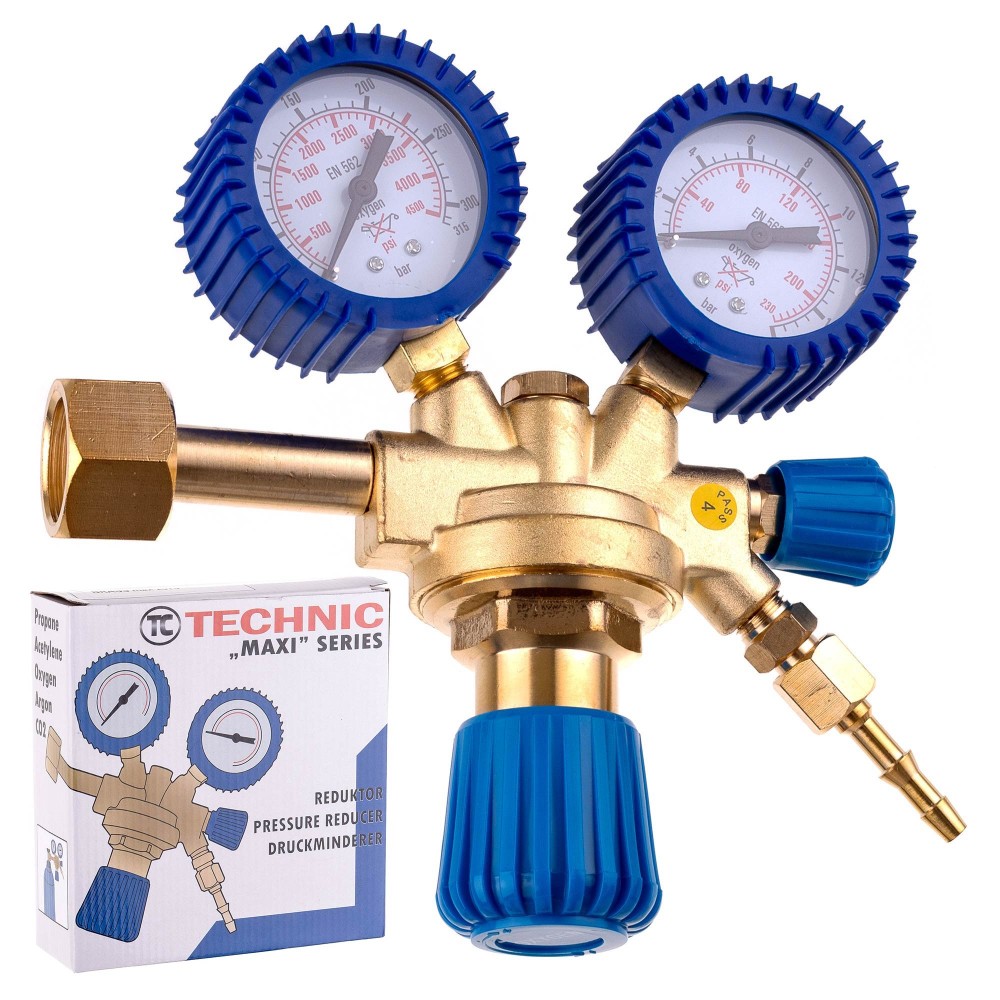

Gas reducer for oxygen oxygen with valve

Pressure reducer for oxygen cylinder

Reducer for oxygen. The cylinder reducer is designed for compressed gases from the cylinder. Reduces high pressure from the cylinder to the lower, needed on the output. The pressure regulation range is flowing from zero to 10 bar.

The container reducer is equipped with a standard oxygen cylinder connection, a high pressure gauge for controlling the contents of the cylinder, a low pressure gauge to control gas pressure on the output. Additional valve for closing the gas flow without the loss of a standard outlet pressure set with the lower, large knob.

Solid construction - A brass body, a readily unloaded pressure gauge in a rubber shield. The maximum outlet pressure of the reducer is marked on a red line manometer.

Equipped with safety valve.

Technical data:

• Rated inlet pressure: 0-200 bar
• Scope of outlet pressure: 0 - 10 bar
• Rated bandwidth: 30 m3 / h
• Thread on the inlet: Standard G 3/4
• Thread nuts on the outlet: G1 / 4 (standard)
• Outlet connection: 6.3mm (standard)
