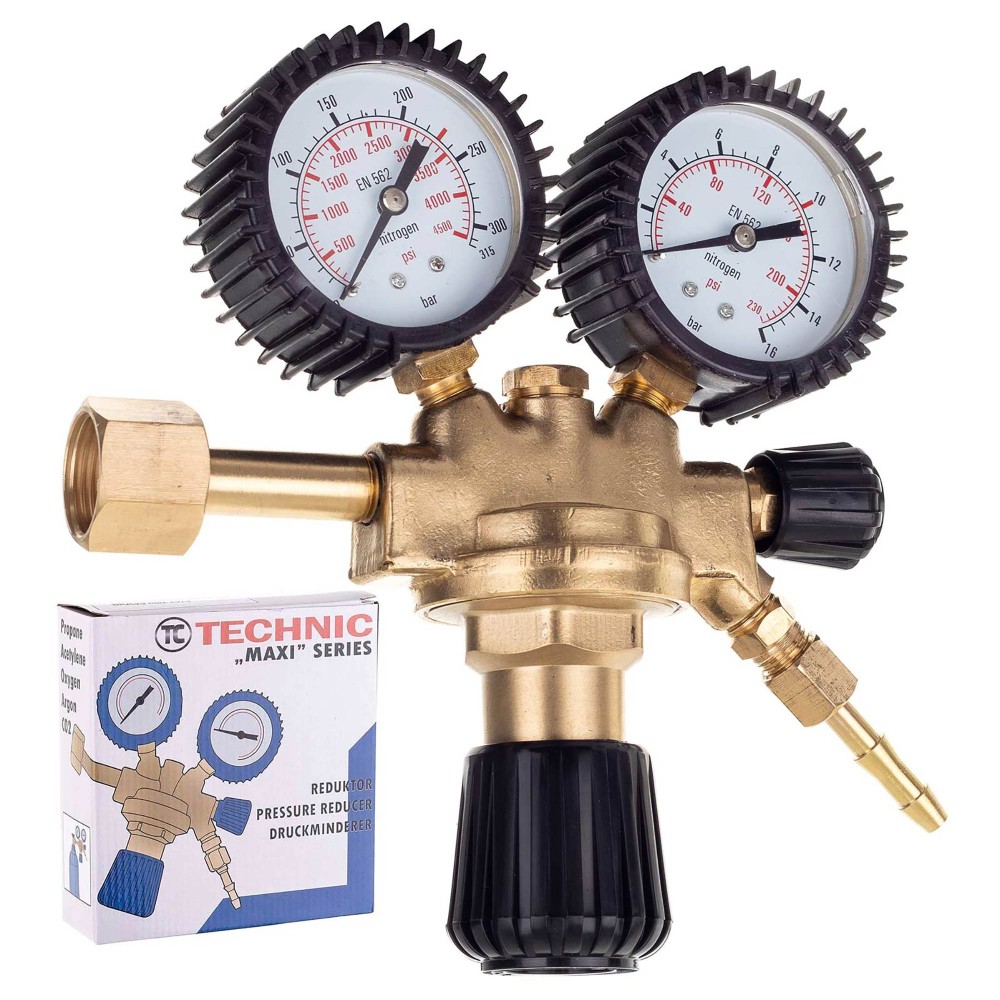

Nitrogen Nitrogen A nitrogen nitrogen 10 air conditioning bar 2 Manometers

Nitrogen reducer 30m3 / h

Reducer equipped with readable manometers, a large, massive design, a well-draining low temperature resulting from gas expansion.

A single-stage cylinder reducer is a redivity of a variable outlet flow adjustment.

The reducer allows to reduce gas pressure from the bottle to the required outlet pressure (working) and provides a constant gas flow value regardless of changes in the inlet pressure. The reducer is equipped with a safety valve, through which, with an increase in outlet pressure, an excess gas from the outlet pressure from the external pressure is allowed.

The use of: for installation and air conditioning attempts in vulcanization for filling tires

Technical data:

• Gas type: nitrogen
• Rated inlet pressure: 200 bar
• Range of outlet pressure: 0.5 - 10 bar
• Rated bandwidth: 30 m3 / h
• Thread on the inlet: W24,32x1 / 14
• Thread nuts on the outlet: G 1/4 '
• Outlet connection: 6.3
