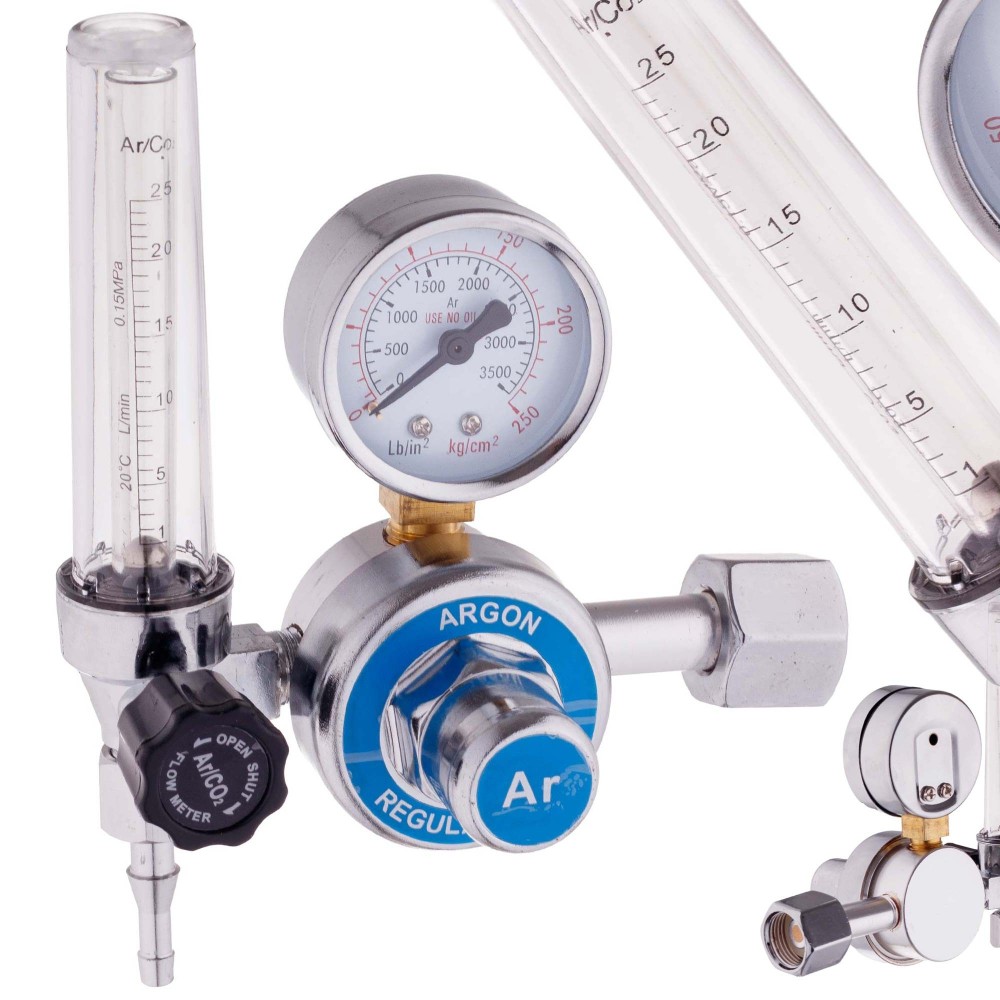

Gas reducer with single Argon / CO2 Rotameter MIG MAG TIG

Reducer with Rotameter for Gas Argon / CO2

Reducer with a rotameter measuring the amount of gas flowing over time. It is used in MIG, MAG, TIG welding and in aquaristics for dosing air.

• Smooth gas outflow adjustment regardless of pressure in the bottle
• Smooth CO2 adjustment, enables precise setting (Rotametr allows you to set the gas outflow very carefully even single bubbles)
• Precise needle valve
• Flow reading visible on Rotameter
• Pressure reading in the cylinder visible on the manometer
• A clear manometer shield
• Pressure pressure gauge in the cylinder up to 245 bar - scale on a manometer in LB / IN2 and kg / cm2 units. KG / CM2 is practically equal values with bars
• A very solid construction
• chrome surface

Technical data:

• Gas type - Carbon dioxide / argon
• Max Inlet Pressure Bar | KG / CM2 - 200 | 203
• MAX DEATURE BAR / MPA - 4 / 0,4
• Rated bandwidth - 25 l / min
• Sink to the gas hose - Standard connection to the hose from 6 to 8mm
• Thread cap for cylinder - W21.8 x 1/14 "
