Manufacturer's code:

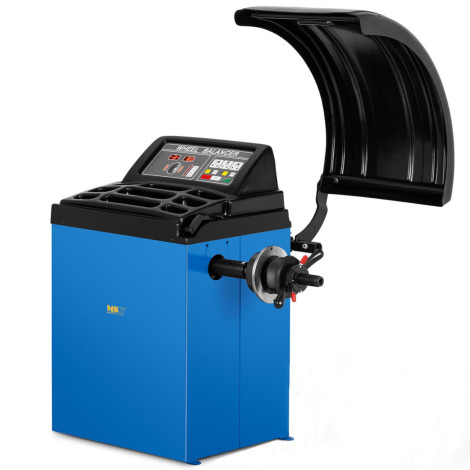

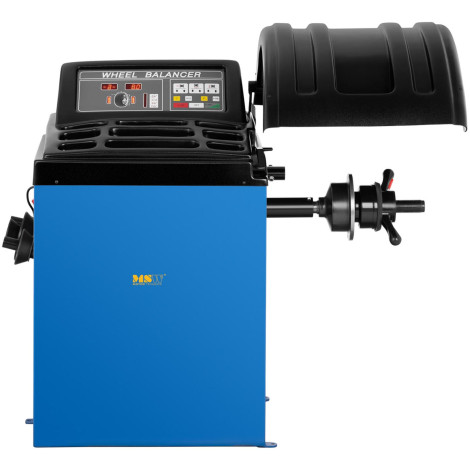

10060774Balance for German brand MSW This is a professional device for vulcanization plants, car services, vehicle service and workshops. Will work on wheels about weighing
65 kg (10-24 # 8221 diameter rims, 38-508 mm wide). The device provides fast and precise measurements. Allows you to handle passenger cars, delivery and motorcycles.
The engine disperses the wheel to
189 rpm. The result of the measurement is obtained over time

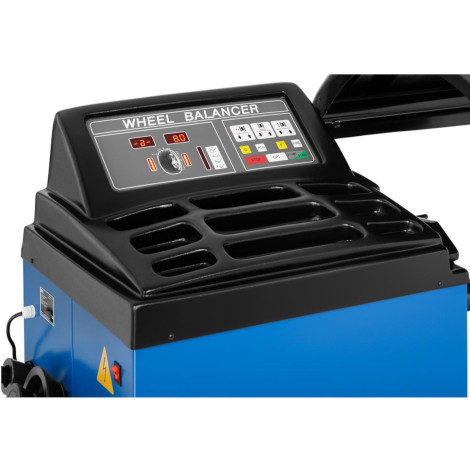

4-7 S. The LED display and the touch panel improve the operation of the device, and the results are saved in the device's memory. The balancer has numerous
Measurement functions, Normal program is used to balance steel and aluminum wheels, Static for motorcycle wheels. Alu1, Alu2 and Alu3 functions are adapted to different types of light rim, and the S mode allows for effective measurement in the case of unusually shaped rims. The balancing optimization function minimizes the number of weights necessary to place on the wheel. The device measures balancing with accuracy to
5 g. Function
automatic calibration Allows you to check and correct parameters. The set includes four centering cones for various types of wheels and accessories to improve work as well as a plastic cover protecting against splashes of sand or gravel.
Product features: - - Versatility - Measurement functions for all types of wheels, m.in. Normal, Static, Alu1, Alu2, etc.,
- - Easy service - LED display and touch panel,
- - Precision - automatic calibration,
- - Rim width 1.5-20 "(38-508 mm),
- - Hoop diameter 10-24 "(254-610 mm).
Technical parameters: - - Model - MSW-Wb-270
- - Tension [V] - 230
- - Power cord [m] - 1,82
- - acoustic power level [dB] - 60
- - Rated power [W] - 270
- - rotational speed [obr./min] - 200
- - Maximum wheel weight [kg] - 65
- - measurement time [s] - 4-7
- - wheel width range [mm] - 1.5-20 # 8217 # 8217 / 38-508
- - Wheel diameters range [mm] - 10-24 # 8217 # 8217 / 254-610
- - measurement tolerance - +/- 5
- - Diameter of the hole on the wheel [mm] - 36-125
- - powder coated - So
- - Dimensions (DXSXW) [cm] - 118 x 80 x 143
- - weight [kg] - 65.1
- - Dimensions of shipment (DXSXW) [cm] - 100 x 67 x 113.5
- - shipping weight [kg] - 89.85

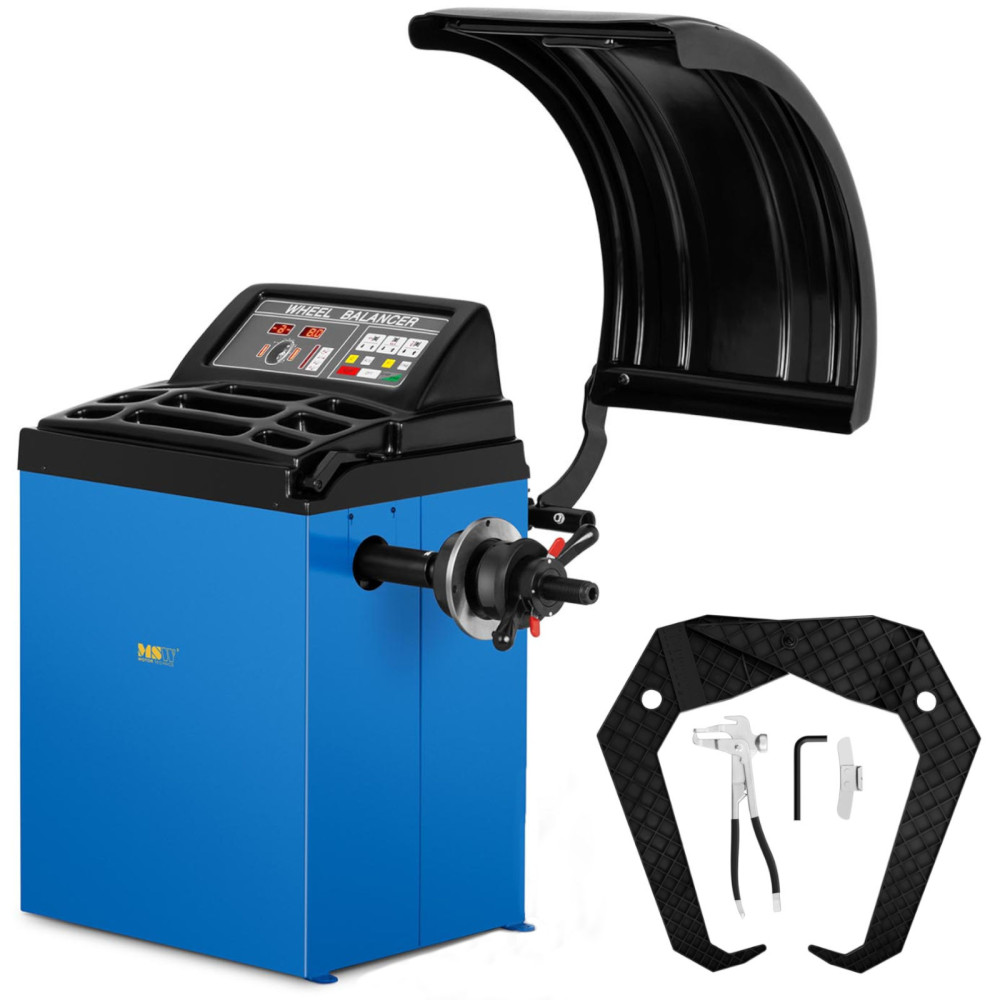

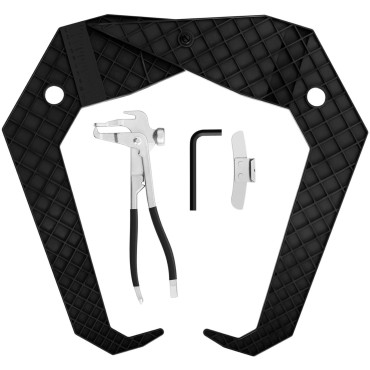

Included: - - Balance for wheels
- - centering cone - 4 items
- - Tool for measuring the rim width
- - Truck pliers
- - fastening nut
- - Hexagon key
- - Calibration weights
- - Security Cover
- - EN statement
