Manufacturer's code:

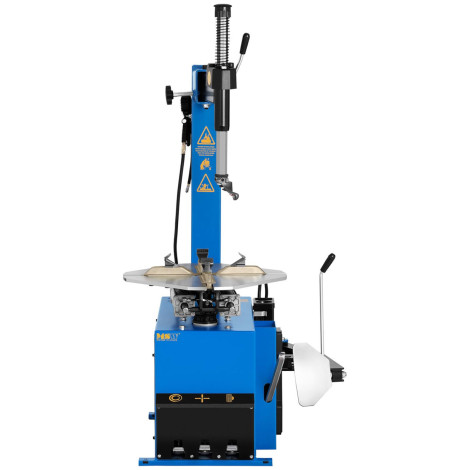

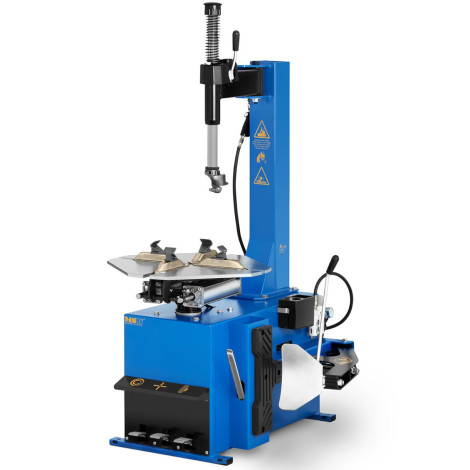

10060775Mounting for the German brand tire MSW Ideal for workshops or car service. It will facilitate removing and establishing truck, passenger cars and motorcycles.
The device allows you to exchange tires on the diameter rims
11- 22 ''. The assembly shop has

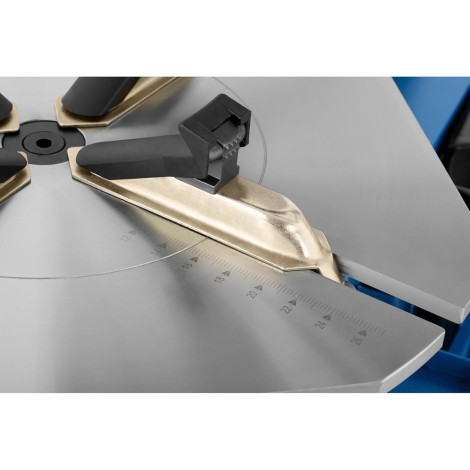

4-jaw self-centering system, which stabilizes the rim in the desired position. Tamper
2500 kg He breaks the tire from the rim. The shaping of the head and the overlays protect the rim from damage during disassembly. A pneumatic gun quickly pumps a circle.

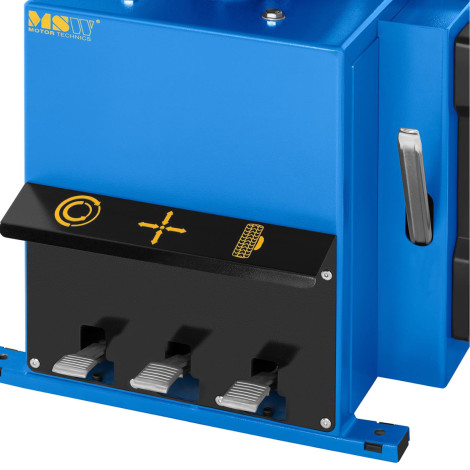

Service with pedals Leaves free hands. Working surface is
540 x 540 mm which allows for a comfortable work with size rims up to 22 inches. The ergonomic table rotates with force
1100 nm, improving the assembly and disassembly of the tire. The device has a rubber cover that protects the rim and machine against damage.
Product features: - - Versatility - efficient replacement of the tires of most passenger cars, delivery vans,
- - Comfort of use - free hands thanks to the use of pedals for handling,
- - The effectiveness of - applied solutions for difficult cases, e.g. pierced tires,

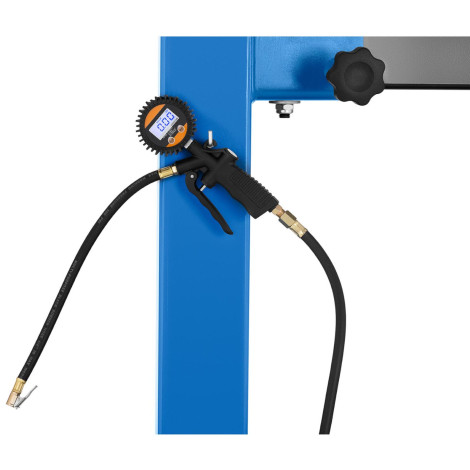

- - Completeness - the kit includes a gun with a wheel pumping pressure gauge,
- - Safety- Rubber shields of jaws prevent damage to both machines and rims.
Technical parameters: - - Model - MSW-Tc-750
- - catalog number - 10060775
- - article - New
- - Maximum tire diameter - 1000 mm
- - Maximum tire width - 310 mm
- - Working pressure - 6 - 8 bar
- - Input voltage - 230 V
- - power - 750 W
- - Sound intensity - 0 - 60 dB
- - Rims dimensions (internal blocking) - 11 - 18 # 8221
- - Rims dimensions (external blocking) - 13 - 22 # 8221
- - Assumption force - 2500 kg
- - length of the power cord - 1.8 m
- - torque of the table - 1100 nm
- - Maximum rotational speed of the table - 9 rpm
- - Protective class - And
- - the degree of protection of electrical components - Ip2x
- - User manual - So
- - Dimensions (DXSXW) - 95 x 105 x 183 cm
- - weight - 169 kg
- - Dimensions of shipment (DXSXW) - 97 x 76 x 88 cm
- - shipping weight - 189 kg
Included: - - tire assembly
- - plastic basket
- - Air hose
- - pneumatic pistol
- - Tire spoon
