Manufacturer's code:

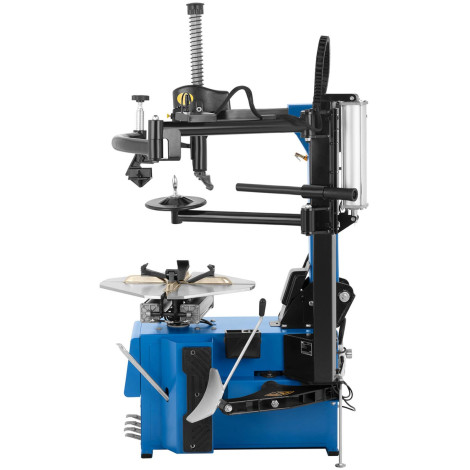

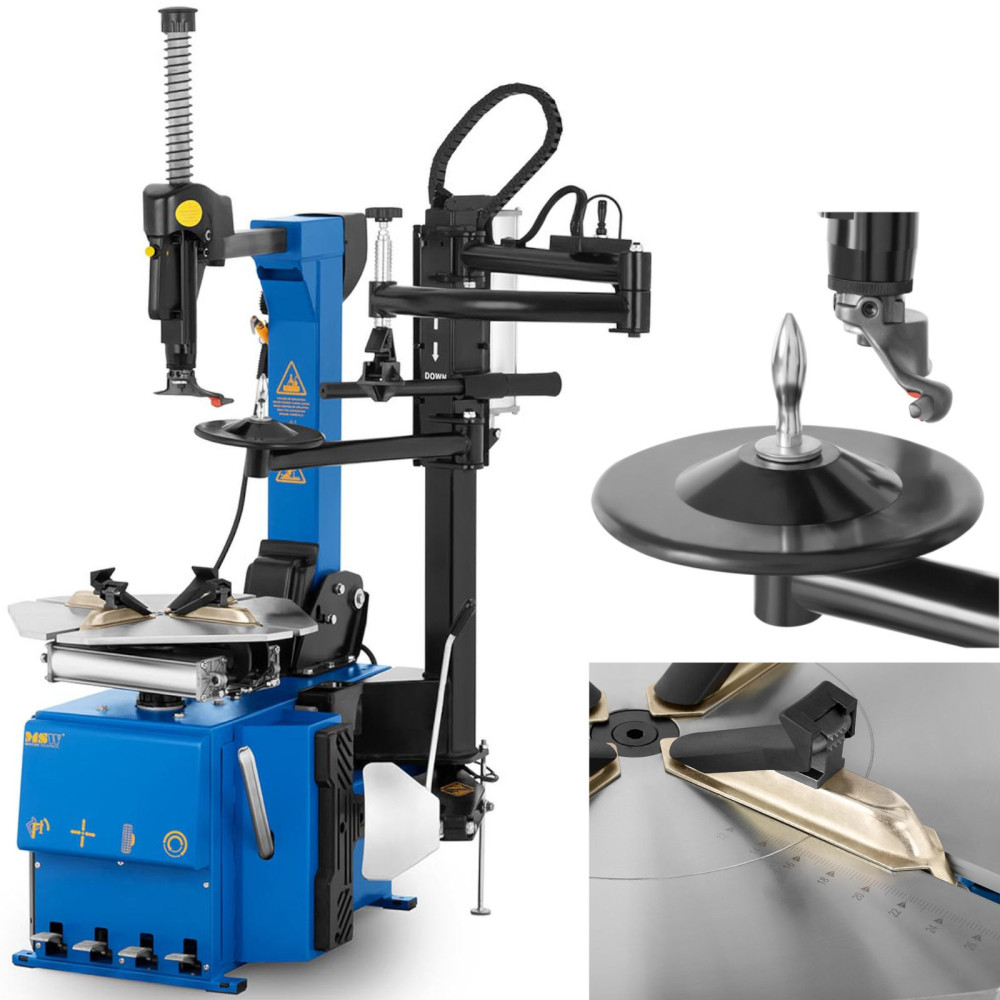

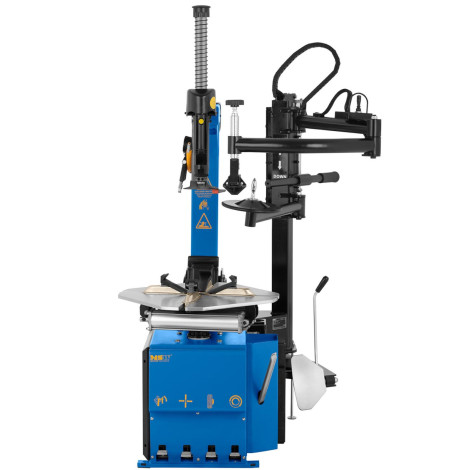

10060776Mounting for the German brand tire MSW Ideal for workshops or car service. It will facilitate removing and establishing truck, passenger cars and motorcycles.
The device allows you to exchange tires on the diameter rims
12- 24 ''. The assembly shop has

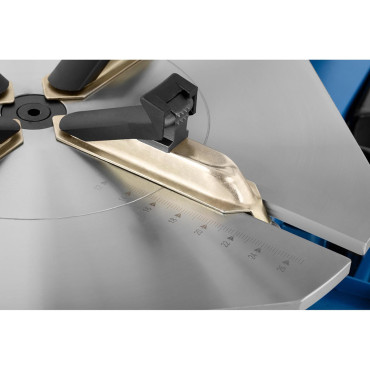

4-jaw self-centering system, which stabilizes the rim in the desired position. Tamper
2500 kg He breaks the tire from the rim. The shaping of the head and the overlays protect the rim from damage during disassembly. The device allows you to tilt the column forward or back to facilitate a picture of a pierced tire.
Service with pedals Leaves free hands. Working surface is
630 x 630 mm which allows for a comfortable work with size rims up to 24 inches. The ergonomic table rotates with force
1100 nm, improving the assembly and disassembly of the tire. The device has a rubber cover that protects the rim and machine against damage.
Product features: - - Versatility - replacement of the tires of most passenger cars, delivery vans,
- - Comfort of use - free hands thanks to the pedals,
- - The effectiveness of - applied solutions for difficult cases, e.g. pierced tires,
- - Completeness - The set includes m.in. pneumatic gun with wheel pumping pressure gauge and additional auxiliary arms,
- - Safety - Rubber shields prevent damage to both machines and rims.
Technical parameters: - - Model - MSW-Tc-1100ha
- - catalog number - 10060776
- - article - New
- - Maximum tire width - 310 mm
- - Working pressure - 8 - 10 bar
- - Input voltage - 230 V
- - power - 1100 W
- - Sound intensity - 60 dB
- - Rims dimensions (internal blocking) - 11 - 21 # 8221
- - Rims dimensions (external blocking) - 12 - 25 # 8221
- - Assumption force - 2500 kg
- - length of the power cord - 2 m
- - Optional double auxiliary arms - So
- - Tilting the column forward / backwards (for pierced tires) - So
- - User manual - So
- - torque of the table - 1100 nm
- - Maximum rotational speed of the table - 9 rpm
- - Protective class - And
- - the degree of protection of electrical components - Ip2x
- - User manual - So
- - Dimensions (DXSXW) - 150 x 204 x 188 cm
- - weight - 279 kg
- - Dimensions of shipment (DXSXW) - PAL1 110 x 88 x 96 cm / PAL2 130 x 93 x 38 cm
- - shipping weight - 320.5 kg
Included: - - tire assembly

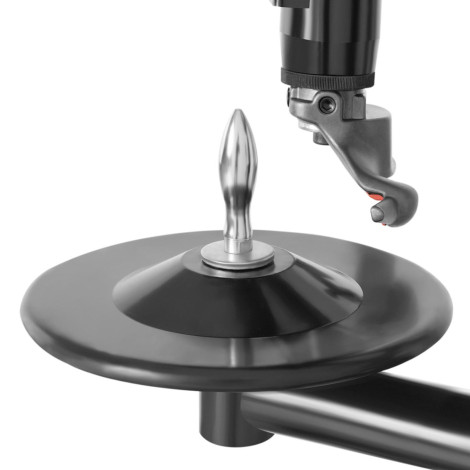

- - arm (1100 x 870 x 940 mm)
- - arm (1200 x 930 x 350 mm)
- - plastic basket
- - Air hose
- - Pneumatic pistol with a manometer

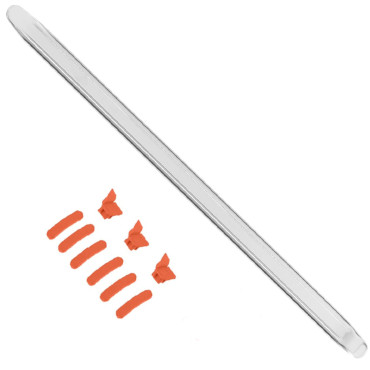

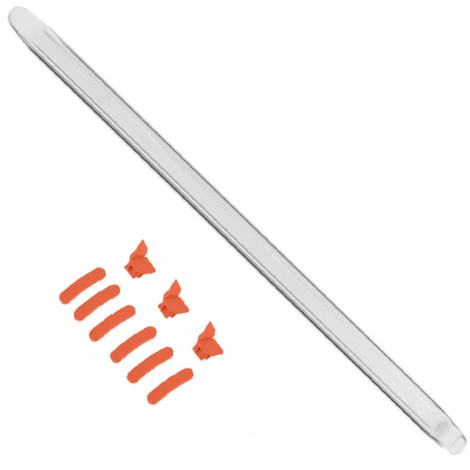

- - Tire spoon
- - Plastic aluminum rims pads - 1 set.
