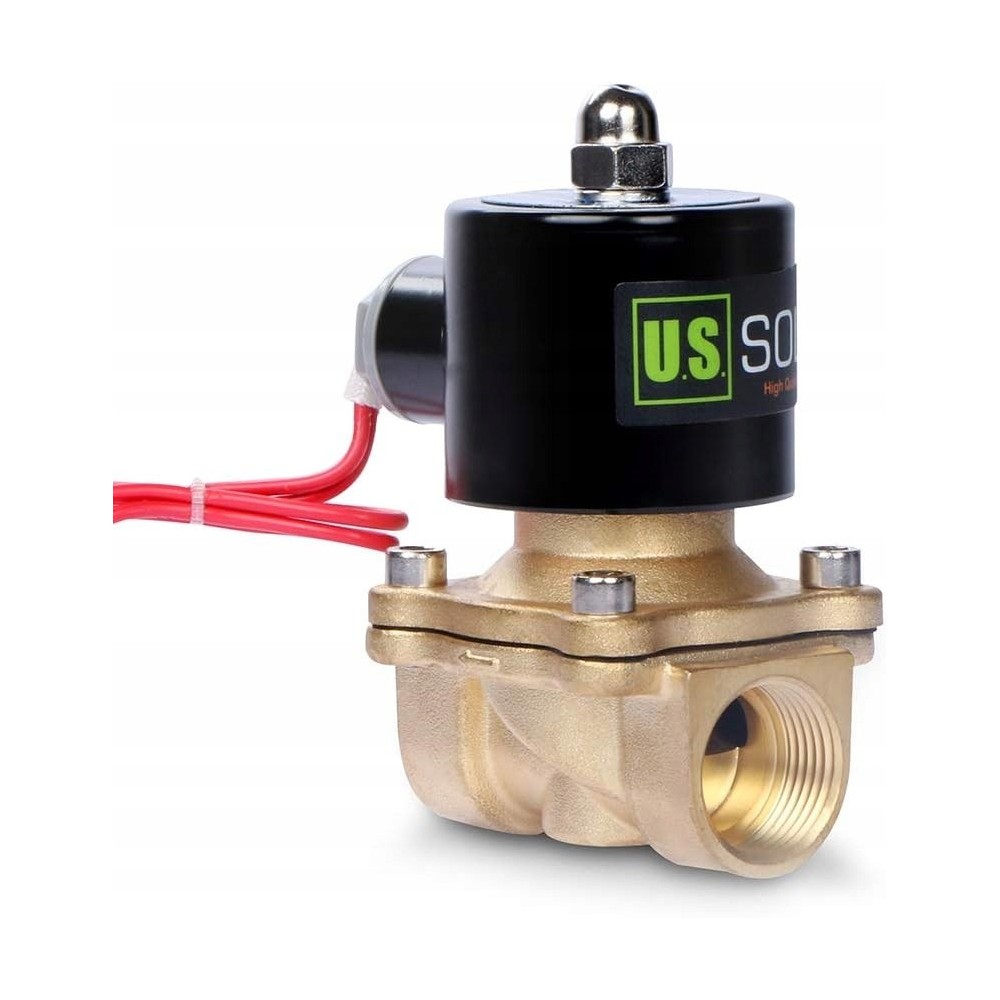

Electromagnetic valve U.S. Solid 3/4 "220V, Vitonium Gasket, Brass

Thread 3/4 "g, solid brass body, AC 230 V voltage

The electromagnetic valve directly moves the piston and closes the hole for liquid or gas flow. Please only close when energy is saved.

It can not be used in a strong acid, strong base, wastewater, industrial gases and other media containing many pollutants.

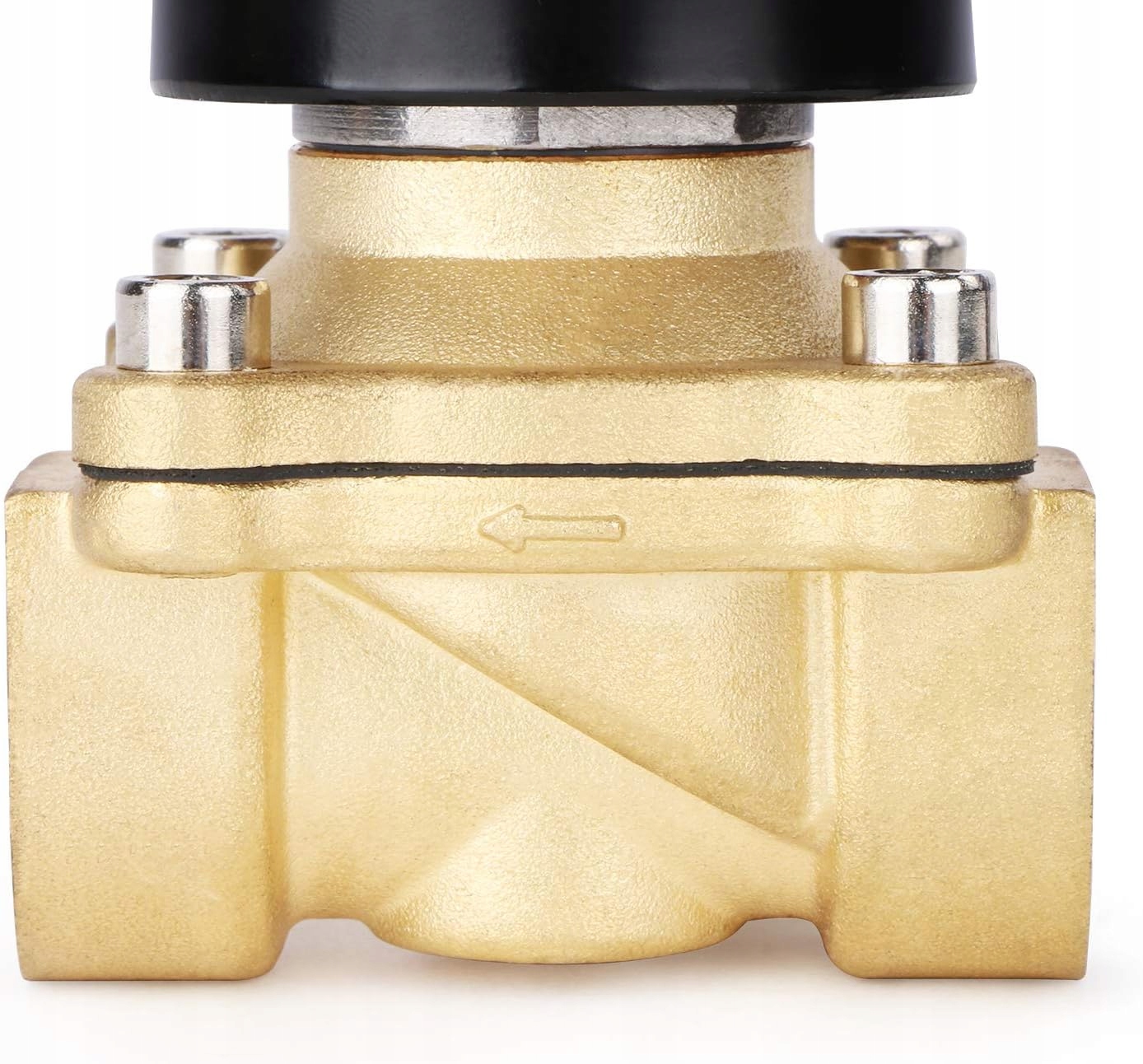

The arrow indicates the flow direction (horizontal assembly).

Vitonic gasket - Viton is a space of a cosmic era that is highly indifferent chemically. As such, it is commonly used with gasoline, photo-photographer and other organic solvents. Some companies sell solenoid valves with NBR gasket and advertise the use of gasoline. Do not use the NBR gasket for gasoline (corrosion of the gasket and can cause a serious gasoline leak and accident).

Specification

• Model: USS2-00089
• Corps material: brass
• Thread size: G 3/4 inch female, female
• 20 mm
• Type: Normally open "NO", direct electromagnetic valve
• Sealing material: Viton
• Rated voltage: 220 V AC, ± 10%
• Nominal power: 33 VA
• Electricity: 0.15 A
• Working pressure: 0 - 7 bar (0 - 101 psi) (for water, air, gas); 0-5 bars (0 - 72 psi) (for oil)
• Working temperature: -10 ° C to + 120 ° C
• Flow intensity: 7.6 gallon per minute (GPM) of water with a temperature of 15.6 ° C with a pressure drop of 1 psi (7.6 km).
• Quality assurance: CE certificate

Overheating warning

1. It is not intended for continuous operation (not 100% of the work cycle). Under normal operating conditions, the electromagnetic valve will be hot after switching on. The coil reaches a maximum temperature of about 80 ° C. Fully meets the national standard: JB / T7352-2010. In the case of continuous operation for more than 8 hours, the coil may burn.
