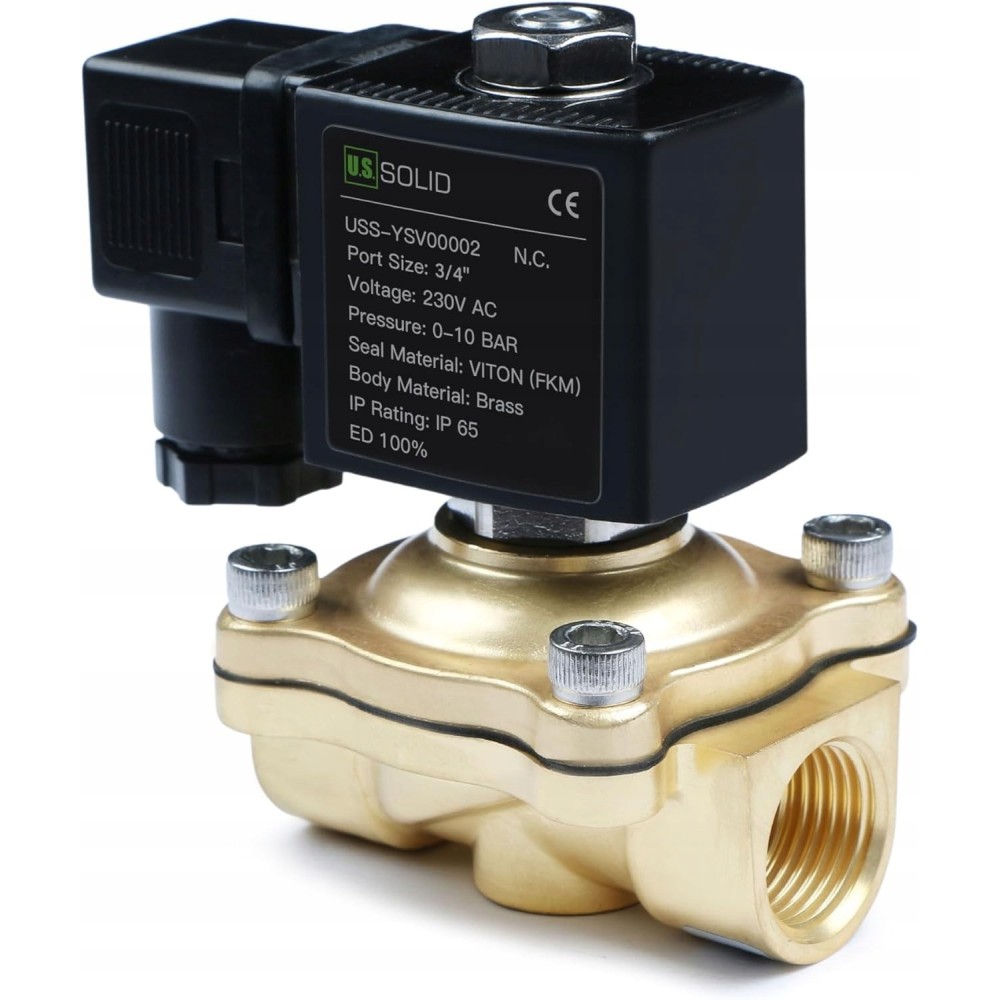

Electromagnetic valve U.S. Solid 1/2 "230 V, closed, NC 0-10 bar

IP65 protection degree

Magnetic valves have IP65 protection, i.e. they are protected against spraying water. However, in the case of a constant installation outside, the valves are recommended in the protective casing. They are not suitable for use under water.

Working pressure

All magnetic valves require a minimum pressure to start. These semi-directional valves require at least 0.1 bar. The maximum pressure is 10 bar.

Filter installation

To avoid problems with the valve, we recommend installing a filter when particles are in water. If the valve can not completely close or open, it is usually caused by pollutants inside the valve. In this case, open the valve and clean the internal parts.

Flow direction

Please note that an arrow indicating the direction of assembly or flow is on the bottom of the magnetic valve. The electromagnetic valve can only be mounted in the given flow direction. Installation in the opposite direction leads to the electromagnetic valve not working properly.

Connectors

Two types of connections are available for this valve:

• Type 1: Prepare cables with a minimum section of a cross-section of 0.75 mm2 and outer diameter of 7-9 mm. Connect cables with spindles using a side connector.
• Type 2: Remove the side plug and connect the pins directly to the terminal.

Keep in mind that the labels from the left and right side can be assigned to letters L (+) or N (-). The third spindle (in the middle of the upper or lower side) is connected to the ground / protective ground.

Work cycles

It is normal that the electromagnetic valves heat up after a longer period of use (up to about 80 ° C). Do not worry, our spool can withstand the maximum temperature of 180 ° C. This valve supports a continuous operation of 100%, but we do not recommend continuous continuous operation. It shortens the life of the valve and can burn the coil.

• Thread size: 1/2 "
• Corps material: brass
• Gasket: Viton
• Thread: thread G
• Operating mode: Normally closed N / C, semi-media
• Voltage: 220V AC ± 10%
• Electricity: 0.1 a
• Rated power: 22 VA
• Cross-section of the hole: 15 mm
• CV value: 4.5 CV
• Working pressure: 0-10 bar / 0-1 MPa (for air, water, oil)
• Working temperature: - 30 ° to 150 ° C (-22 ℉ to 302 ℉)
