TIG LIFT handle for welding MMA or MIG / MAG devices through a terribly target of the TIG Lift arc - plug 25

▶ ️ length 4m

▶ ️ Set of accessories in the set

• Equipped with valve placed on the handle for gas control.
• The handle has a rubber cover, protecting the wires before writing. Fixing to welding machines on Small plug (diameter 9 mm) On the other hand, the gas line has a completion of a quick connector type 21.

The set contains all the elements needed to start work,

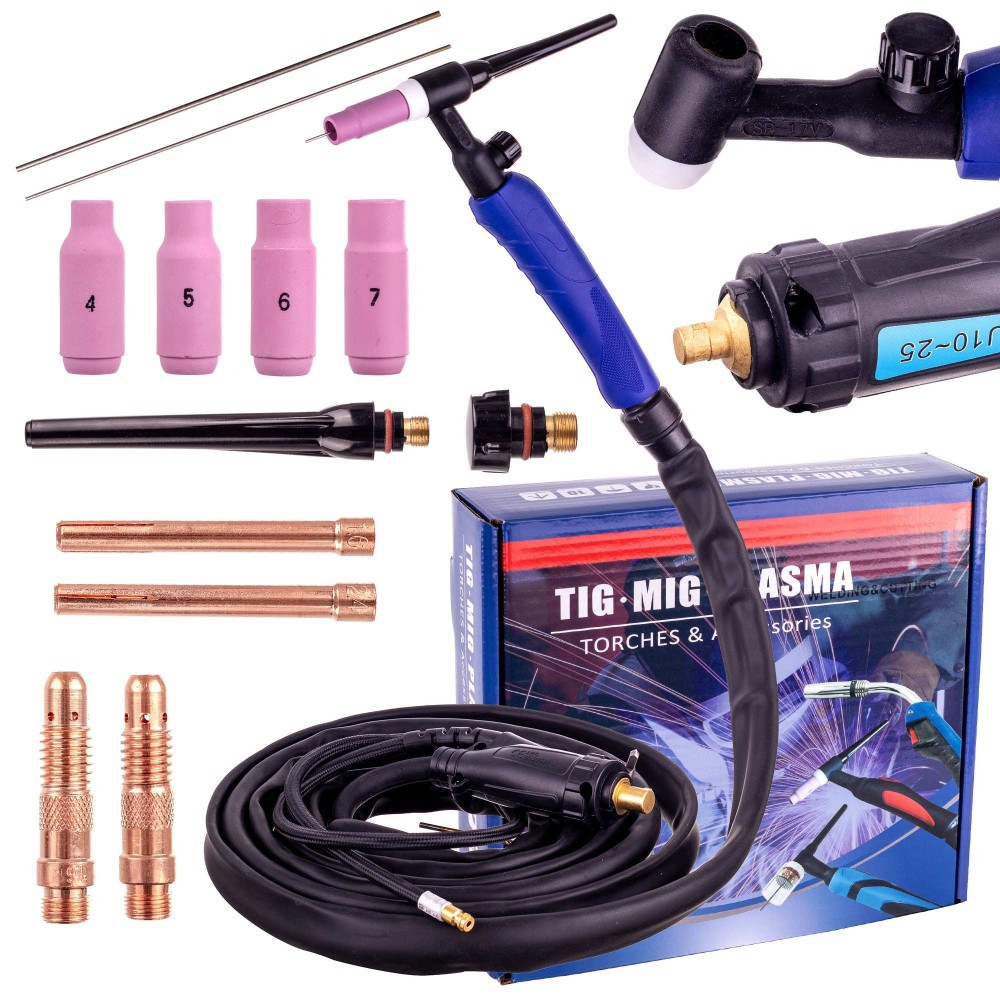

The kit includes:

• TIG SR-17V welding holder - length 4m
• 2x clamping sleeves
• 2x Wolfram Gold (1.6mm and 2.4mm) electrodes
• 2x Current Connector
• 1x short cork
• 1x long plug
• 4x ceramic gas nozzle (various sizes)

Connecting the TIG holder on MMA and MIG / MAG devices:

• Connect the TIG holder to the negative pole (-)
• We connect the mass cable plug to the positive pole (+)
• The gas hose must be connected directly to the reducer by using a quick coupler or a clamping band.
• The handle does not have a control plug

Technical data:

• Length: 4 m
• Completion of the gas hose: quick coupler type 21
• Current plug: Type 25 (diameter 9 mm)
• Current load / cycle: DC 140 A / 60%
• Diameter of used tungsten electrodes: 1.0 - 2.4 mm
• Weight with packaging: 1.8 kg
