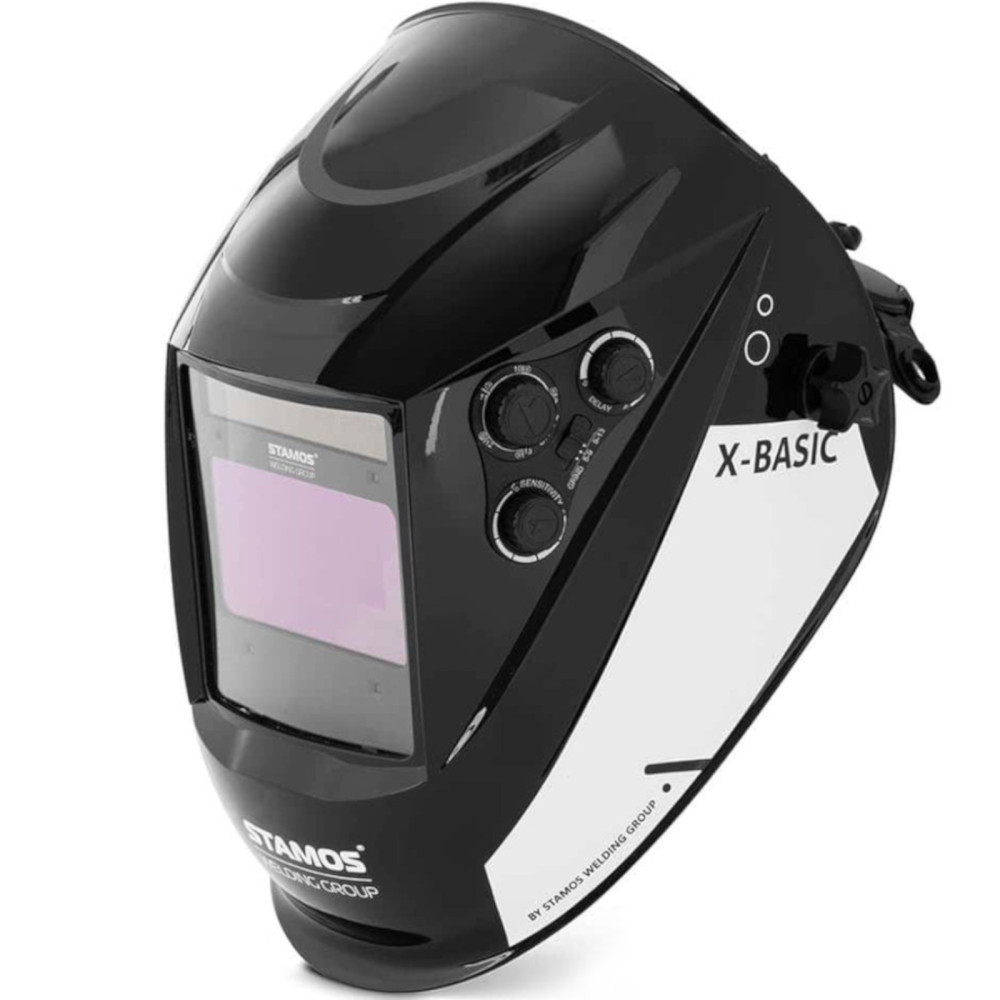

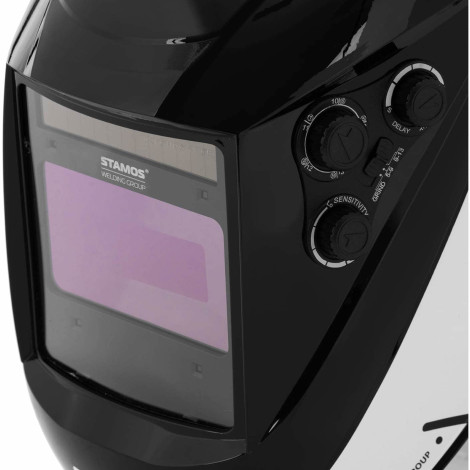

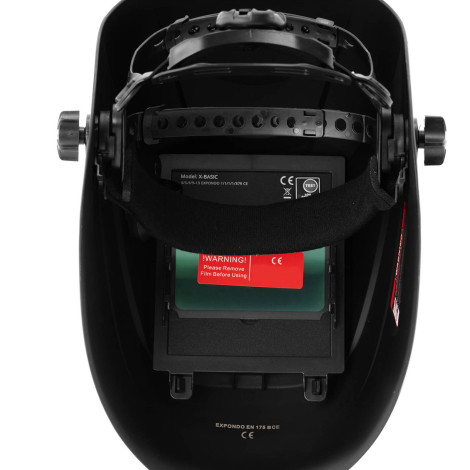

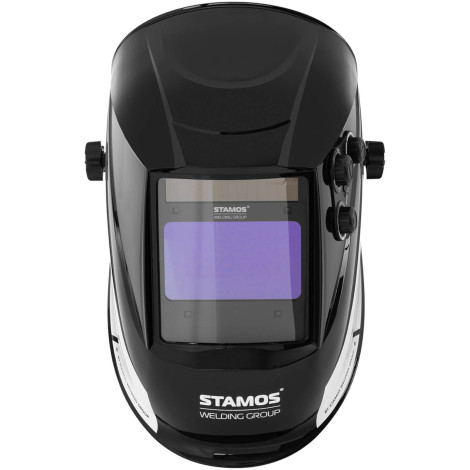

Automatic welding mask with the Grind function of a colored X-Basic field

Manufacturer's code: 10021438
Brand welding mask Stamos Germany Provides protection during welding electrodes and inert gas. Offering a full perspective in color. Automatic prompt has a regulated range of protection against light DIN 4 / 5-8 / 9-13. Self-test Allows you to adjust the shield for different needs. The field of view has dimensions 100 x 60 mm. Durable X-BASIC contribution It is powered by solar cells and contains a replaceable CR2450 battery with a lifespan of 5000 hours. Cooker was made from plasticIt is extremely light, weighs only 0.6 kg. The material mixture made of P66 and PC plastic is characterized by high resistance to abrasion and dimensional stability. Very short Reaction time 1/25000 S from bright to dark protects against the harmful rays of the arc. It does not burden over the eyes and does not require a long regulation period. It also provides protection against UV / IR radiation at all brightness levels to DIN 16. Function Grind Allows you to perform other metal works such as grinding, without removing the mask.
Product features:

• - to all popular welding methods,
• - light protection in accordance with DIN 4 / 5-8 / 9-13 and protection against UV radiation to DIN 16,
• - large colorful field of vision 100 x 60 mm,
• - 4 Sensors with a time of reaction 1/25000 S,
• - Adjustable delay 0.2-1.0 s.

Technical parameters:

• - catalog number - 10021438
• - article - New
• - Model - ×-basic
• - Display type - Color
• - power supply - Solar cells + batteries
• - Material - Pa
• - Color - Black
• - field of view [mm] - 100 x 60
• - Angle adjustment [deg ] - 120
• - Darkening control - Completely automatic
• - Switching buttons - Button
• - IR / UV protection - To DIN 16
• - brightness level - DIN 4 / DIN 5-9
• - storage temperature [deg C] - From -20 to 70
• - Size filter cassette [mm] - 133 x 114 x 10
• - switching time [s] - 1/25000
• - Delay of brightening [s] - 0,2-1,0
• - power details - Solar cell and removable lithium battery (1 x CR2450)
• - Darkness - DIN 4 / 5-8 / 9-13
• - Number of sensors - 4
• - homogeneity - 1
• - Optical class - 1
• - light permeability class depending on the viewing angle - 2
• - light scattering class - 1
• - Grinding mode - So
• - Dimensions (DXSXW) [cm] - 30 x 23 x 23
• - weight [kg] - 0,6
• - Dimensions of shipment (DXSXW) [cm] - 31 x 24 x 24
• - shipping weight [kg] - 1

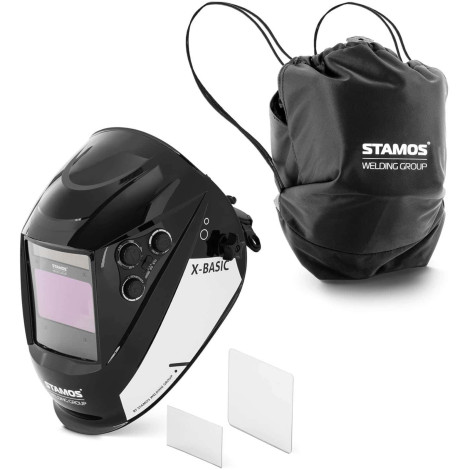

Included:

• - Welding Mask

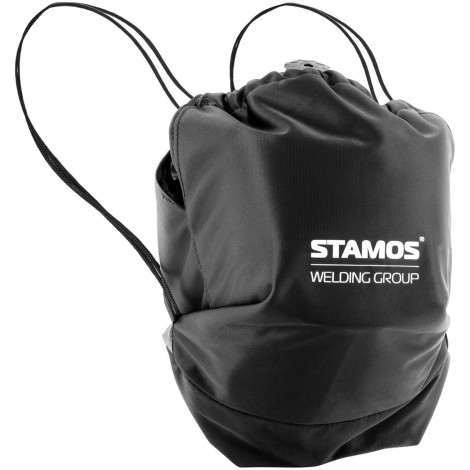

• - protective bag
• - protective lenses (inside and outside)
