Mask Automatic Welding Mask with GRIND Color Glass Y-100

Manufacturer's code: 10021441
Brand welding mask Stamos Germany Provides protection during welding electrodes and inert gas. Offering a full perspective in color. Automatic prompt has a regulated range of protection against light DIN 4 / 5-9 / 9-13. Self-test Allows you to adjust the shield for different needs. The field of view has dimensions 100 x 80 mm. Durable Color GLASS Y-100 cartridge It is powered by solar cells and contains a replaceable CR2450 battery with a lifespan of 5000 hours. Cooker was made from plasticIt is extremely light, weighs only 0.6 kg. The used material mixture made of polyamide 66 and PC is rigid, hard, abrasion resistant and high temperatures. Very short Reaction time 1/25000 S from bright to dark protects against the harmful rays of the arc. It does not charge over the eyes and does not require a long period of getting used to further welding. It also provides protection against UV / IR radiation at all brightness levels to DIN 16. Function Grind Allows you to perform other metal works such as grinding, without removing the mask.
Product features:

• - to all popular welding methods,
• - TECAMID 66 material mixture used is fireproof. abrasion resistant, little consuming and insensitive to thermal and chemical factors,
• - power supply with powerful solar cells and 3V battery,
• - large colored field of vision 100 x 80 mm,
• - 4 Sensors with reaction time 1/25000 s.

Technical parameters:

• - catalog number - 10021441
• - article - New
• - Model - Color Glass Y-100
• - Display type - Color
• - power supply - Solar cells + batteries
• - Material - Pa
• - Color - Black, blue, silver
• - field of view [mm] - 100 x 80
• - Angle adjustment [deg ] - 120
• - Darkening control - Button
• - Switching buttons - Fully automatic mask
• - IR / UV protection - To DIN 16
• - brightness level - DIN 5 - 9
• - storage temperature [deg C] - -90
• - Size filter cassette [mm] - 133 x 114 x 10
• - switching time [s] - 1/25000
• - Delay of brightening [s] - 0.14 - 0.85
• - power details - Solar cell and replaceable lithium battery (1 × CR2450)
• - Darkness - DIN 4/5 - 9/9 - 13
• - Number of sensors - 4
• - homogeneity - 1
• - Optical class - 1
• - light permeability class depending on the viewing angle - 2
• - Grinding mode - So
• - battery power - So
• - Dimensions (DXSXW) [cm] - 30 x 22 x 22
• - weight [kg] - 0,6
• - Dimensions of shipment (DXSXW) [cm] - 31 x 23.5 x 23.5
• - shipping weight [kg] - 1,1

Included:

• - Welding Mask

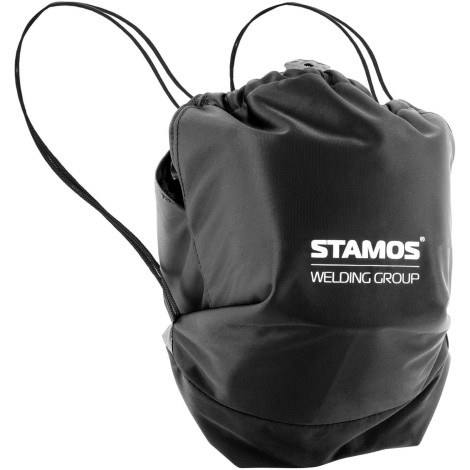

• - protective bag
• - protective lenses (inside and outside)
