Mask Automatic Welding Mask With Colorful Glass X-100 Color

Manufacturer's code: 10021440
Brand welding mask Stamos Germany It will work with all welding methods. It offers a regulated range of protection against light DIN 4/5 - 9/9 - 13. By self-test You can optimally adjust the protection against light to your needs. The field of view is 100 x 97 mm. The cartridge is powered by solar cells and contains a removable battery CR2450 with a lifespan of 5000 hours. Vase mask only 0.8 kg. The TECAMID 66 material mixed mixture, made of 66 and PC polyamide, is characterized by good stiffness, hardness, high abrasion resistance and thermal dimensional stability. The reaction time is 1/25000 With light to darkness, provides protection against harmful arc radiation. This does not cause excessive eye fatigue and does not require a long period to get used to further welding. The member provides protection against UV / IR radiation at all brightness levels until DIN 16. Thanks to the excellent values of the optical class, dispersion of light, homogeneity and dependence on the viewing angle, it is suitable for professional use. If you want to perform other metal works such as grinding without removing the prompt. Use the function Grind.
Product features:

• - the TECAMID 66 material mixture used is fireproof, dimensionally stable, abrasion resistant, low-consuming and insensitive to thermal and chemical factors.
• - a mask powered by powerful solar cells and has a 3 V battery as a maintenance,
• - large colored field of vision 100 x 97 mm,
• - 4 sensors with an impressive reaction time 1 / 25000s,
• - For all popular welding methods.

Technical parameters:

• - catalog number - 10021440
• - article - New
• - Model - Color Glass X-100
• - Angle adjustment [deg ] - 120
• - Material - Pa66 / tecamid66
• - Area of brightness mode - DIN 5-9
• - delay [s] - 0,1-0,78
• - light permeability class depending on the viewing angle - 1
• - power details - Solar cell and removable lithium battery (1 x CR2450)
• - Number of sensors - 4
• - homogeneity - 1
• - Grinding mode - So
• - field of view [mm] - 100 x 97
• - size of the filter cartridge [mm] - 133 x 114 x 10

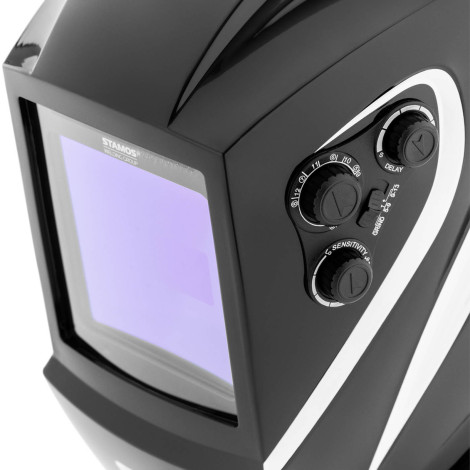

• - Darkening control - Button
• - Protection against light - DIN 4/5 - 9/9 - 13
• - Switch - Completely automatic
• - light scattering class - 1
• - power supply - Solar cells + batteries
• - Optical class - 1
• - storage temperature [deg C] - -20 - +70
• - Display type - Color
• - switching time [s] - 1/25000
• - UV / IR radiation protection - Always for DIN 16
• - Dimensions (DXSXW) - 20 x 30 x 34 cm
• - weight - 0.8 kg
• - Dimensions of shipment (DXSXW) - 24 x 24 x 31 cm
• - shipping weight - 1.12 kg

Included:

• - Welding Mask

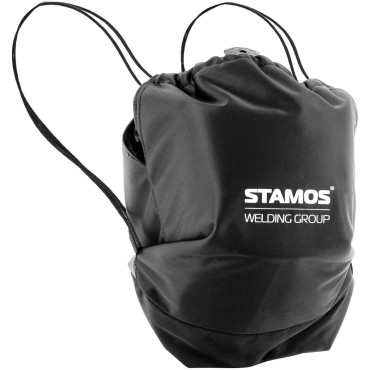

• - protective bag
• - a set of protective lenses (internal and external)
