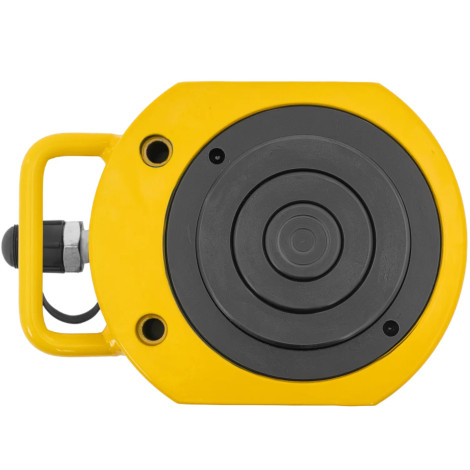

Double-sided hydraulic cylinder Actuator 78 mm 100 t

Manufacturer's code: 10062824

Exceptionally flat hydraulic hydraulic actuator MSW The height of only 90 mm and piston stroke 78 mm is an ideal solution for working under limited conditions. The hydraulic cylinder offers an impressive load capacity: the smallest piston with a diameter of 38 mm will force 5 t, mid-69 mm. A lifting capacity of 30 t, while the largest with a total diameter of 105 mm will be a load of up to 100 tons. The hydraulic hydraulic actuator will precisely raise and withdraw the piston with a working pressure of up to 700 bar, which makes it extremely versatile. It will work in construction, industry or other demanding tasks. 3/8 '' (NPT) connector for a quick and secure connection will allow various hydraulic equipment. This will limit this downtime and simplify integration with existing hydraulic systems. The high-quality steel pump has a protective plastic coating. It corresponds to excellent resistance to wear and corrosion even in demanding conditions. The hydraulic actuator is also equipped with six seals that provide additional safety and durability - ideal for intensive high pressure uses.

Product features:

• - an extremely flat hydraulic actuator with a height of only 90 mm and a 78 mm stroke are ideal for operation in tight places,
• - hydraulic cylinder 5 t capacity on a piston with a diameter of 38 mm, 30 t on a piston 69 mm and 100 t on a piston 105 mm,
• - two-sided hydraulic actuator to 700 bar with lifting and reversing function to many tasks,
• - hydraulic piston has a corrosion-resistant surface that protects against environmental influences and extends life,
• - Fast and secure assembly of the hydraulic lifting actuator thanks to 3/8 "(NPT) threaded connector.

Technical parameters:

• - catalog number - 10062824
• - article - New
• - Model - MSW-Hjs-ms100
• - Material - Alloy steel, powder coated steel
• - Color - Yellow
• - load - 5 t (38 mm) / 30 t (69 mm) / 100 t (105 mm)
• - jump height [mm] - 25 + 33 + 20
• - head diameter [mm] - 38/69 / 105 mm
• - connector type - 3/8 '' NPT
• - Working surface [cm] - 56,7
• - oil tank capacity - 225 ml
• - stroke - 78 mm
• - Maximum working pressure - 700 bar
• - Cylinder height - 90 mm
• - Dimensions (DXSXW) - 23 x 16 x 9 cm
• - weight - 16.9 kg
• - Dimensions of shipment (DXSXW) - 28 x 20 x 12 cm
• - shipping weight - 18 kg

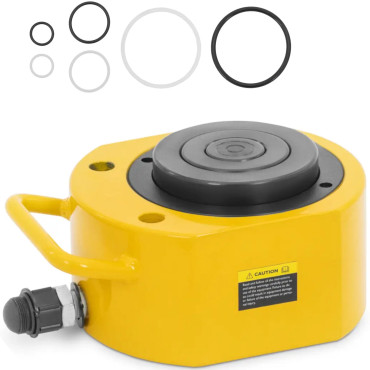

Included:

• - hydraulic actuator

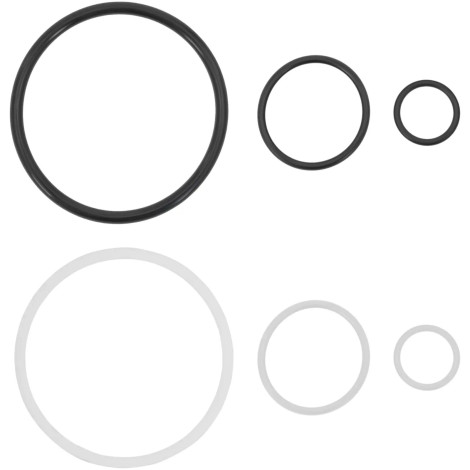

• - 6 gaskets
