Hydraulic pump for 400 bar actuator lifts up to 100 t

€120.84
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062819

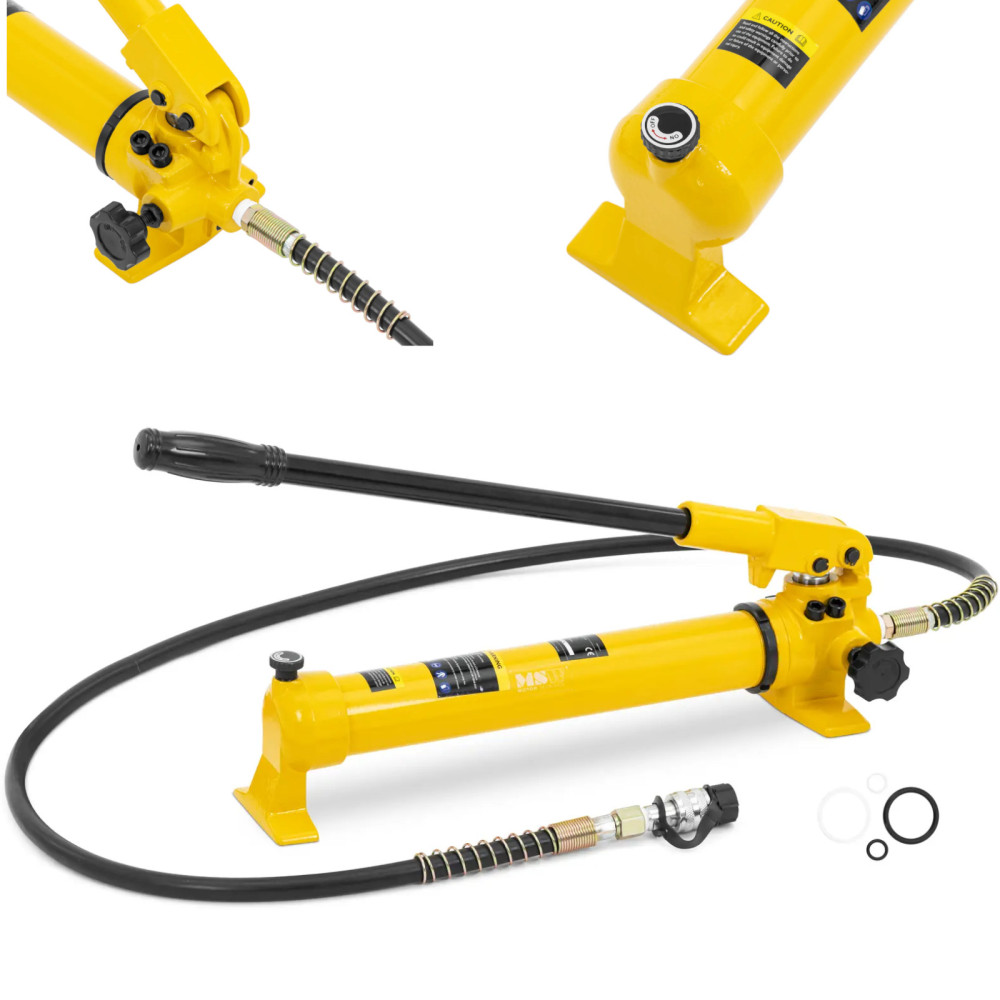

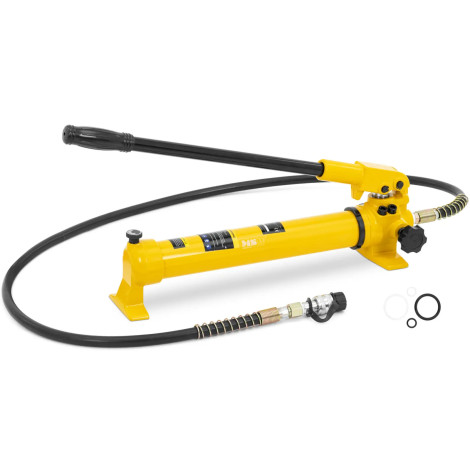

Hydraulic MANUAL MANAGE PUMP MSW It will reliably supply hydraulic lifts and other devices for lifting heavy construction machines or steel beams or to drive on the ground. The model produces a pressure up to 700 bar and therefore suitable for many applications in industry and construction. Manual hydraulic pump is initially operated at low pressure, and at high loads automatically switches to high pressure. This will provide greater efficiency and reduce the effort needed at high loads. Using a hand pump, you can handle hydraulic cylinders, which will certainly work in places without access to electric power. The oil topping hole will make the device maintenance easy and reduce downtime during operation. A solid steel design is stable, extremely durable and has a corrosion resistant coating. This increases the durability and life of the pump in the workshop. If necessary, you can connect a pressure gauge to check the pressure level and avoid the excess that could damage the tool. The hydraulic pump will delight with a compact and portable construction. Thanks to a small size, it is easily transported and set in the desired position.

Product features:
  • - thanks to high output pressure up to 700 bar, the manual hydraulic pump can be used for demanding tasks,

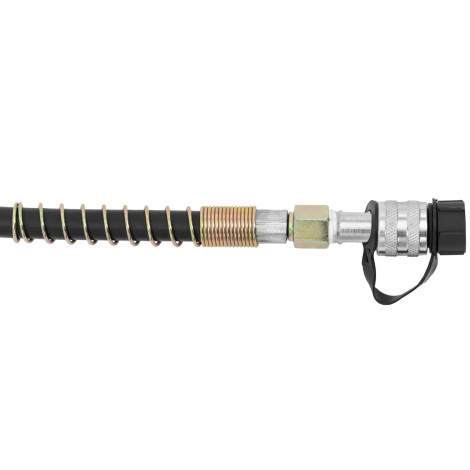

  • - 1.8 m hose will allow flexible work in the workshop, even in hard-to-reach places,
  • - the pump has an overload protection with an internal valve, so you can use it without risk,
  • - a handy design and a small weight will facilitate the transport of pumps and maneuvering it in various places,
  • - Manual hydraulic pump will automatically switch between low and high pressure depending on the load to increase productivity or facilitate the operation.

Technical parameters:
  • - catalog number - 10062819
  • - article - New
  • - Model - MSW-Hpm-03
  • - Material - Alloy steel, cast steel
  • - Color - Black
  • - connector type - 3/8 quick connector with dust cover
  • - efficiency - 100 t
  • - oil tank capacity - 900 ml
  • - maximum pressure - 700 bar
  • - Minimal pressure - 20 bar
  • - pressure cord length - 1.8 m
  • - Safety valve - So
  • - Dimensions (DXSXW) - 249 x 15 x 21 cm
  • - weight - 9 kg
  • - Dimensions of shipment (DXSXW) - 66 x 19 x 18 cm
  • - shipping weight - 10.3 kg

Included:
  • - Hand hydraulic pump
  • - Hose (1.8 m)

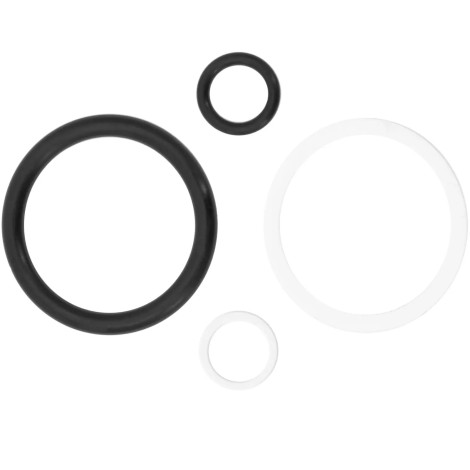

  • - Accessory set
MSW
1026509

Data sheet

Kod producenta
1026509
