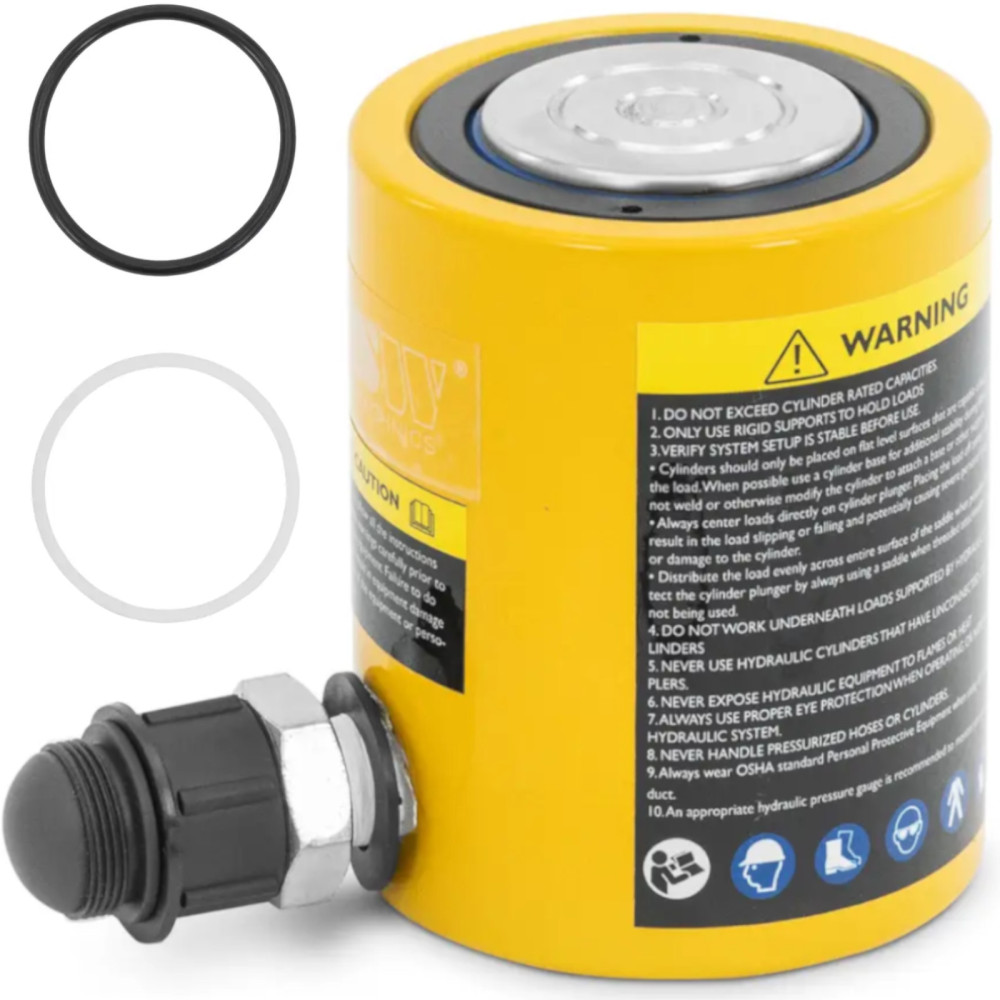

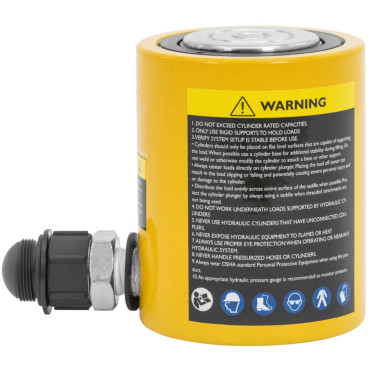

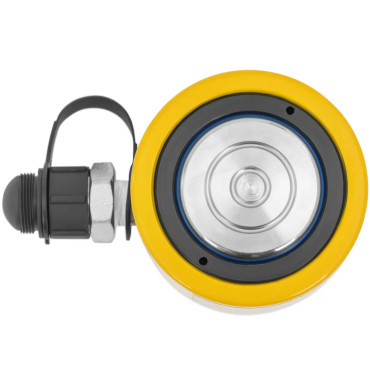

Hydraulic cylinder 106 mm pitch 50 mm 20 t

Manufacturer's code: 10062827

Exceptionally flat hydraulic hydraulic actuator MSW With only 106 mm height and a piston stroke 50 mm is an ideal solution for working under limited conditions. The hydraulic cylinder offers an impressive load capacity: a piston with a diameter of 50 mm will force 20 t. The hydraulic actuator of one-sided action will precisely raise and withdraw the piston with a working pressure of up to 700 bar, which makes it extremely versatile. It will work in construction, industry or other demanding tasks. 3/8 '' (NPT) connector for a quick and secure connection will allow various hydraulic equipment. This will limit this downtime and simplify integration with existing hydraulic systems. High-quality steel pump has a protective coating. It corresponds to excellent resistance to wear and corrosion even in demanding conditions. The hydraulic actuator is also equipped with two gaskets that provide additional safety and durability - ideal for intense high-pressure uses.

Product features:

• - an extremely flat hydraulic actuator with a height of only 106 mm and a 50 mm stroke is ideal for operation in tight places,
• - hydraulic cylinder capacity 20 t on a piston with a diameter of 50 mm,
• - hydraulic actuator of one-sided action up to 700 bar to many tasks,
• - hydraulic piston has a corrosion-resistant surface that protects against environmental influences and extends life,
• - Fast and secure installation of the hydraulic actuator thanks to 3/8 "(NPT) threaded.


Technical parameters:

• - catalog number - 10062827
• - article - New
• - Model - MSW-Hjs-hc20
• - Material - Alloy steel, powder coated steel
• - Color - Yellow
• - load - 20 t
• - jump height [mm] - 50
• - head diameter [mm] - 50 mm
• - connector type - 3/8 '' NPT
• - Working surface [cm] - 33,16
• - oil tank capacity - 170 ml
• - stroke - 50 mm
• - Maximum working pressure - 700 bar
• - Cylinder height - 106 mm

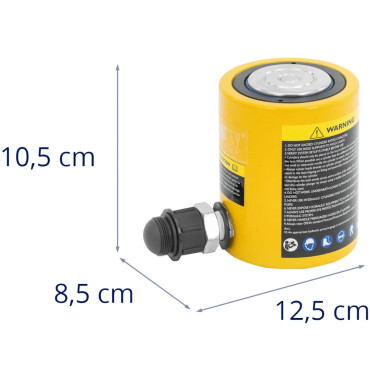

• - Dimensions (DXSXW) - 12.5 x 8.5 x 10.5 cm
• - weight - 3.95 kg
• - Dimensions of shipment (DXSXW) - 17 x 13 x 11 cm
• - shipping weight - 4.6 kg

Included:

• - hydraulic actuator

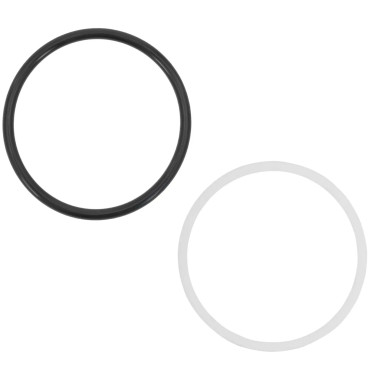

• - 2 gaskets
