Table veneer for edge of wood furniture PVC ABS veneer 0.3-3 mm 5 m / min 2020 W

€1,159.96
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062922

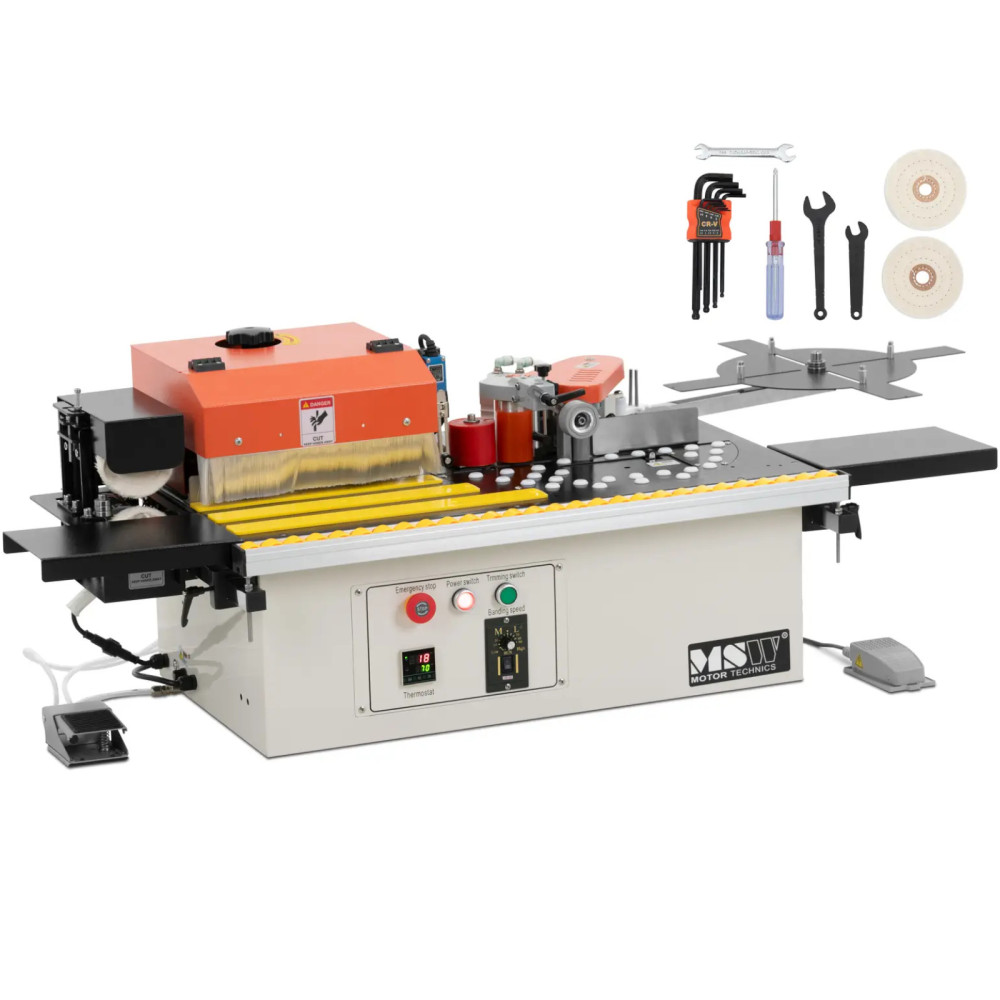

Mobile trap brand MSW They will ensure the freedom to implement projects in different places. Thanks to a smooth adjustable feed speed from 0.5 to 5 m / min It guarantees the best results without shifting material and alignment errors. Another advantage is easy to handle using the attached foot pedal. Furniture jackflug shops straight edges or curved with a thickness of 0.3 to 3 mm on both sides. The integrated trimming function will reduce the number of patches and accelerate machining. Thanks to the adjustable temperature of five heaters, the veneer will provide optimal gluing of different edges. Depending on the material, you can select a working temperature from 120 to 200deg C. This will prevent the periphery damage due to overheating or weak adhesion due to too low temperatures. The integrated display will ensure full control. This allows you to process a wide range of materials such as wood, veneer, PVC, ABS or melamine, as well as different adhesives in optimal conditions.
Product features:
  • - a portable veneer allows you to work in different locations,
  • - feeding of the veneers in the range from 0.5 to 5 m / min will provide precise results and the foot pedal will simplify the service,
  • - Furniture plates shelves straight or curved with a thickness of 0.3 to 3 mm on both sides,
  • - 2020 W jack up is quickly ready for operation and the trimming function minimizes the number of patches,

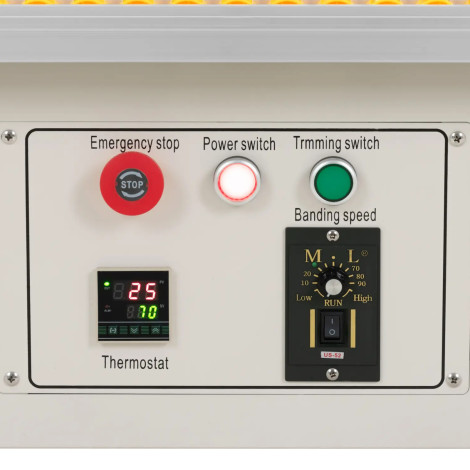

  • - The veneer has a display that allows precise adjustment of 5 heaters in the range 120 - 200DEG C.

Technical parameters:
  • - catalog number - 10062922
  • - article - New
  • - Model - MSW-Edge-d00x3
  • - frequency [Hz] - 50/60
  • - Gluing method - Bonding
  • - Material - Aluminum alloy, powder coated steel
  • - Color - Black, orange, white
  • - Tension [V] - 220 - 240
  • - Speed [m/min] - 0.5 - 5
  • - power [W] - 2020
  • - Width of the outskirts [mm] - 10 - 50
  • - veneer thickness [mm] - 0.3 - 3
  • - thickness of the workpiece [mm] - 9 - 60
  • - Working pressure [bar] - 4 - 6
  • - Work temperature range [deg C] - 120 - 200
  • - Minimum length of the material workpiece [mm] - 200
  • - Minimum width of the material workpiece [mm] - 80
  • - Dimensions (DXSXW) - 85.5 x 157.5 x 48.5 cm
  • - weight - 59 kg
  • - Dimensions of shipment (DXSXW) - 91 x 54 x 64 cm
  • - shipping weight - 77.5 kg

Included:
  • - edge jacket
  • - feeder
  • - Foot pedal
  • - 2 power fuses
  • - Mounting accessories
