Manufacturer's code:

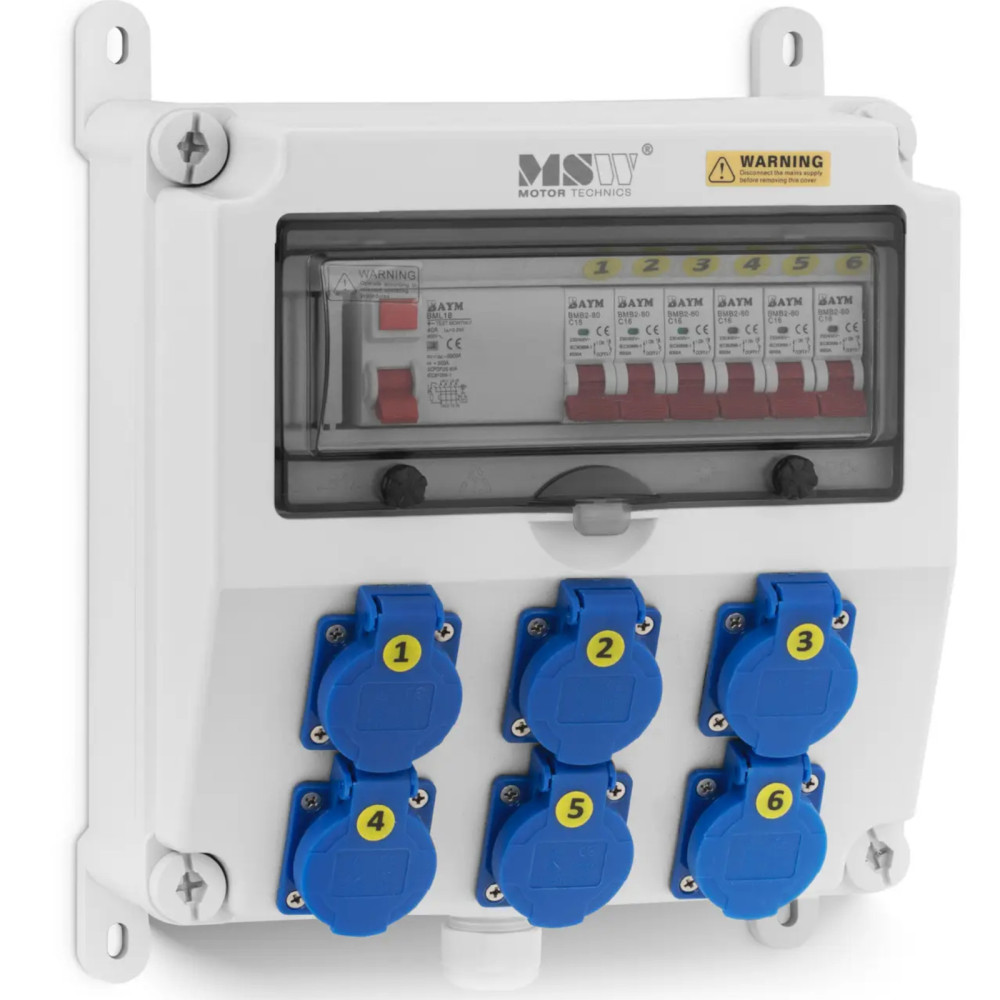

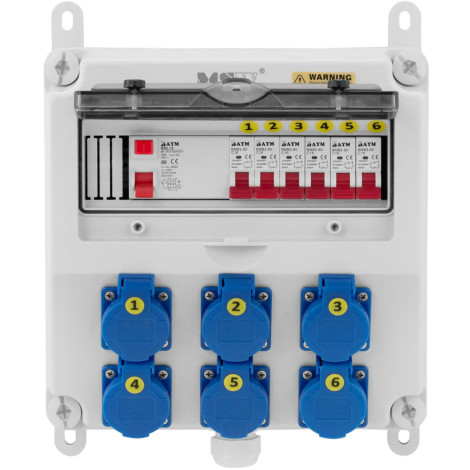

10062621Brand electrical switchgear MSW It offers a versatile solution for a wide range of requirements. It was equipped with
Six SCHUKO sockets, Differential current circuit breaker and six installation switches. They comprehensively meet the power and safety needs. The box is suitable not only for the distribution of electricity, but also to secure circuits, organize and secure cables and separating various installations. It was made of high quality ABS plastic, which is very durable, durable, tight and resistant to moisture. The self-closing hinged cover and a waterproof plastic switch cover provide additional security. Degree of protection
IP65 for housing and IP44 for sockets Provides reliable protection against dust and water. This means that it can also be used in demanding conditions. It will work both inside and outside. It is particularly well suitable for use on construction sites. The practical design of the electrical switchgear with several mounting holes makes it easier to attach it to the wall.
The wall switchboard offers:-
6 Schuko slots (230 V, 16 A, blue, ABL, IP54)
-
Differential current circuit breaker (40 a, 30 mA, 5-pin)
-
6 installation switches (1P LS C16 A)
Product features: - - 6 SCHUKO sockets, Differential cutter and 6 installation switches,
- - suitable for distribution of power, to protect circuits, organize and secure cables and separating different installations,
- - the ability to use the switchgears in rooms and outside, for example for use on construction sites,
- - the surface switched switched switched with high-quality ABS material with an IP65 protection (housing) and IP44 (sockets),
- - has several assembly holes to facilitate attaching to the wall.
Technical parameters: - - catalog number - 10062621
- - article - New
- - Model - MSW-Wpd-6v
- - Material - ABS, PP, steel, copper, PA66
- - Color - Gray
- - Tension [V] - 220
- - IP protection degree - Ip65
- - attached cap - 3-pin / 5-pin
- - operating temperature range [deg C] - -35 - 40
- - Dimensions (DXSXW) - 34.5 x 27.5 x 16.3 cm
- - weight - 3.22 kg
- - Dimensions of shipment (DXSXW) - 30.5 x 31 x 20.6 cm
- - shipping weight - 3.84 kg
Included:
