Manufacturer's code:
10062372Roller tray
MSW with an adjustable height with
17 rollers and
200 kg lifting, allows you to transport various objects. Thanks to a stable structure, it is ideally suited as a workshop equipment or warehouse. It also works in forwarding and logistics processes. The device moves the goods safely and comfortably after rollers into distance
102.5 mm. Lift with lifting capacity
200 kg And a solid steel structure, heavy objects transported. Rolling table has a length
178 cm And suitable for medium-length routes. In the case of very high distances on halls or warehouses, several feeders can be combined. Adjustable height in the range

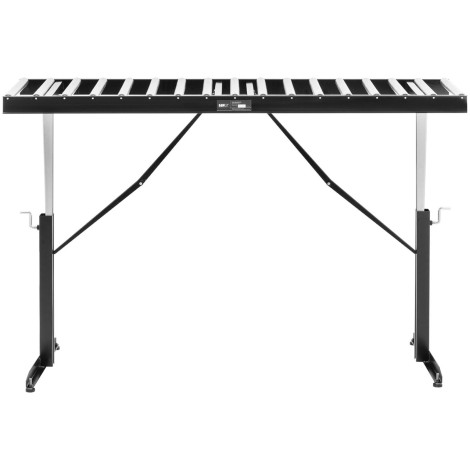

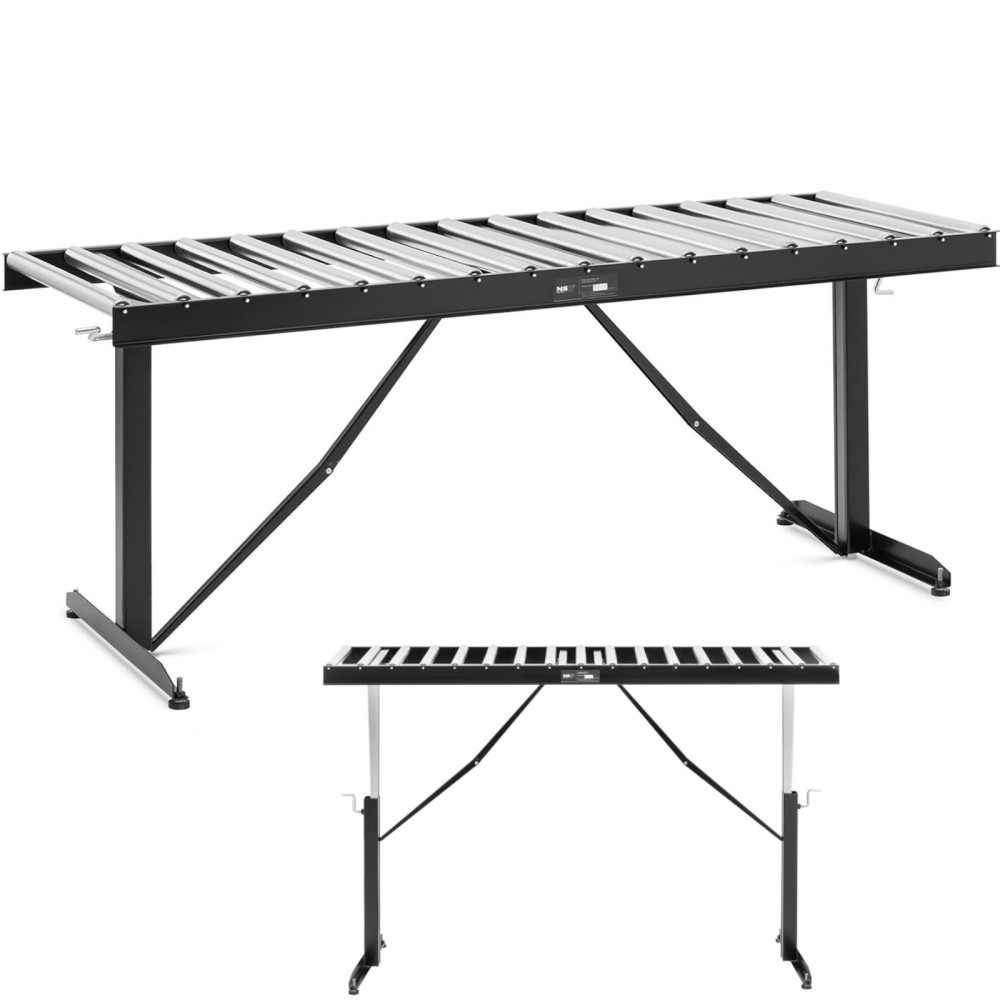

67-120 cm With two hand cranks, it facilitates the adjustment of the conveyor to different needs. Transport table can be easily folded and hide what it saves a place.
Product features: - - high load capacity up to 200 kg,
- - 17 rollers and working length 178 cm,
- - adjustable working height 67-120 cm,
- - expansion possibility for subsequent feeders,
- - Solid steel construction in powder coating.
Technical parameters: - - catalog number - 10062372
- - article - New
- - Model - MSW-Rt-610t17
- - Material - Plastic, Powder-painted steel
- - Distance between rollers [mm] - 102.5
- - Color - Black, Silver
- - height [cm] - 67-120
- - load capacity [kg] - 200
- - Number of rollers [szt.] - 17
- - Roll dimensions [mm] - 540 x 35
- - Dimensions (DXSXW) - 178 x 67 x 62 cm
- - weight - 30 kg
- - Dimensions of shipment (DXSXW) - 175 x 66 x 18 cm
- - shipping weight - 35.5 kg
Included: - - Roller tray
- - frame
- - 2 Wedges
- - 2 external legs
- - 2 struts
- - 2 leg clamps
- - 2 hand cranks
- - 17 rolls
- - 2 hinges
- - 4 slings
- - 28 screws
- - 28 nuts
