Manufacturer's code:

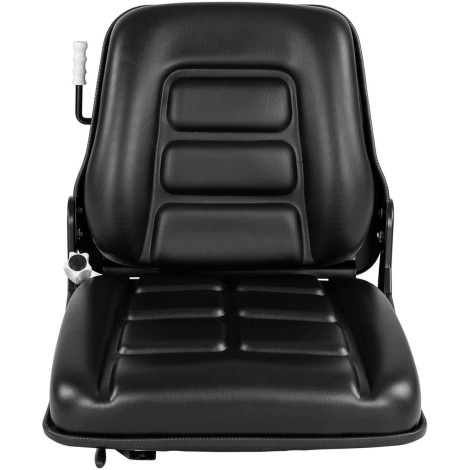

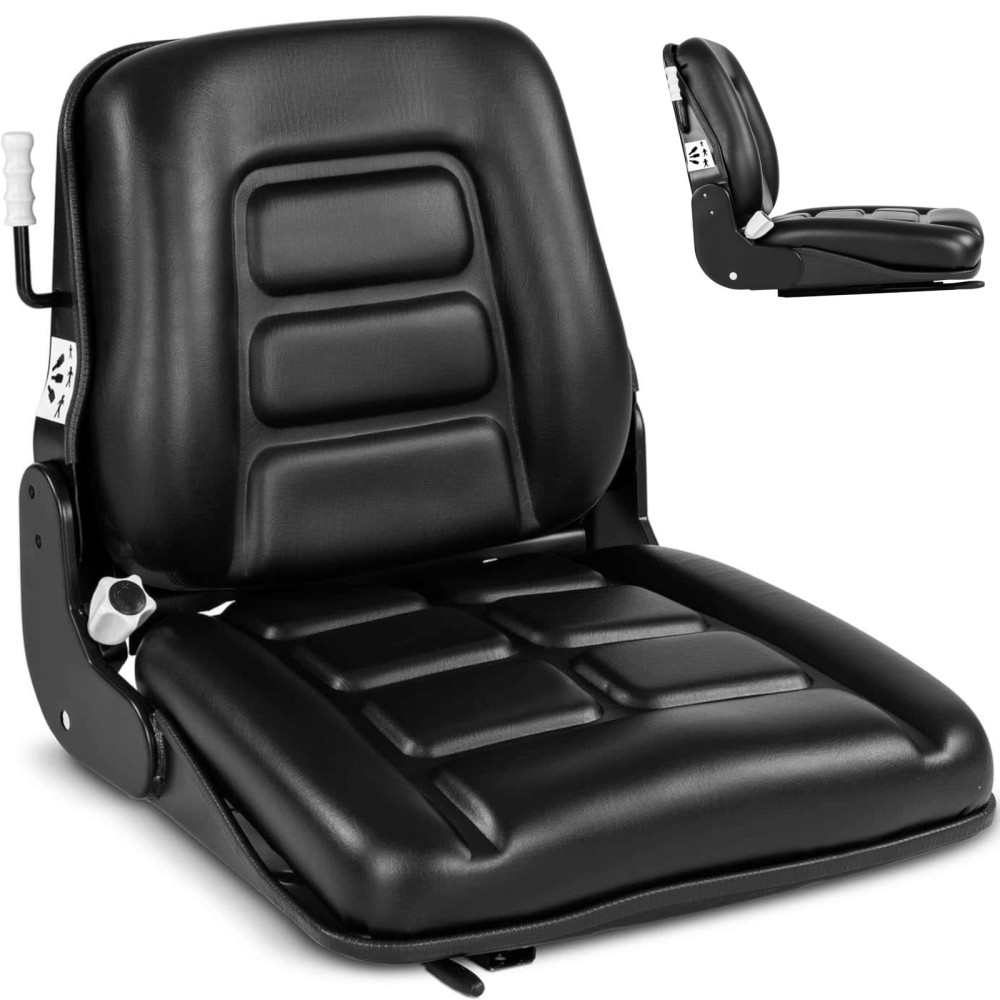

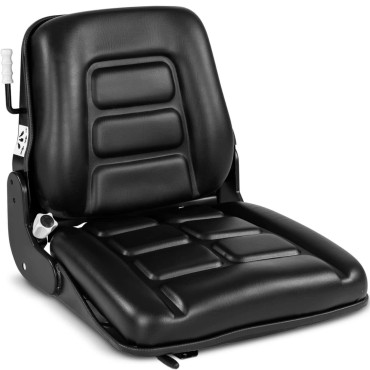

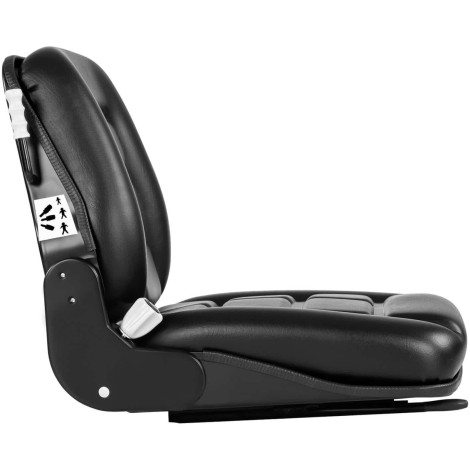

10090292Seat to the brand tractor
hillvert It offers comfort even on long distances. Solid performance makes it ideal for tractors and mowers, as well as forklifts and other machines. The chair should be replaced after about
1000 Working hours. Thanks to the universal and easy assembly, it can be replaced efficiently and quickly. Foam lining retains its shape also under a high load. Seat with dimensions
46 x 42 cm and lifting
120 kg Provides comfort even after many applications. The frame design is made of steel, which guarantees a long life service. Area
PVC It is extremely durable, waterproof and at the same time easy to clean. The entire seat can be moved forward or backwards
15 cm and set the backrest for an angle
7DEG ± 3DEG .
Product features: - - the model is characterized by an exceptionally wide and well-padded seat,
- - durability, thanks to a solid steel frame and seat with PVC,

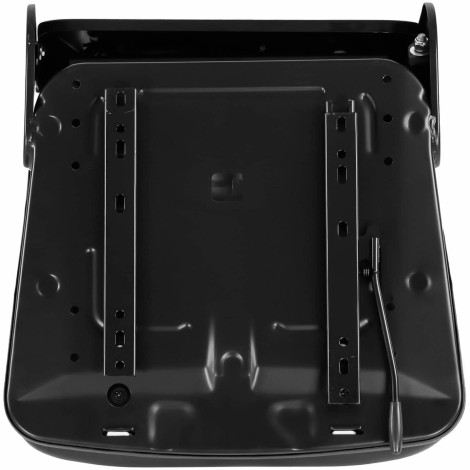

- - ideal for tractors, mowers, forklifts, etc. with appropriate dimensions of the mounting plate 23 x (28 ~ 28.5) cm,

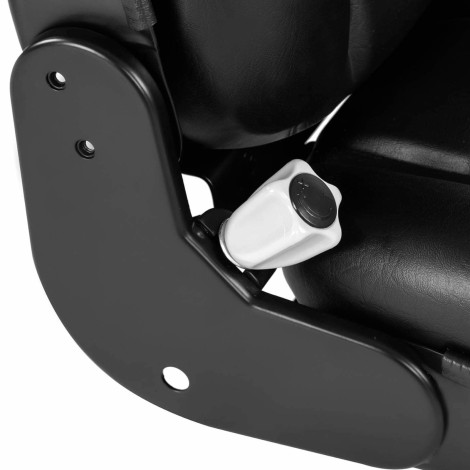

- - adjustment by 15 cm of spacing and tilting the backrest,
- - Simple operation, assembly and adjustment.

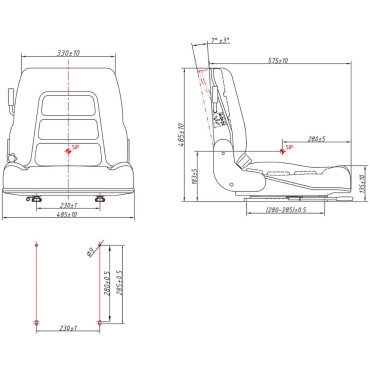

Technical parameters: - - catalog number - 10090292
- - article - New
- - Model - Ht-rundle-15
- - Material - PVC, steel, foam
- - Height of the back [cm] - 38
- - adjustment of the backrest deviation [deg ] - 15
- - longitudinal regulation [cm] - 15
- - Maximum load [kg] - 120
- - Dimensions of the mounting plate [cm] - 23 x (28 ~ 28.5)
- - Seat dimensions [cm] - 46 x 42
- - Dimensions (DXSXW) - 45 x 54 x 49 cm
- - weight - 12.3 kg
- - Dimensions of shipment (DXSXW) - 55 x 51 x 51 cm
- - shipping weight - 13.9 kg
Included: - - Seat to the tractor
- - User manual
